Description:

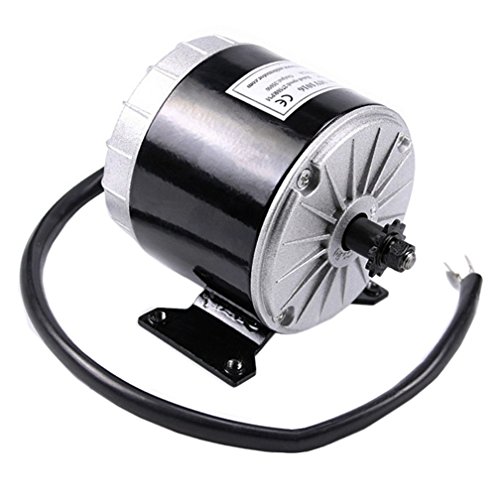

This is a reliable universal 24VDC 350w brushed electric motor and controller set designed to provide efficient power for various small electric vehicles.

• Power Output: 350W
• Rated Voltage: 24V DC
• Rated Speed: 2650 to 2950 RPM
• Horsepower: 0.48HP
• Sprocket: 11 tooth sprocket for 25H chain
• Rated Current: 19.1A
• No load current: less than or equal to 2.2A
• Peak Efficiency at 24V: 80 percent
• Reversible: Capable of rotation in either clockwise or counterclockwise direction by reversing power wires
• Controller Conversion Efficiency: 95 percent
• Under Voltage Protection: 20 plus or minus 0.5V
• Speed Regulator Throttle: 1 to 4 V
• Material: Metal
• Dimensions: 83mm length, 66mm width, 38mm height
• Compatibility: Suitable for go karts, scooters, e bike, atv, motorized bicycle, moped, mini bikes, pocket bikes and electric dirt bikes
• Controller Connectors: 8 connectors including Battery, Motor, Brake, Brake light, Indicator light, Ignition lock, Charger port and Derailleur throttle
• Package Includes: 1 Motor and 1 Controller
