Description:

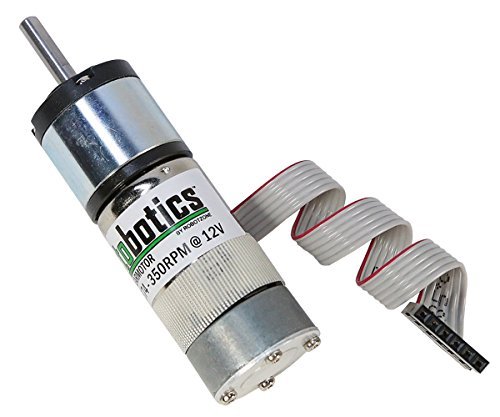

Ball Bearing, Full Metal Gears, Planetary, 4mm D-Shaft, 3 PPR Magnetic Encoder, and 6-pin JST Connector Compatible with the following; Motor hub mount # 555172, 22mm Swivel Clamping Motor Mount # 555148, 4mm to 1/4 shaft coupler # 625118, Hub sprockets, our Power input boards and more.. Operating Specifications: Operating Voltage Range: 312VDC Rated Voltage: 12VDC Rated Load: 1.6 kgf-cm (22.22 oz-in) Operating Temperature: -10 +60C Max No-Load Current: 0.26A No-Load Speed: 350 RPM Min. Stall Torque: 5.7 kgf-cm (79.16 oz-in) Max. Stall Current: 9.7A @ 12VDC. Dielectric Strength: 250 VAC Motor Brush Type: Graphite Output Power at Max. Efficieny: 4.9W Gear Type: Planetary Gear Ratio: 43:1 Bearing Type: Dual Ball Bearing Shaft size: 4mm (0.1575) Net Weight: 92g (3.25oz) Pulse Per Revolution: 3. Note: Stall Torque is the torque which is produced by a motor when the output rotational speed is zero, it may also mean the torque load that causes the output rotational speed of a motor to become zero - ie to cause stalling.. Electric motors continue to provide torque when stalled. However, electric motors left in a stalled condition are prone to overheating and possible damage since the current flowing is maximum under these conditions..
