Description:

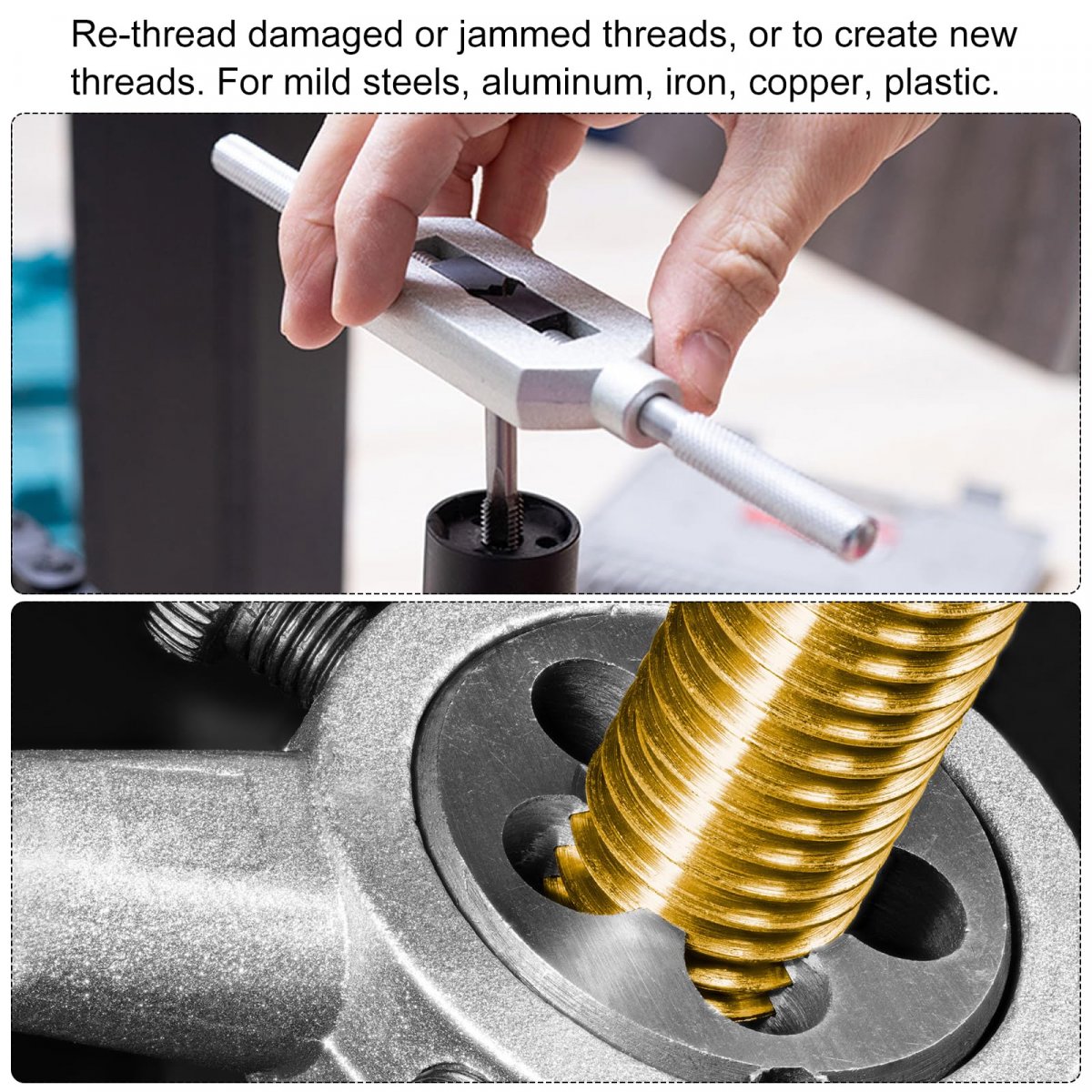

Hand Tap & Die Set: Tap Size: Thread Size: M12 x 1 (Right Hand); Square Shank Width: 7mm / 0.28"; Thread Length: 32mm / 1.26"; Total Length: 73mm / 2.87"; Accuracy: H2. Die Size: Thread Size: M12 x 1 (Right Hand); Outside Diameter: 38mm / 1.5", Thickness: 10mm / 0.39". Features: Taper Tap: Start the thread and guide it into the workpiece. Bottom Tap: Generate threads close to the bottom of a blind hole. Straight flute tap provides fast downward chip removal. Round die is designed with conical locking hole, strong locking and not loose.. Wide Applications: The metric tap and die set can re-thread damaged or jammed threads, or to create new threads. Suitable for tapping through or shallow holes in mild steels, aluminum, iron, copper, hard plastic. The surface is lubricated with grease to prevent rust.. Easy to Use: The tap & die set is mainly for hand use (the thread tap is used with a tap wrench and the round die is used with a die stock). Apply appropriate cutting lubricant or oil during the tapping process for higher quality threads and more durable tools.. Tips: Ensure proper alignment, use proper tapping technique, and apply consistent pressure as you turn the tap to achieve clean, precise threads. Periodically reverse while tapping to break up chips and remove debris from the flutes, preventing clogging and ensuring smooth operation..
