Description:

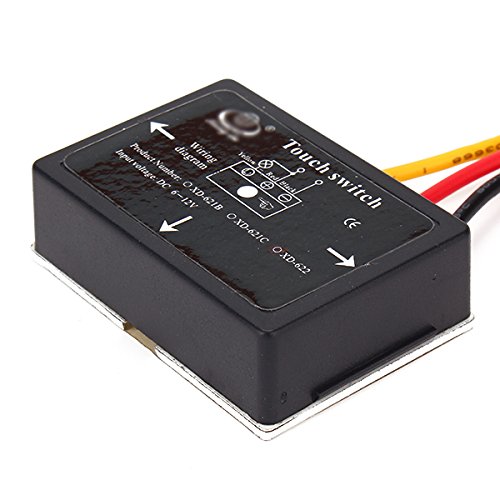

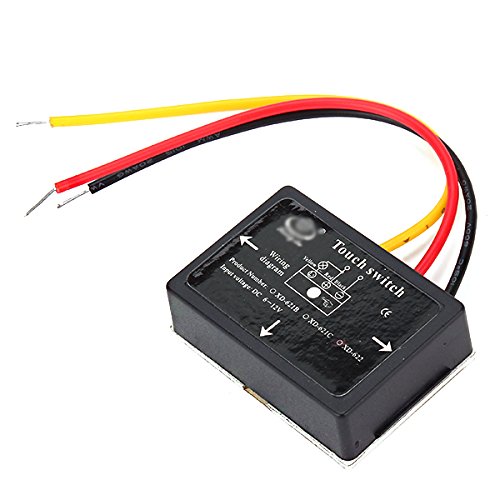

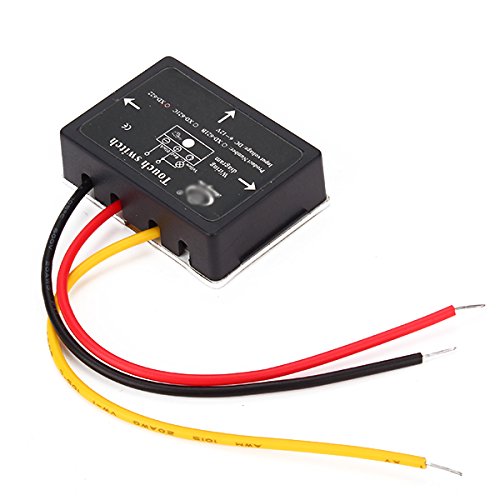

This switch is an isolated touch sensor switch,it is suitable for the led which has protection Cover such as glass, alec, plastic, pottery. no need to find where the switch is in darkness, Touch the light body, you can easily switch on or off and adjust the brightness. How to connect: 1. The red line is connected with the input positive wire. 2. The black line connect to negative input wire. 3. Then red and yellow lines connected lamps. 1. Under the circumstance of insulation protection,no need to touch the metal part directly,just can touch the glass to let the switch work,with the characteristic of safety,no mechanical wear,cant see any switch parts in front of the mirror after 2. It has background light for the touch switch board,its incorporated,when the connector power with the switch,the background light of the switch board will be on,and its also normally on. 3. This touch switch applies to the lamp with metal body,and the lamp-house comes from the led lamps,when the human touch the any parts of the metal lamp body,it will meet the following requirement:(3 levels: low,medium,high and then off): A. touch one time: the lamp will be in low light; B. touch again: the lamp will be in medium light; C. touch one more time: the lamp will be in high light; D. touch again: the lamp will be off. Operating voltage: dc6v to 12v Load power: less than or equal 36w Model: xd-621c Size: 49 x 34 x 15mm or 1. 92 x 1. 33 x 0. 59inch Package included: 1 x Bathroom mirror on/off touch switch Model # Z12 Features: This switch is an isolated touch sensor switch,it is suitable for the led which has protection Cover such as glass, alec, plastic, pottery. no need to find where the switch is in darkness, Touch the light body, you can easily switch on or off and adjust the brightness. Operating voltage: dc6v to 12v Load power: less than or equal 36w Model: xd-621c Size: 49 x 34 x 15mm or 1. 92 x 1. 33 x 0. 59inch.
