Description:

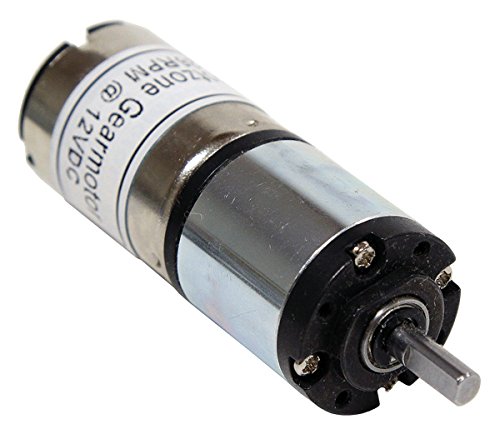

The 416 RPM Precision Planetary Gearmotor is a powerful and compact motor designed for a wide variety of high precision applications.

• Rated Voltage: 12VDC
• Operating Voltage Range: 3 to 12VDC
• No Load Speed: 416 RPM
• Gear Ratio: 19 to 1
• Gear Type: Planetary with full metal gears
• Bearing Type: Dual ball bearing
• Shaft Size: 4mm D Shaft
• Rated Load: 0.6 kgf cm or 8.33 oz in
• Min Stall Torque: 2.6 kgf cm or 36.12 oz in
• Max Stall Current: 3.1A at 12VDC
• Max No Load Current: 0.12A
• Output Power at Max Efficiency: 2.2W
• Operating Temperature: -10 to +60 degrees C
• Motor Brush Type: Graphite
• Dielectric Strength: 250 VAC
• Compatibility: Works with motor hub mount 555172, 22mm swivel clamping motor mount 555148, and 4mm to 1/4 inch shaft coupler 625118
