Description:

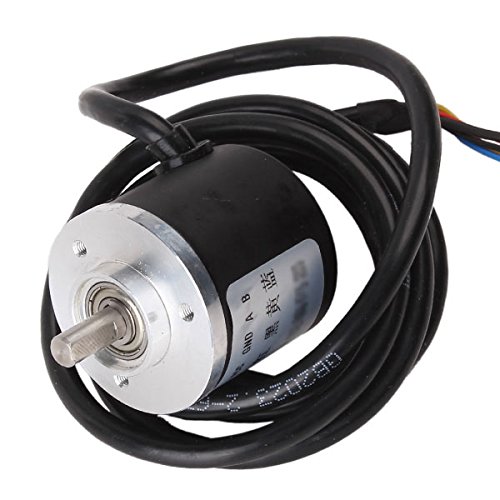

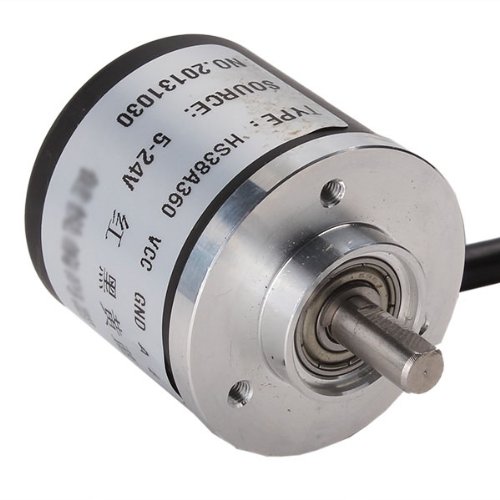

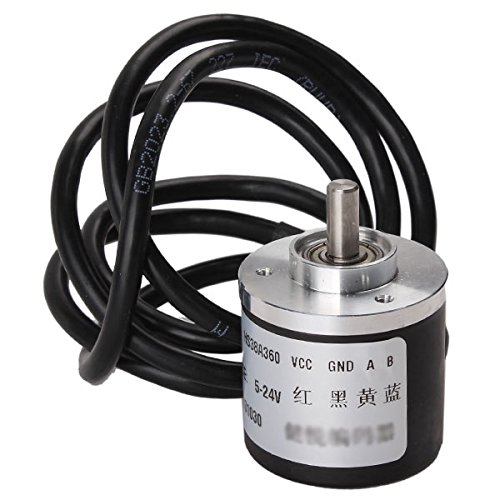

Features: 360 p/r (Single-phase 360 pulses /R,Two phase 4 frequency doubling to 1440 pulses). For measuring goods angle, acceleration, length measurements and the rotational speed Fit for a variety of displacement measurement intelligent control,measuring height of civilian body scale and so on. Small size and light weight, easy to install, cost-effective features. Connection: Yellow = A phase, Blue = B phase, Red =Vcc power +, Black = power - Notice: AB 2phase output must not be directly connected with VCC, otherwise, will burn the output triode. Specifications: DC5-24V wide voltage power supply Speed: more than 5000 r / min Shaft: 6mm/0. 23" Dia, 13mm/0. 51" Length Size: 39mm/1. 53" Dia, 36. 5mm/1. 43" Length Output: AB 2phase output rectangular orthogonal pulse circuit, the output for the NPN open collector output type Package includes: 1 x Encoder 360P/R Incremental Rotary Encoder Features: DC 5-24V wide voltage power supply Speed: more than 5000r / min Shaft: 6mm/0. 23" Dia, 13mm/0. 51" Length.
