Description:

The 9/16 18 UNF Tap and Die Set provides a professional solution for creating or repairing right hand machine threads. This set ensures fast chip removal and high precision for various metalworking applications.

• Tap Size: 9/16 18 UNF
• Cutting Direction: Right Hand
• Tap Material: High Speed Steel 6542
• Die Material: Alloy Tool Steel

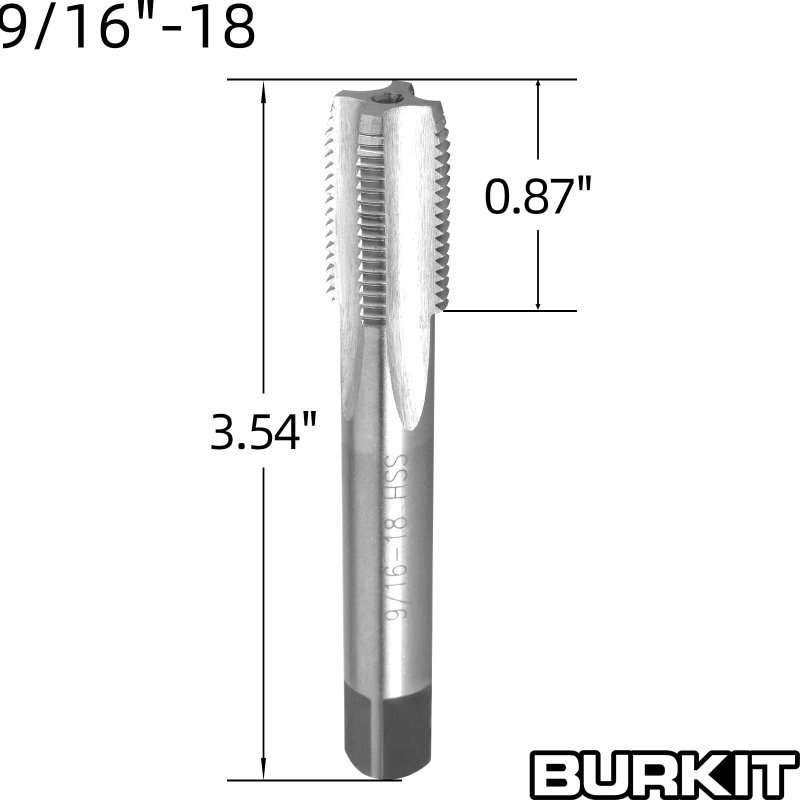

• Tap Dimensions: 3.54 inch length, 0.87 inch thread head, 11.2mm shank diameter, 9mm by 9mm square head

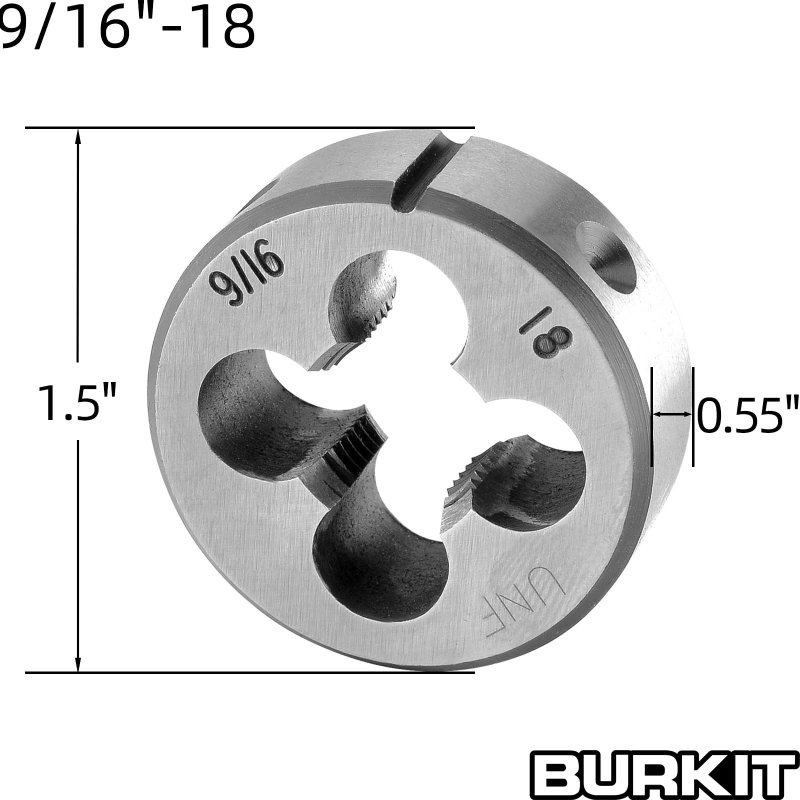

• Die Dimensions: 1.5 inch outer diameter, 0.55 inch thickness
• Accuracy Class: 2B for taps and 2A for dies
• Thread Pitch: 18 TPI

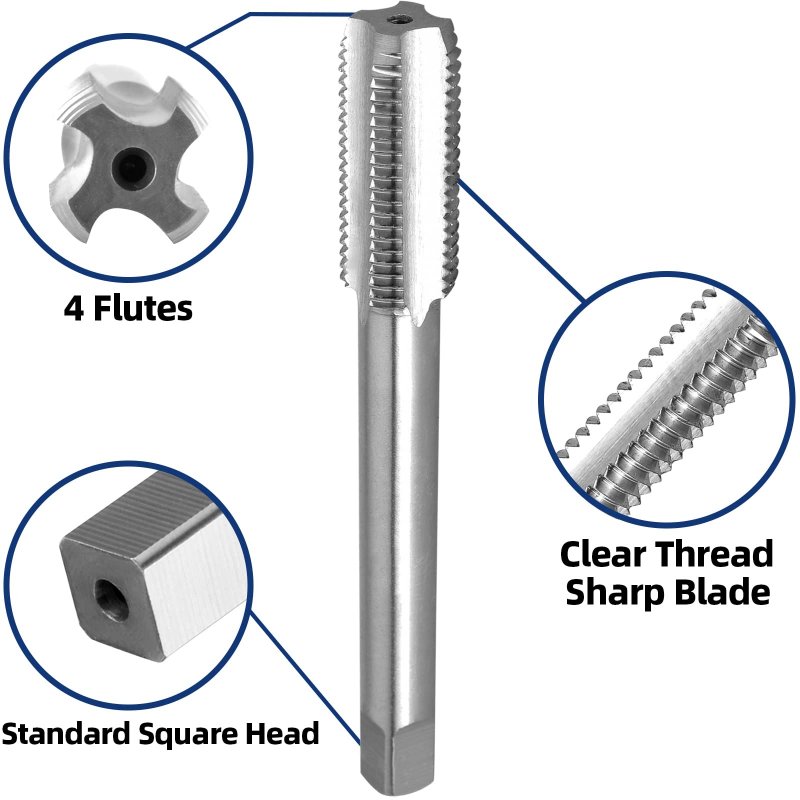

• Design: Straight fluted for efficient chip removal and faster machining
• Compatible Materials: Cast iron, copper, brass, abrasive steel, A3 steel, and aluminum
• Applications: Suitable for through holes, shallow blind holes, and external thread repair
• Usage: Compatible with tapping machines, integrated bench drills, CNC lathes, machining centers, or manual operation
• Recommended Feed Rates: Hard steel 5 to 10 meters per minute, cast iron 8 to 10 meters per minute, ordinary steel 6 to 15 meters per minute
• Set Includes: 1 piece 9/16 18 tap and 1 piece 9/16 18 die
