Description:

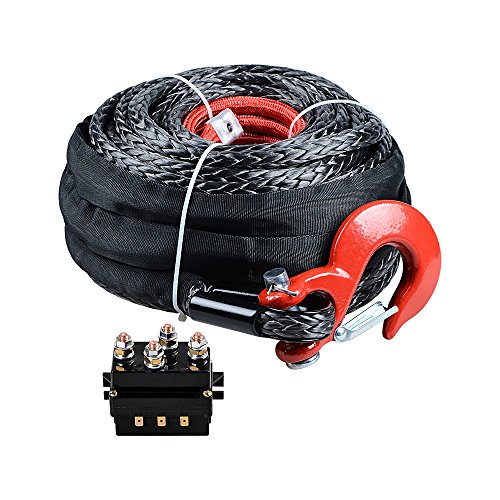

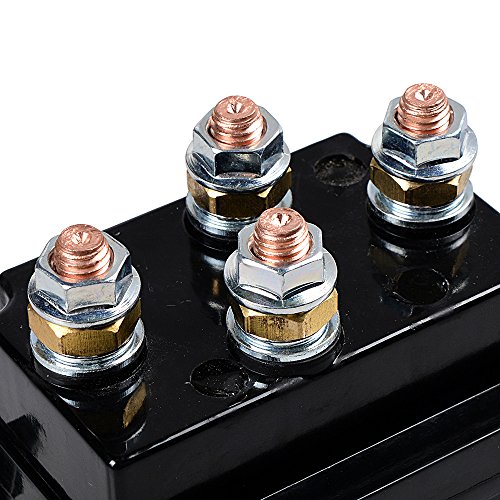

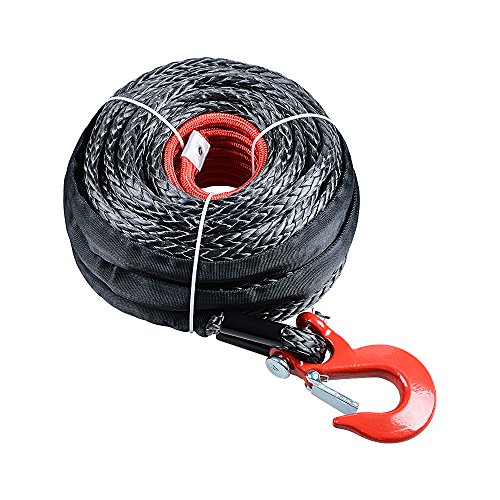

Specifications - : Total Weight: 3140g + 720g Winch Rope: Size: Length: 92 x Thickness: 1/2" Hook Size: Clevis Pin Diameter: 1/2" Breaking Strength: Max. 22,000 lbs Load Capacity: 18,500 lbs Color: Black Winch Rope + Red Hook (actual color may be little different due to photographic equipment & monitor setting) Material: Synthetic Fiber Winch + Heavy Duty Steel Winch Hook Stainless Steel Thimble For Hook Attachment (Hook is included) Upgrade Your Winch With Stronger Synthetic Winch Rope Than Traditional Steel Cables Protective Nylon sheath protects against rough or sharp surfaces such as rocks Winch Solenoid Relay: Size: Length: 3 15/64" (8. 2cm)/ Width: 2" (5. 5cm)/ Height: 3 5/16" (8. 4cm) Coil Rated Voltage : 6-110V DC Operating Voltage : 12V DC Operating Wattage : 15W Contact Circuit Voltage: 80V DC Loading Current : Max. 250V AC 500A Environment temperature : -40C - 85C Frequency : 10Hz-200Hz Acceleration : 3. 5g Speed: 60-100 per min Mechanical life: up to 100,000Ops Electrical life: up to 50,000Ops Operation Regulation: Continue Installation direction: Random Color: Black Material: ABS + Aluminum Alloy 500 Amp 12V Winch Solenoid Relay Contactor Compatible with both Wireless Remote System With Saterproof Sealed and Corrosion Resistant Case Solid Heavy Duty Construction Pre-cutting Mounting Bracket for Easy Installation into Control box. * Note: * There is a circuit switch (like a seesaw) inside the product, so when you shake the relay, there is a voice "dang dang dang " inside, it is not a defective issue Features: Package includes: 1X Synthetic Winch Rope with Protective Sleeve + 1X 3/8 inch Winch Hook + 1X 12V 500A Winch Solenoid Relay Universally fits most vehicle such as SUV ATV UTV Truck Boat Ramsey KFI with 8000lb-12000lb winch with DC 12V (series wound and permanent magnet) Included 3 Meter Heat Guard To Protect The Rope From Excessive Heat Caused By The Brake Mechanism Inside Of The Winch Drum Come With Protective Sleeve To Prevent Overheating, Slippage, Rough Or Sharp Surfaces Winch Hook is Special Design for Working on both 3/8 and 1/2 inch Winch Rope.
