Description:

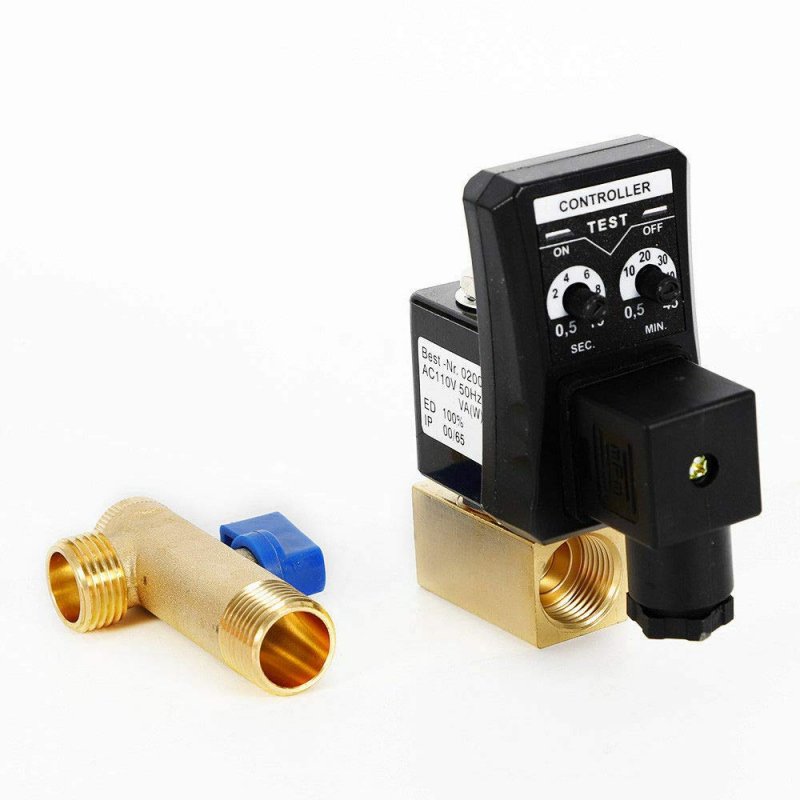

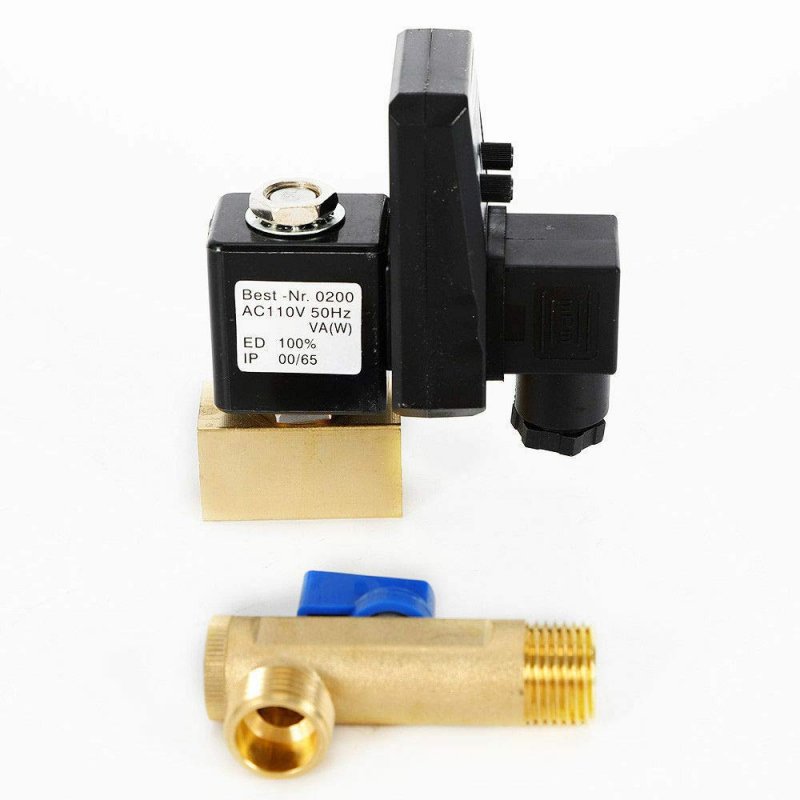

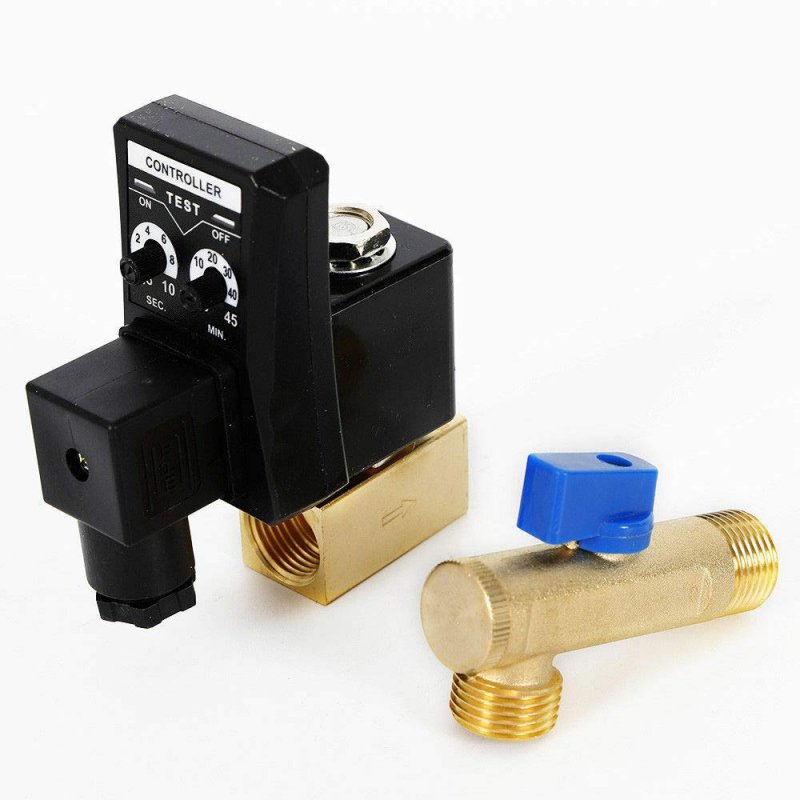

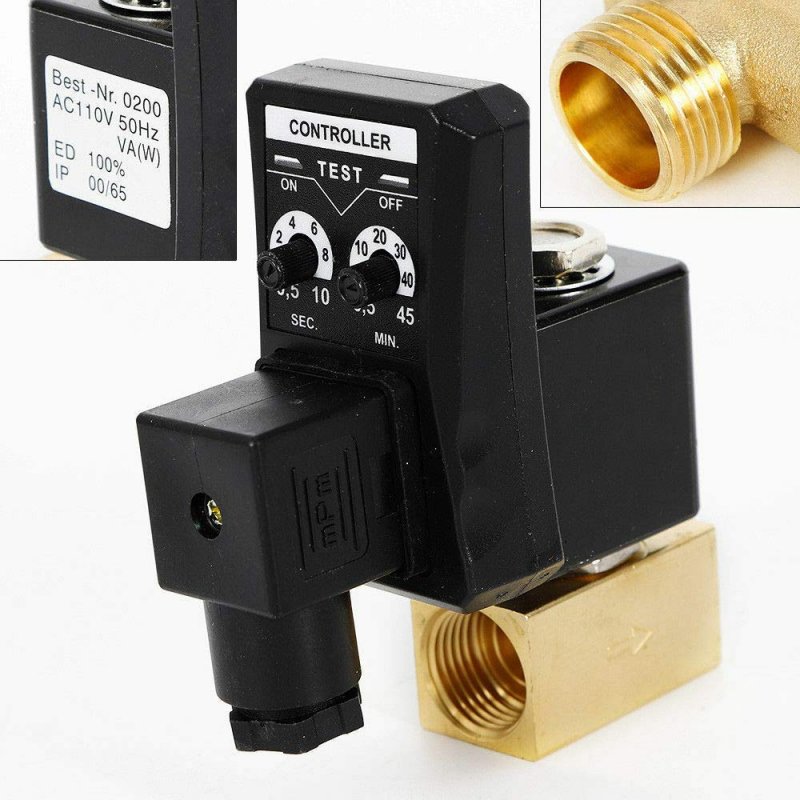

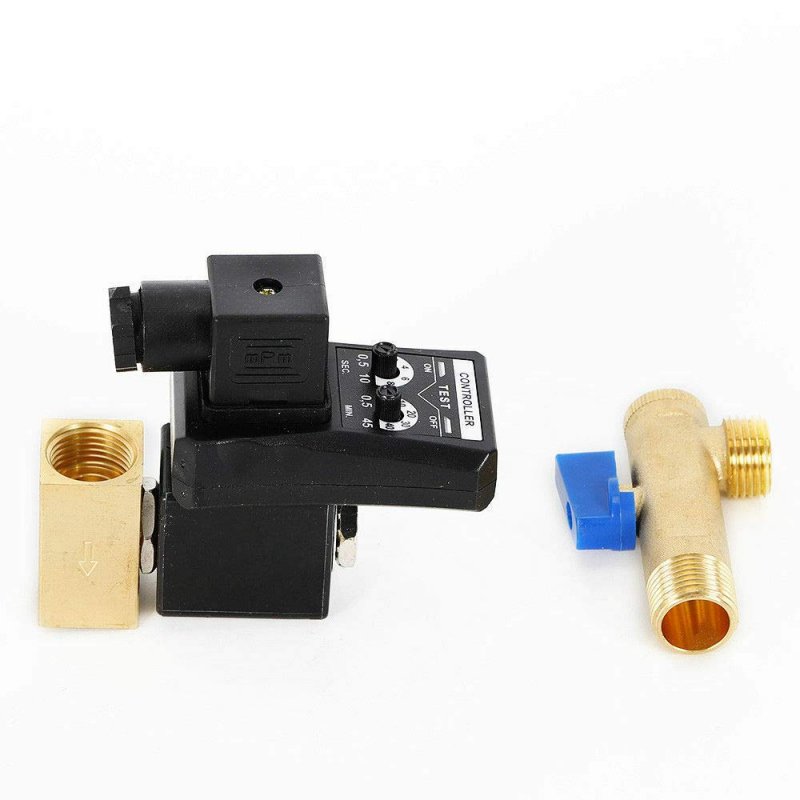

SUPERIOR VALVEAutomatic electronic timed drain valve, a reliable and condensate drain valve to keep compressed air treatment equipment running optimally. It runs automatically and reduces compressed air when draining condensate. It can be programmed to discharge condensate at regular intervals to match conditions. The valve opening time can be adjusted between 0.5 and 10 seconds with a closing time between 0.5 and 45 minutes.. FUNCTIONThe Timer Drain Valve is Used to drain water from your air tank and any other application where you want a timed operation controlling fluid to an open end.Emission time and interval time are controlable.. TIMER SETTINGLeft knob to set the discharge time, the right knob to set the interval time; the first discharge time of 2s, the interval time is 20min, and then need to be further adjusted.. INSTALLATION TIPSClean the compressed air system before installing. The factory has been connected to the cable drain valve, fade for the fire line L, blue for the zero line N, yellow and green color for the safe ground GND. The supply voltage must be the same as the drain valve voltage; when using DC, the positive pole must be connected to the connector "1".. MAIN PARAMETERS Product Name: Timing Drain Valve;Voltage: AC110V 60Hz;Voltage Range: 10%;Time Interval ( OFF ): 0.5--45 minutes (adjustable);Discharge Time ( ON ): 0.5--10 seconds (adjustable);The Current Consumption: Max 4mA;Electrical Connection: DIN43650A; Type: two-way direct-acting valve;Flow Aperture: 5 mm;Insulation Class: H;In / Out Port Size: 1/2";Maximum Working Pressure: 1.6Mpa;Maximum Temperature: 90 C.
