Description:

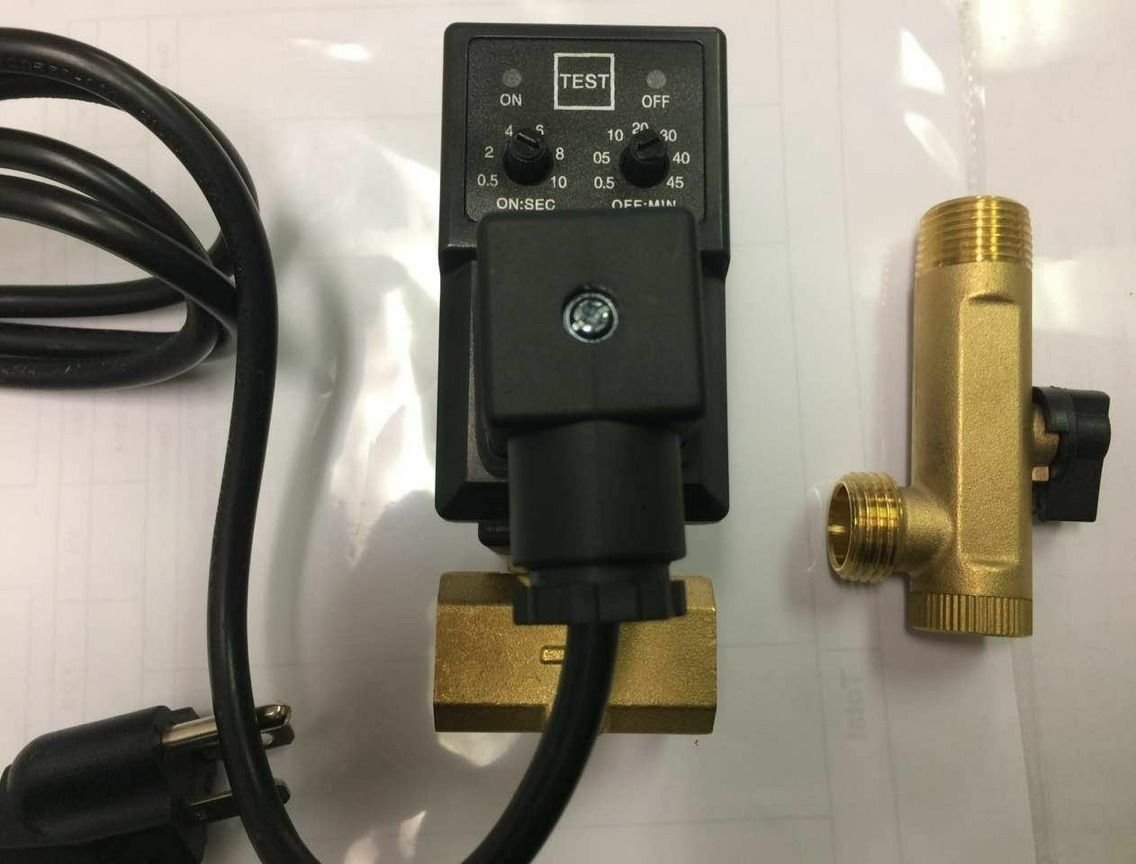

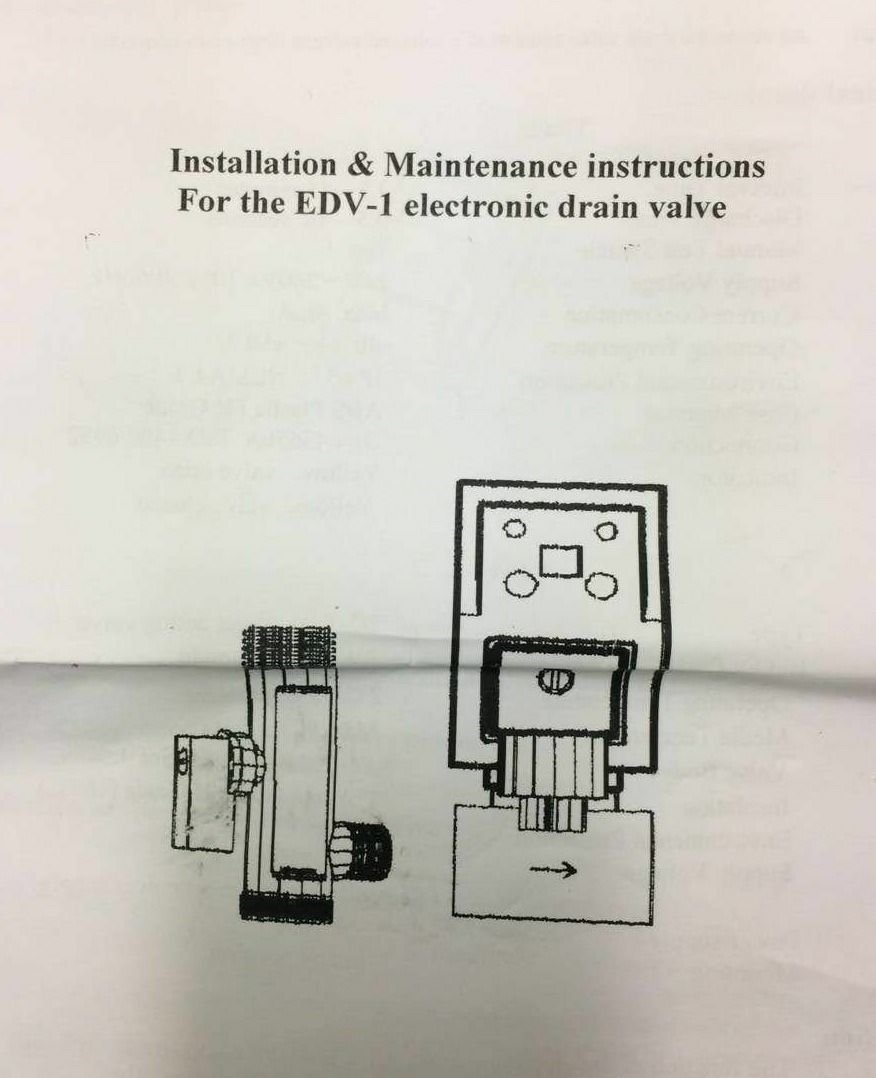

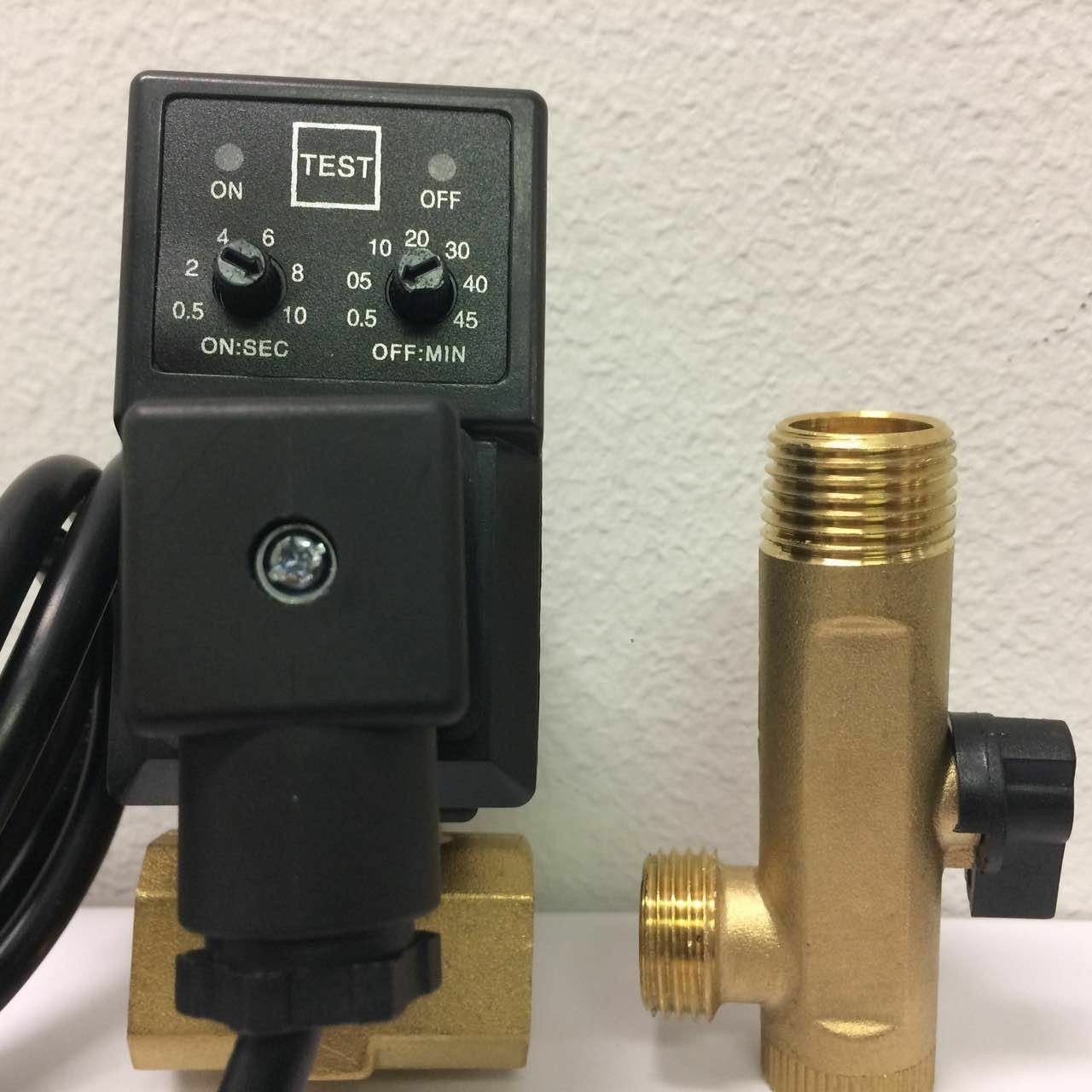

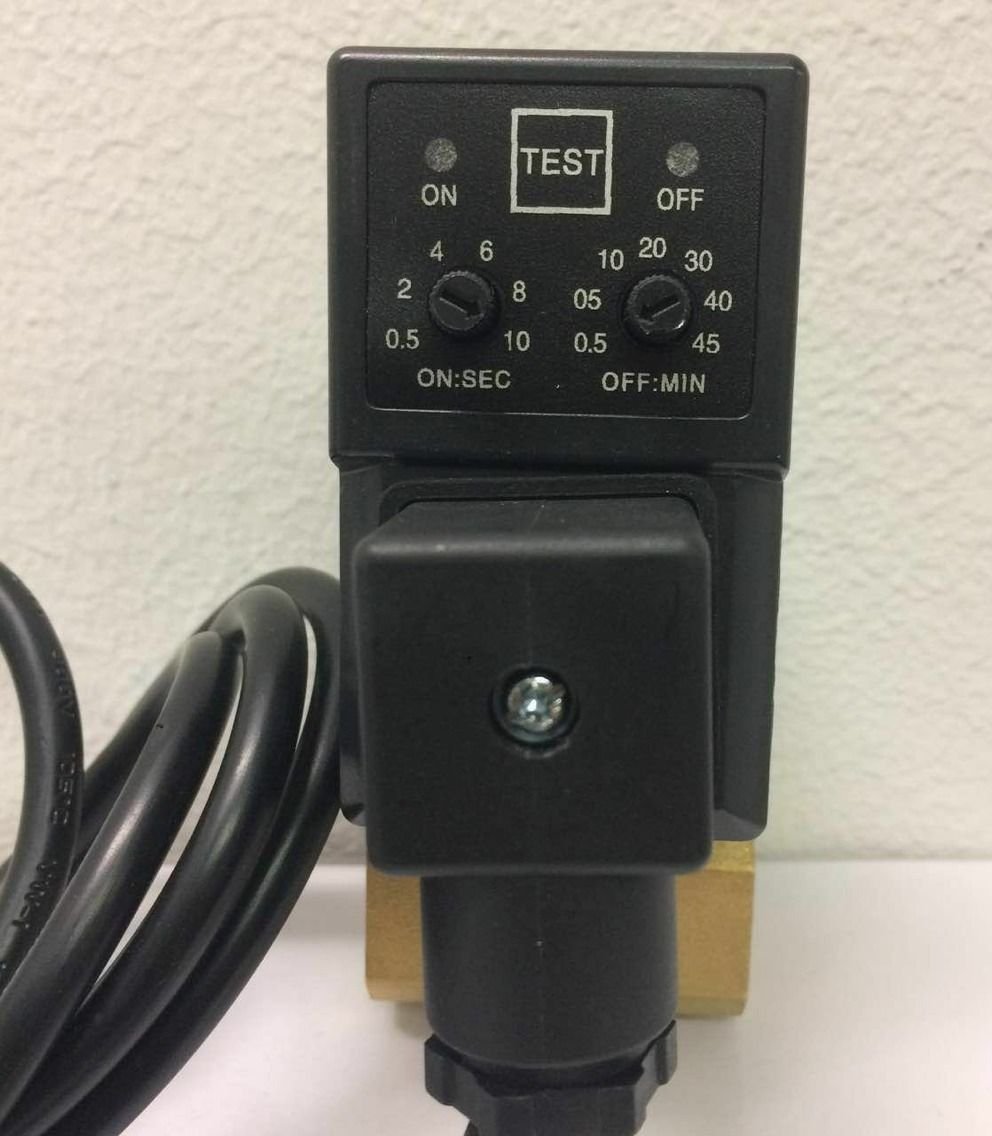

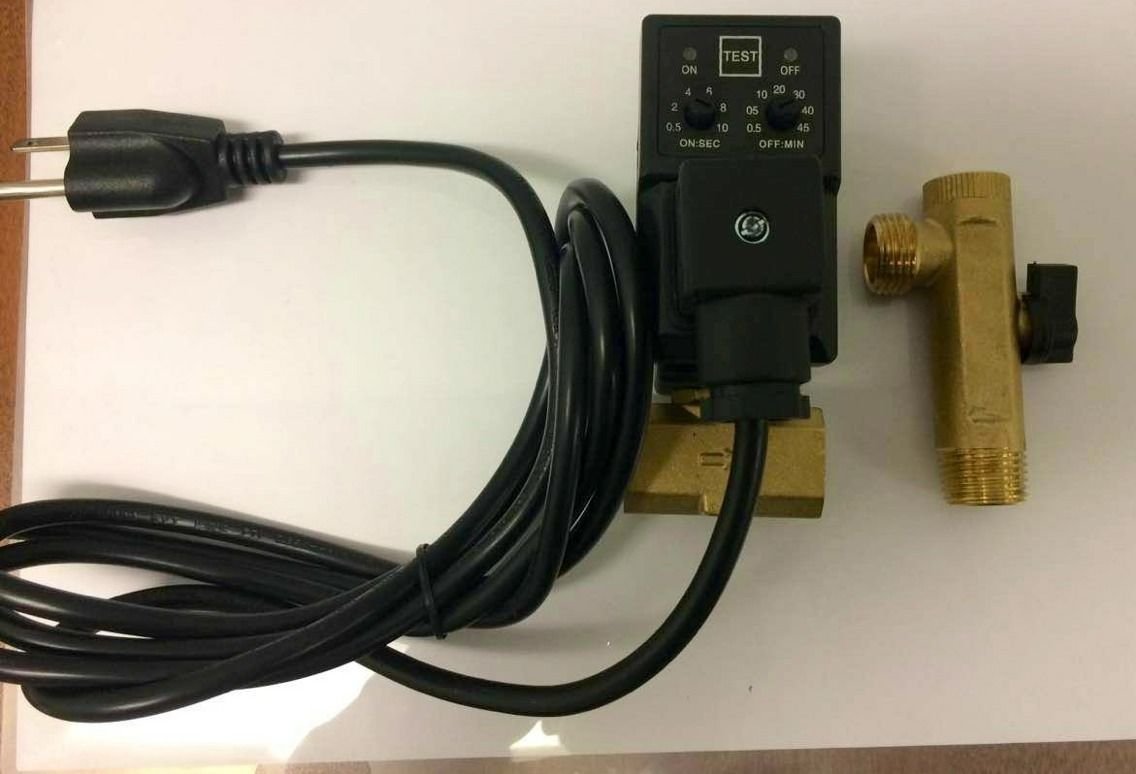

ELECTRONIC TANK MOISTURE DRAIN FOR AIR COMPRESSORS AND AIR TANKS 115 VOLT ELECTRONIC AUTOMATIC TIMER MOISTURE DRAIN FOR AIR COMPRESSORS AND AIR TANKS. THIS DRAIN CAN BE SET TO DRAIN EVERY 30 SECONDS UP TO EVERY 45 MINUTES AND THE VALVE WILL STAY OPEN FOR. 5 SECONDS UP TO 10 SECONDS, THEY ARE MOST COMMONLY SET TO DRAIN FOR ABOUT 3 SECONDS EVERY 30 TO 45 MINUTES ON AIR COMPRESSOR APPLICATIONS, THIS VALVE ALSO HAS A TEST BUTTON TO DRAIN IT MANUALLY ANYTIME. THIS DRAIN PLUGS INTO A REGULAR 115 VOLT OUTLET AND THE CORD IS 6. 5' LONG. THE VALVE HAS 1/2" MALE NPT AIR INLET WHICH MEASURES ABOUT 3/4" IN DIAMETER, A REDUCER CAN BE USED IF A SMALLER CONNECTION IS NEEDED. THE AIR OUTLET IS 1/2" FEMALE NPT WHICH ALSO CAN BE REDUCED IF NEEDED. THESE ARE NICE INDUSTRIAL QUALITY DRAINS, THAT HAVE A BUILT-IN STRAINER TO PROTECT THE VALVE FROM DEBRIS, WHICH CAN BE CLEANED IF IT GETS CLOGGED. -MAX PRESSURE: 200 PSI -OPERATING TEMPERATURE: 32 DEGREES F - 130 DEGREES F -BRASS BODY CONSTRUCTION -CAN BE MOUNTED IN ANY POSITION -COMES WITH INSTRUCTIONS Minder EDV Electronic Solenoid Valve Features: Built in strainer 1/4 turn ball valve Dual size inlet Large 4mm internal orifice Internal armature and shaft made from stainless steel Unique Mounting system Dual internal drain ports Ball valve used as manual tank or filter drain Solid state adjustable with test button Valve design allows for disassembly Specifications: Timer: Solid-state construction Status Indication: Power "ON" Valve"OPEN" Internal Time: 0. 5 to 45 min. (as required) Discharge Time: 0. 5 to 10 sec. (as required) Electrical Connection: DIN 46242 Connector: 4-position connector Coil: 110/115 volt AC(standard) Available 12 volt/24 volt DC, 220/230 volt AC for overseas installations Insulation: Class H 180C (350F) Protection: IP65 including connector Conforms to NEMA 4 std. Temperature Range: -20C (-4F) to +150C (300F) Standard Voltages: 220/240V, 50Hz 115V, 60Hz 115 VOLT ELECTRONIC AUTOMATIC TIMER MOISTURE DRAIN FOR AIR COMPRESSORS AND AIR TANKS. Timer: Solid-state construction Status Indication: Power "ON" Valve"OPEN"-MAX PRESSURE: 200 PSI -OPERATING TEMPERATURE: 32 DEGREES F - 130 DEGREES F-BRASS BODY CONSTRUCTION -CAN BE MOUNTED IN ANY POSITION -COMES WITH INSTRUCTIONSInternal Time: 0. 5 to 45 min. (as required) Discharge Time: 0. 5 to 10 sec. (as required) Electrical.
