Description:

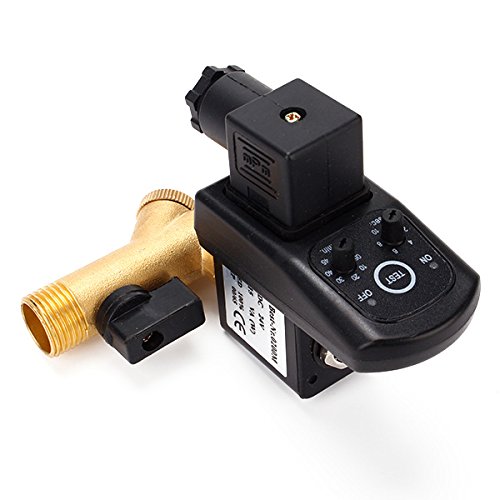

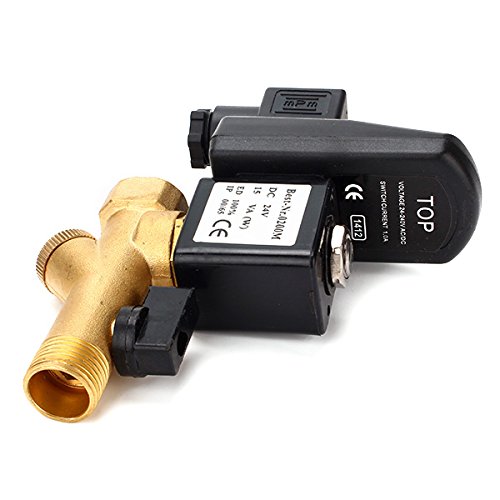

The DC 24V 1/2 inch Automatic Electronic Timed Drain Valve is designed for automatic timed condensate discharge in compressed air systems. It ensures efficient moisture removal from gas tanks and filter separators to maintain system performance.

• Application: Widely used in gas tanks, drip legs, and other compressed air system components
• Operation: Fully automatic operation with a sub drain valve to simulate circuits and solid state electronic timer solenoid valve
• Adjustments: Includes test button, interval adjustment knob, and emission time adjustment knob
• Power Supply: DC24V 50HZ
• Time Interval OFF: 0.5 to 45 minutes
• Discharge Time ON: 0.5 to 10 seconds
• Port Size: 1/2 inch inlet and outlet
• Maximum Working Pressure: 1.6Mpa
• Temperature Range: Minus 40 degrees C to 60 degrees C ambient temperature and maximum temperature of 90 degrees C
• Materials: Flame retardant ABS plastic shell with forging brass valve
• Flow Aperture: 5 mm
• Protection Grade: IP65
• Insulation: Class H
• Current Consumption: Maximum 4mA
• Voltage Range: Plus or minus 10 percent
• Indicator: LED lamp for power on and off status
• Valve Type: Two two direct acting globe valve
• Connector Type: Compression
• Certifications: CSA and UL
