Description:

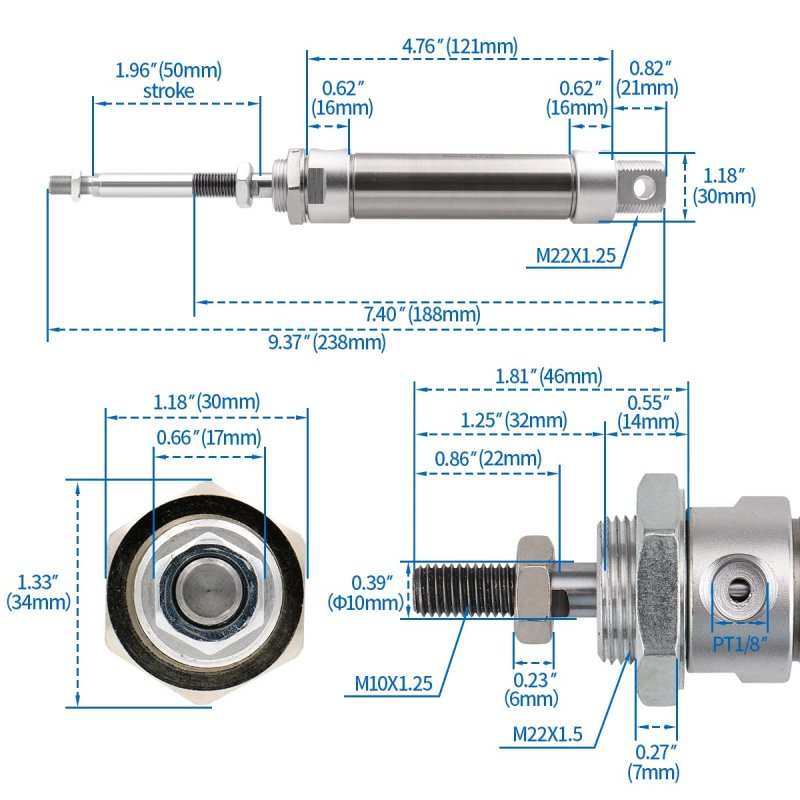

Model: MA2550; Action Type: Double Acting. Bore: 25mm/1''; Stroke: 50mm/2''; Max.Press: 1.0 Mpa. Rod Thread Diameter: 9.8mm / 0.38"; Piston Rod Diameter: 10mm/0.4''; Screw Hole Diameter: 8.5mm/0.33''. Threaded End Diameter: 21.8mm/0.85''; Size: 190 x 30mm/7.5'' x 1.18'' (L*Max. W). Weight: 273g; Package Content: 1 x Air Cylinder.
