Description:

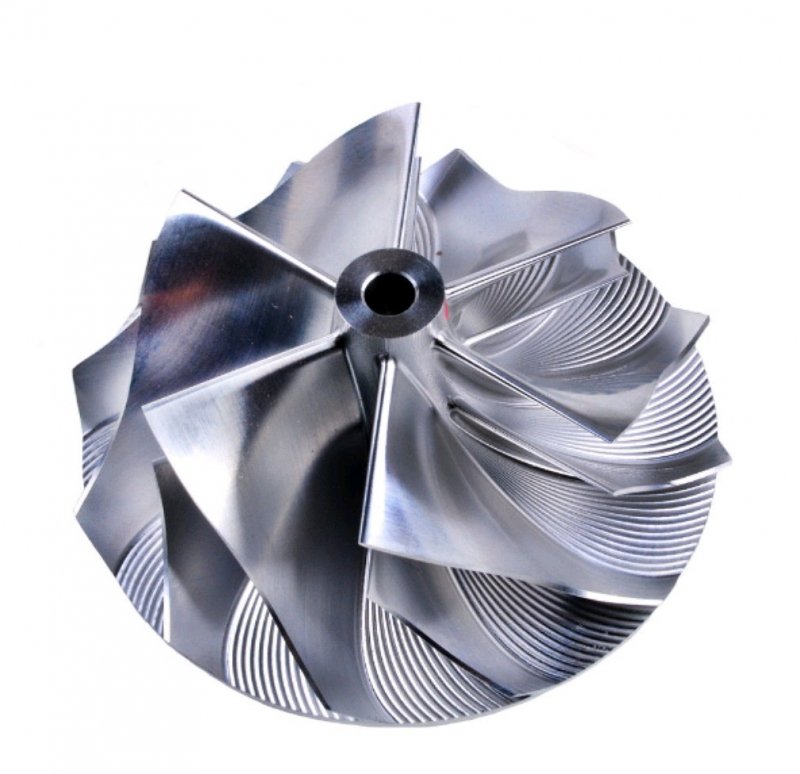

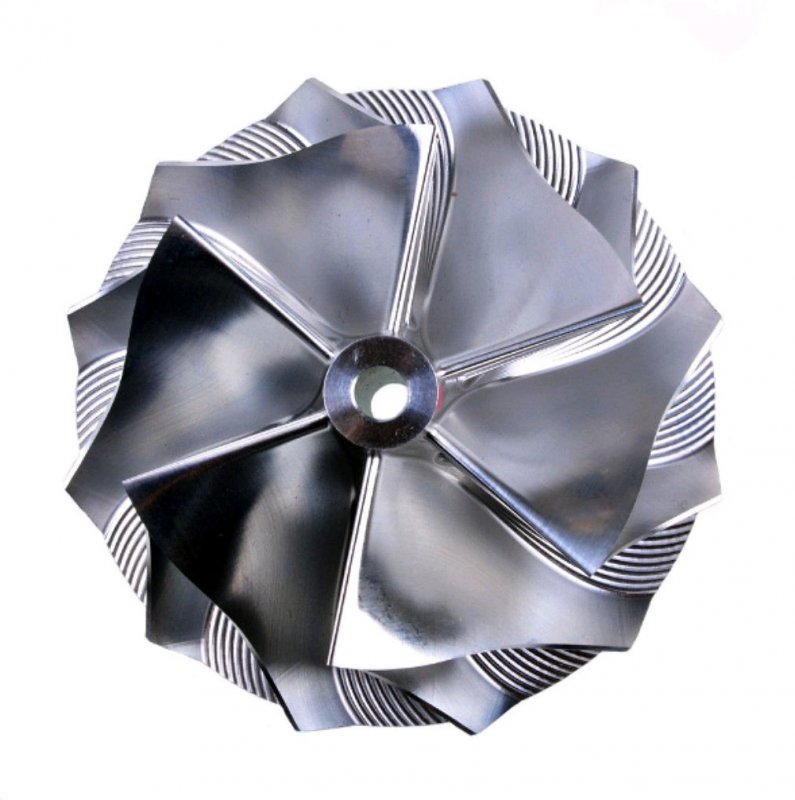

This Billet Compressor Wheel is designed for TF035HL 09G turbochargers to provide a high performance upgrade for N47D20 engines in 120d, 320d, 520d, and X3 models. It offers increased boost capabilities up to 5 bar or 70 Psi for competition ready performance.

• Turbo Model: TF035HL6bs 09GFT VG
• Engine Compatibility: 120d, 320d, 520d, X3 2.0D N47D20
• Compatible Part Numbers: 49335 00510, 49335 00511, 49335 00512, 49335 00520, 49335 00521, 49335 00530, 49335 00531, 49335 00550, 49335 00560, 49335 00561, 49335 00570, 49335 00580, 49335 00581, 49335 00583, 49335 00584, 49335 00600, 49335 00601, 49335 00610, 49335 00611, 49335 00620, 49335 00621, 49335 00642, 49135 09610, 49135 09620, 49135 09645
• Material: Forged Aluminum

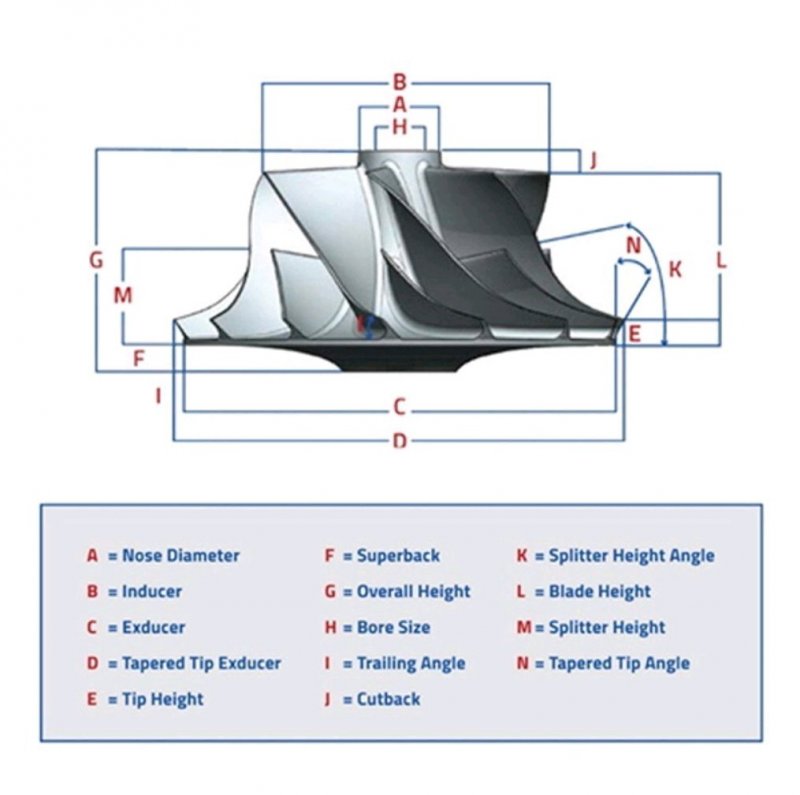

• Inducer Diameter: 38.00 mm
• Exducer Diameter: 51.00 mm
• Nose Diameter: 12.28 mm
• Bore Size: 5.00 mm
• Overall Height: 25.30 mm
• Tip Height: 3.69 mm
• Super Back Height: 1.90 mm
• Blade Configuration: 6 plus 6
• Trailing Angle: 55 degrees
• Rotation: Forward
• Bore Type: Through
• Balance: Balanced by SCHENCK MBRS 110
• Application: Racing
