Description:

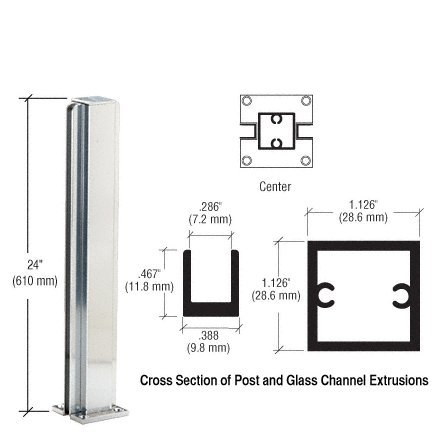

Base Dimension: 2 x 2 in sq (50 X 50sq)Color: Brite AnodizedPost Length: 24 in (600 mm)Stock Post Sizes, RED-E to ShipStandard Heights of 12", 18", and 24" (305, 457, and 610 mm) Available in Four FinishesFive Standard Configurations End, Center, Corner, 3-Way, and 4-WayAluminum Tubing With Full Length Channels for 1/4" (6 mm) GlassTop Cand Mounting Base IncludedCRL Design Series Partition Posts are very popular, available in the standard stock sizes shown on the opposite page, and are ready for immediate delivery. These Posts have been used for years in banks, offices, and restaurants. A slim line profile and easy-to-install Mounting Base have made them a favorite in the industry. The glass is easily secured into the glazing channels using Cat. No. 33SC Clear Silicone. Also available in some finishes and sizes are Custom 135 Degree Posts. Each Post contains one attached Top Cap, one attached Mounting Base, and four Wood Screws for mounting. These fully assembled Design Series Posts measure 1-1/8" (28. 6 mm) square. Post Mounting Base Plates measure 2" (50. 8 mm) square. Glazing Channels measure full length and rise 15/32" (11. 8 mm) from the post surface. Glazing Vinyl for 1/4" (6 mm) and 3/16" (5 mm) glass is supplied to fill glass channel. Important NotesThe glass is easily secured into the glazing channels using Cat. No. 33SC Clear Silicone. Features: Stock Post Sizes, RED-E to Ship Standard Heights of 12", 18", and 24" (305, 457, and 610 mm) Available in Four Finishes Five Standard Configurations End, Center, Corner, 3-Way, and 4-Way Aluminum Tubing With Full Length Channels for 1/4" (6 mm) Glass Top Cand Mounting Base Included.
