Description:

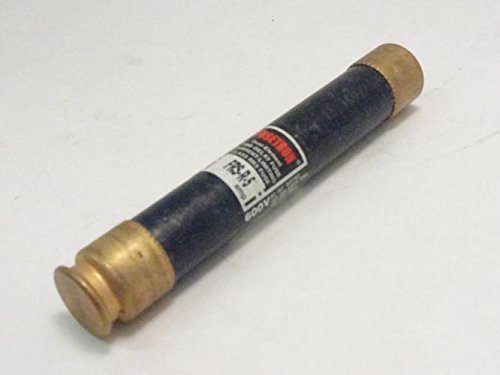

Cooper Bussmann Time Delay Fuse, Energy Efficient, Non-Indicating, Series: Fusetron, FRS-R, 5 A, 600 VAC/300 VDC, 200 KA At 600 VAC, 20 KA At 300 VDC Interrupt, Class: RK5, 10 Sec At 500% Response, Ferrule, Cylindrical, Rejection Body, Dual Element, Fiberglass, Brass End Cap, 0. 81 In Diameter, 5 In Length, Fuse Holder Code: P, For Power Panelboards Model # FRS-R-5 Features: Provides motor overload, ground fault and short-circuit protection Helps protect motors against burnout from overloads and from single phasing on three phase systems Simplifies and improves blackout prevention (selective coordination) Can be applied in circuits subject to temporary motor overloads and surge currents to provide high performance short-circuit and overload protection Protects against low level overcurrent of overloads and will hold on inrush current 5 times greater than the amp rating of fuse for a min of 8 sec Item Dimensions: 0. 8" L x 0. 8" W x 5" H.
