Description:

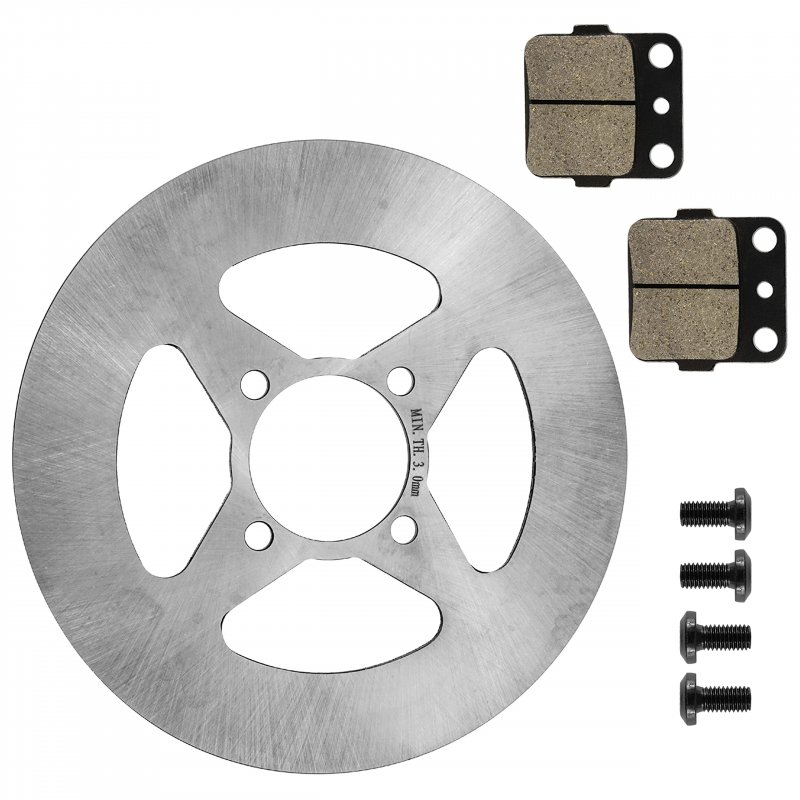

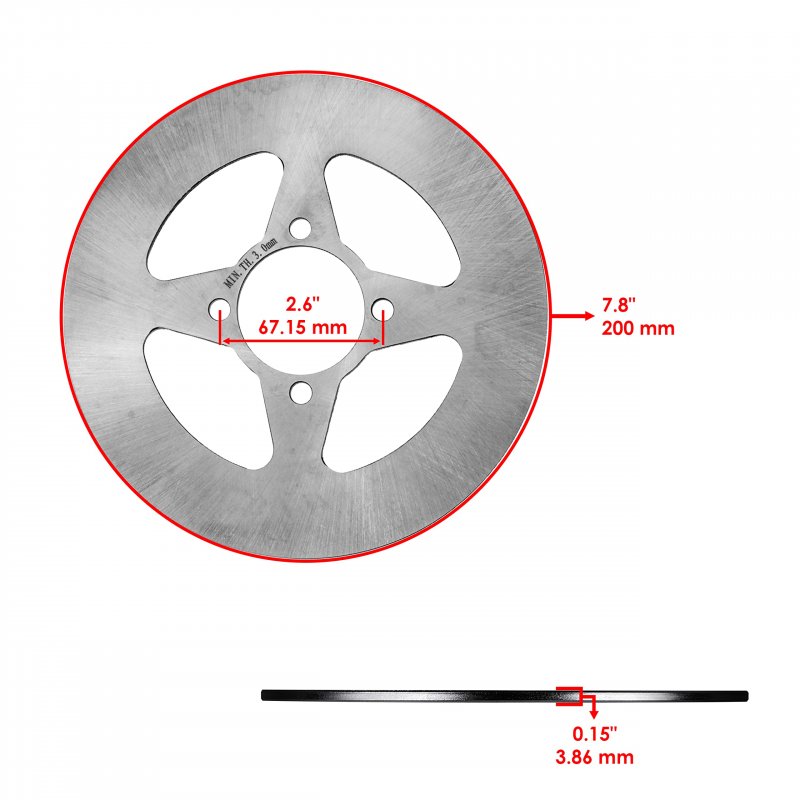

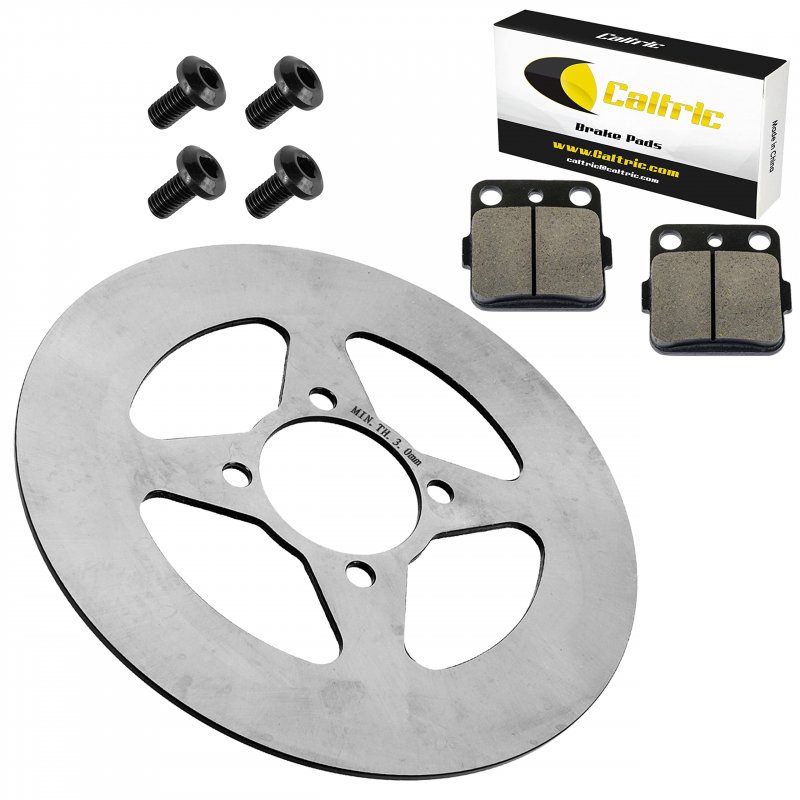

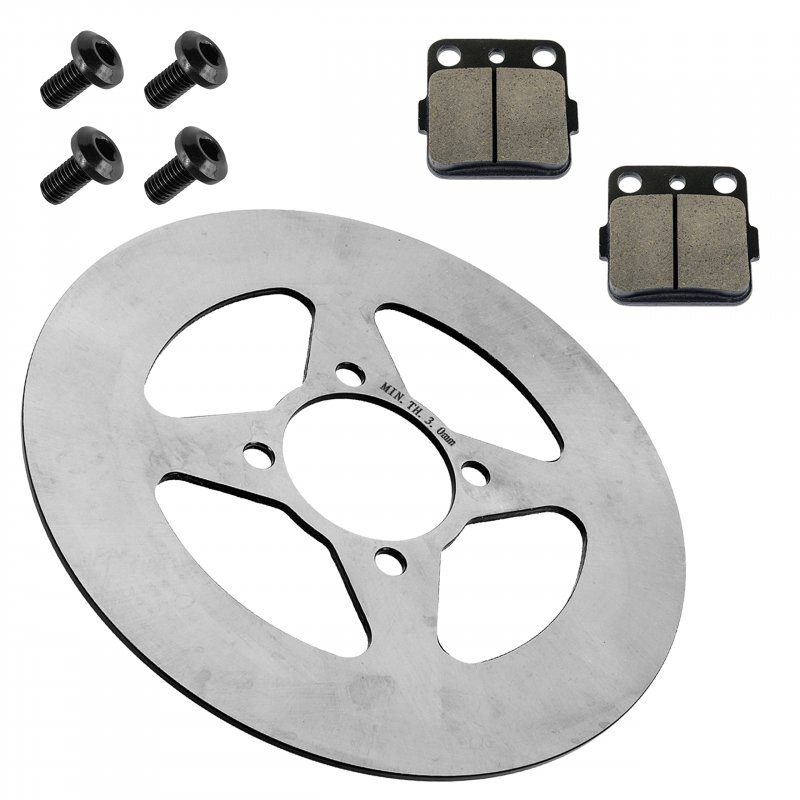

Order Includes: 1 x Brake Disc , 1 x Brake Pads , 4 x Bolt. Part Numbers: Brake Disc: 5TG-2582W-00-00 / Brake Pads: 1UY-W0046-00-00 5LP-W0046-51-00 / Bolt: 90109-08789-00 90109-081F0-00. Measurements Brake Disc: Width: 0.15" / 3.86 mm , Outer Diameter: 7.8" / 200.0 mm , Mounting Hole Distance: 2.6" / 67.15 mm. Measurements: Brake Pads: Width: 0.3" / 7.7 mm , Length: 1.8" / 46.0 mm , Height: 1.8" / 45.0 mm , Mounting Hole Distance: 1.1" / 27.8 mm / Bolt: Threads: M8x1.25 , Length: 0.82" / 21.0 mm , Head Diameter: 0.62" / 16.0 mm , Allen Head: 6 mm. We strongly suggest comparing the posted picture to the unit(s) that needs to be replaced..
