Description:

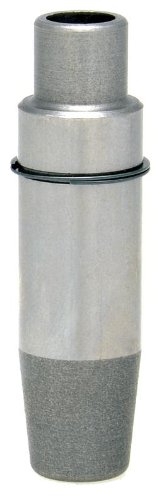

The Cast Iron Exhaust Valve Guide Standard is designed to thrive in tough engine operating conditions by providing excellent wear resistance and a superior guide bore finish.

• Material Proprietary cast iron blend
• Part Number 20-2130C
• Outside Diameter G 0.5620 inches Standard
• Dimension A 0.650 inches
• Dimension B 0.700 inches
• Dimension C 1.150 inches
• Dimension D 1.450 inches
• Dimension E 0.615 inches
• Dimension F 0.3098 inches
• Compatibility Special shouldered guide accepts 0.600 inch replacement valve lift
• Seal Compatibility Guide top accepts Factory style seal 20-20620, Steel Clad Viton seal 20-2015, and Solid White PC Style Seal 20-2009
• Item Dimensions 3.6 inches width by 0.9 inches length by 0.9 inches height

Vehicle Fitment

• 1985 H D FLH Electra Glide
• 1994 to 2004 H D FLHR Road King
• 1998 to 2004 H D FLHRCI Road King Classic
• 1996 to 1997 H D FLHRI Road King
• 2000 to 2004 H D FLHRI Road King
• 2004 H D FLHRS Road King Custom
• 2004 H D FLHRSI Road King Custom
• 1987 to 1993 H D FLHS Electra Glide Sport
• 1986 to 1987 H D FLHT Electra Glide Standard
• 1995 to 2004 H D FLHT Electra Glide Standard
• 1984 to 2004 H D FLHTC Electra Glide Classic
• 1996 to 2004 H D FLHTCI Electra Glide Classic
• 1989 to 1997 H D FLHTCU Electra Glide Ultra Classic
• 1995 to 2004 H D FLHTCUI Electra Glide Ultra Classic
• 2003 to 2004 H D FLHTI Electra Glide Standard
• 1985 H D FLHX Electra Glide Special
• 1986 to 1990 H D FLST Heritage Softail
• 1988 to 2004 H D FLSTC Heritage Softail Classic
• 2001 to 2004 H D FLSTCI Heritage Softail Classic
• 1990 to 2004 H D FLSTF Fat Boy
• 2001 to 2004 H D FLSTFI Fat Boy
• 1993 H D FLSTN Heritage Softail Nostalgia
• 1994 to 1996 H D FLSTN Heritage Softail Special
• 1997 to 2003 H D FLSTS Heritage Springer
• 2001 to 2003 H D FLSTSI Heritage Springer
• 1984 to 1991 H D FLTC Tour Glide Classic
• 1989 to 1995 H D FLTCU Tour Glide Ultra Classic
• 1996 H D FLTCUI Tour Glide Ultra Classic
• 1998 to 2002 H D FLTR Road Glide
