Description:

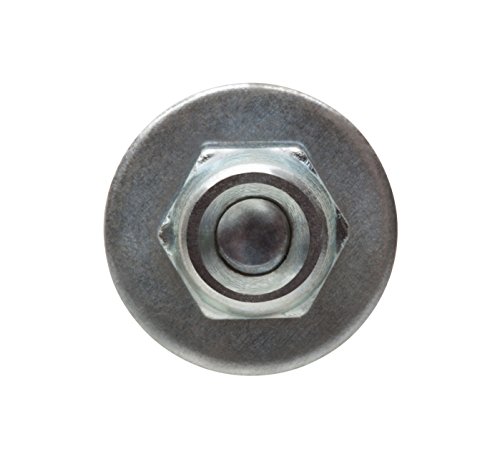

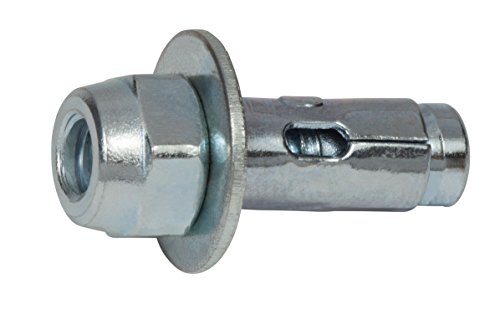

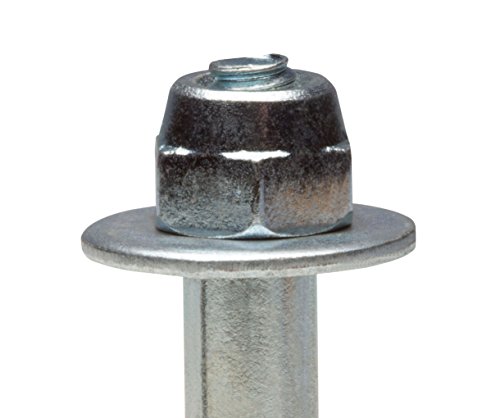

Applications The anchor is made from 304 Stainless Steel. This anchor is designed for use in Concrete, Block, and Brick. Environment The anchor is designed for use in a Wet environment. Head Style The anchor is a Acorn/Open head and is designed to allow the head to sit on top of the surfof the item being attached. Hole Diameter/Bit Diameter The anchor requires a 1/4" hole to be drilled in the base material (Concrete, Block, and Brick). The hole should be drilled with carbide tipped bit that meets ANSI standards and used in a hammer drill. Diameter of Anchor The diameter of the anchor is 1/4". Length Anchor The length of the anchor is 1-3/8" Minimum Embedment The minimum anchor embedment into the concrete is 1". Therefore, the anchor must be installed so that a minimum of 1" of the anchor is embedded into the concrete. Maximum Fixture Thickness The maximum fixture thickness or the maximum thickness of the material being fastened fornchor is 3/8". This will ensure that the minimum embedment of 1" will be met. Fixture Hole Diameter The hole in the fixture or material being fastened must be larger than the designated diameter of the anchor. The 1/4" diameter anchor requires the hole in the fixture to be 5/16". Spacing between Anchors Each anchor must be spaced a minimum distance of 2-1/2" from each other when measured center to center. Edge Distance It is very important not to install the anchor any closer than 1-1/4" from an unsupported edge of the concrete.
