Description:

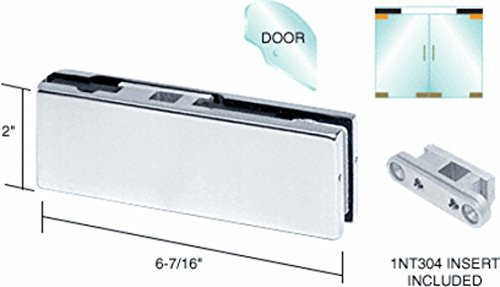

Finished covers are available in four standard finishes. Gaskets are supplied that allow this Patch Fitting to be used with either 3/8 or 1/2 inch (10 or 12 millimeter) Glass. Color: Brushed Stainless Minimum Order: 1 Each Additional Product Information: Glass Fabrication Required: One 3/4 inch (19 millimeter) diameter hole and corner notch. Important Note: THE FOLLOWING GUIDELINES ARE TO BE USED WHEN MAKING A DOOR USING THIS HARDWARE: MAXIMUM HEIGHT: 108" (2744MM) MAXIMUM WEIGHT: 176 LBS (80KG) MAXIMUM WIDTH: 43" (1100MM) IF THE DOOR EXCEEDS ANY OF THESE LIMITATIONS FULL DOOR RAILS SHOULD BE USED. Features: European 2-9/16" (65 mm) Pivot Setback Gaskets for use with 3/8" or 1/2" (10 or 12 mm) Glass High Density Cast Body Item Dimensions: 6" L x 6" W x 6" H.
