Description:

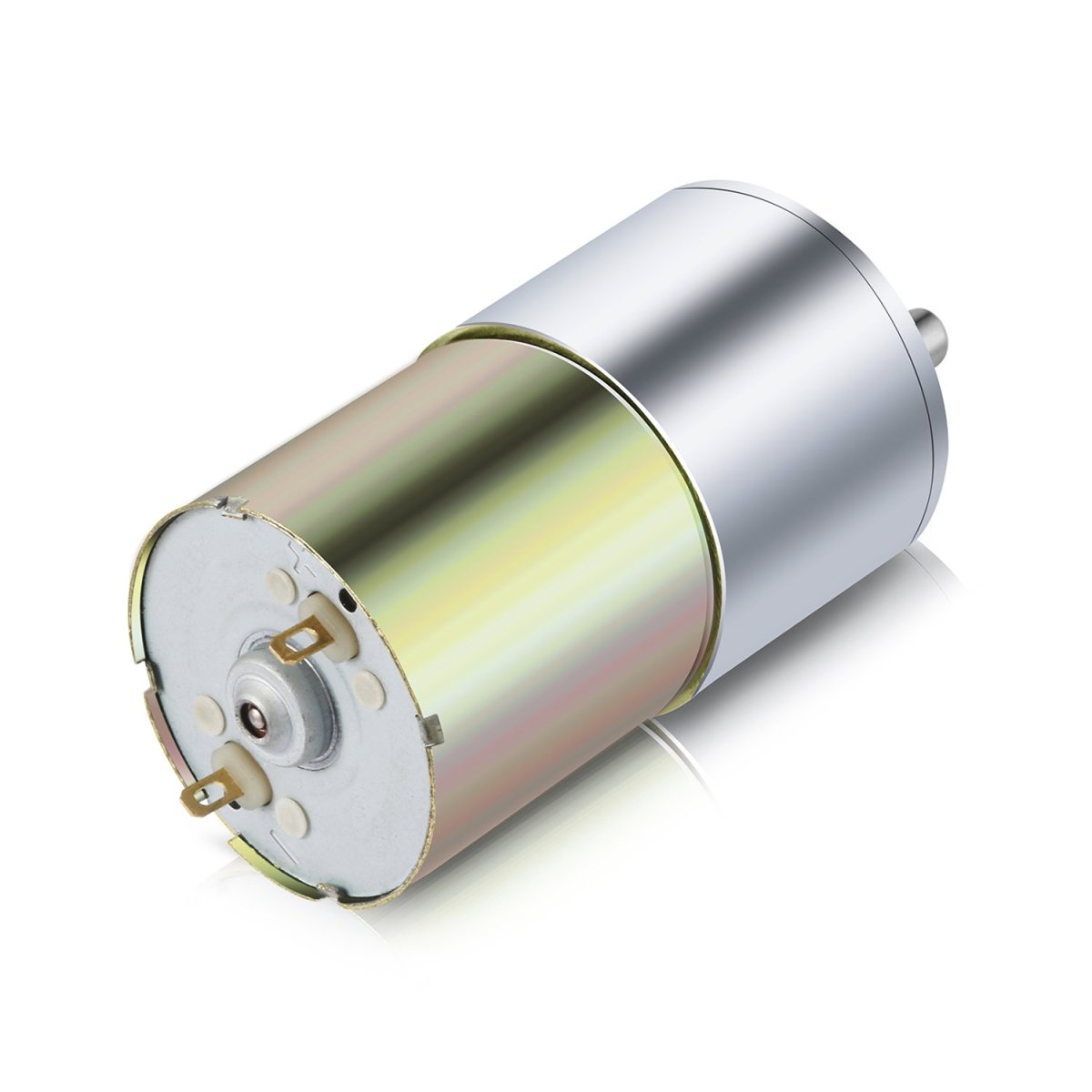

DC 12V 200RPM Gear Motor. This high torque electric micro speed reduction geared motor features an eccentric output shaft and 37mm diameter gearbox for powerful and precise performance in compact applications.

• Rated Voltage 12V
• Speed 200RPM
• Rated Torque 2.2Kg.cm
• Reduction Ratio 1:22
• Rated Current 0.1A
• Material Metal

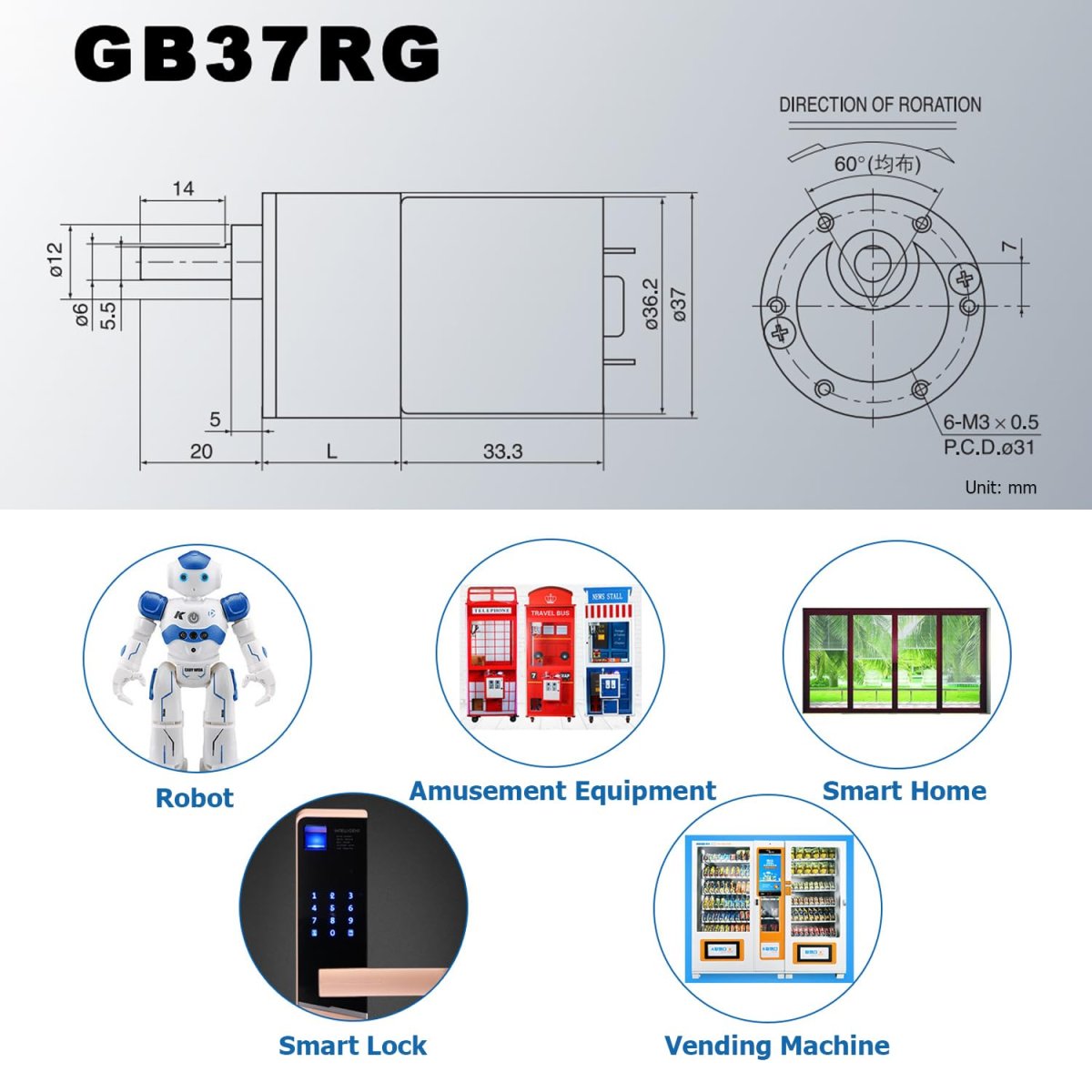

• Gearbox Size 37 x 25mm
• Motor Size 36.2 x 33.3mm
• Output Shaft D shaped 6 x 14mm
• Mounting Hole Size M3
• All Metal Gears High temperature resistance and strong load capacity

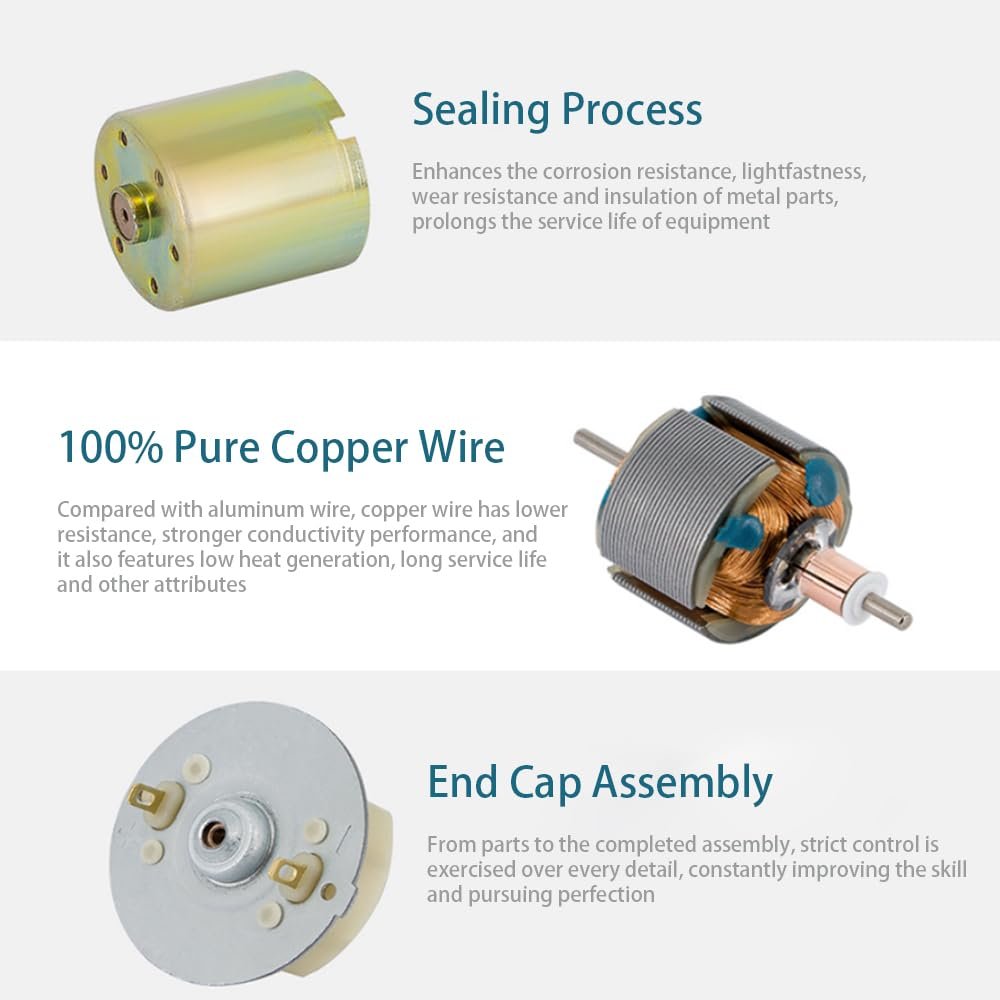

• Pure Copper Wire Core Rotor Precision winding technology increases power by 30 percent
• D Shaped Output Shaft High hardness steel for impact resistance and durability
• Rotation Positive and negative rotation available
• Applications Vending equipment, pan cameras, slot machines, money detectors, coin refund devices, automatic doors, and toys
• Storage Temperature 0 degrees to 40 degrees Celsius
• Use Temperature 0 degrees to 70 degrees Celsius
