Description:

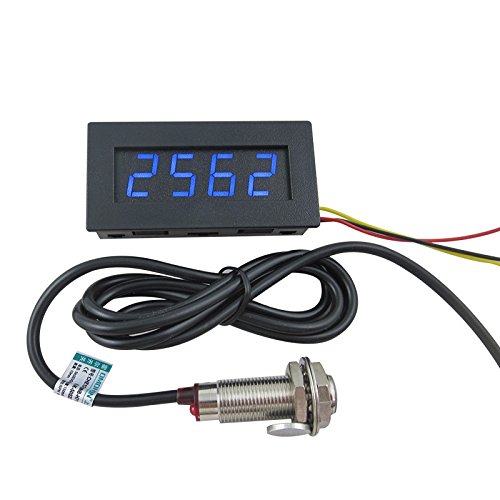

Power requirement:DC 8-15V Measure range : 5-9999RPM. Clear zero: Automatic. Clear zero time:about 10s. the greater the RPM value,the longer the clear zero time. Refrequency: 0. 2-0. 5S@120-1200RPM;0. 25-0. 06S@2400-9999RPM. Measure indication:RPM 5000,3. Display:bLUE 0. 56 LED Sign:Pusle signal,Hall NPN 3 wires normally open. Hall proximity model:NJK-5002C Appearance:M12mm cylinder. Detection range: 10mm Proximity output current: 200mA Detected objects: magnet Response frequency: 100HZ Tachometer dimension:72x36x20mm,panel cutout Dimension:68x33mm. Sensor dimention: M12x10x55mm. Sensor wiring:brown-Power+;blue-Power-;black-signal. Operating temperature: 0 to 50C. Packaging include Tachometer x 1 Hall NPN proximity sensor x 1 Features: Measure range: 5-9999RPM. Power requirement:DC 8-15V Come with hall sensor and magnet Display:BLUE 0. 56" LED Measure varied motor RPM.
