Description:

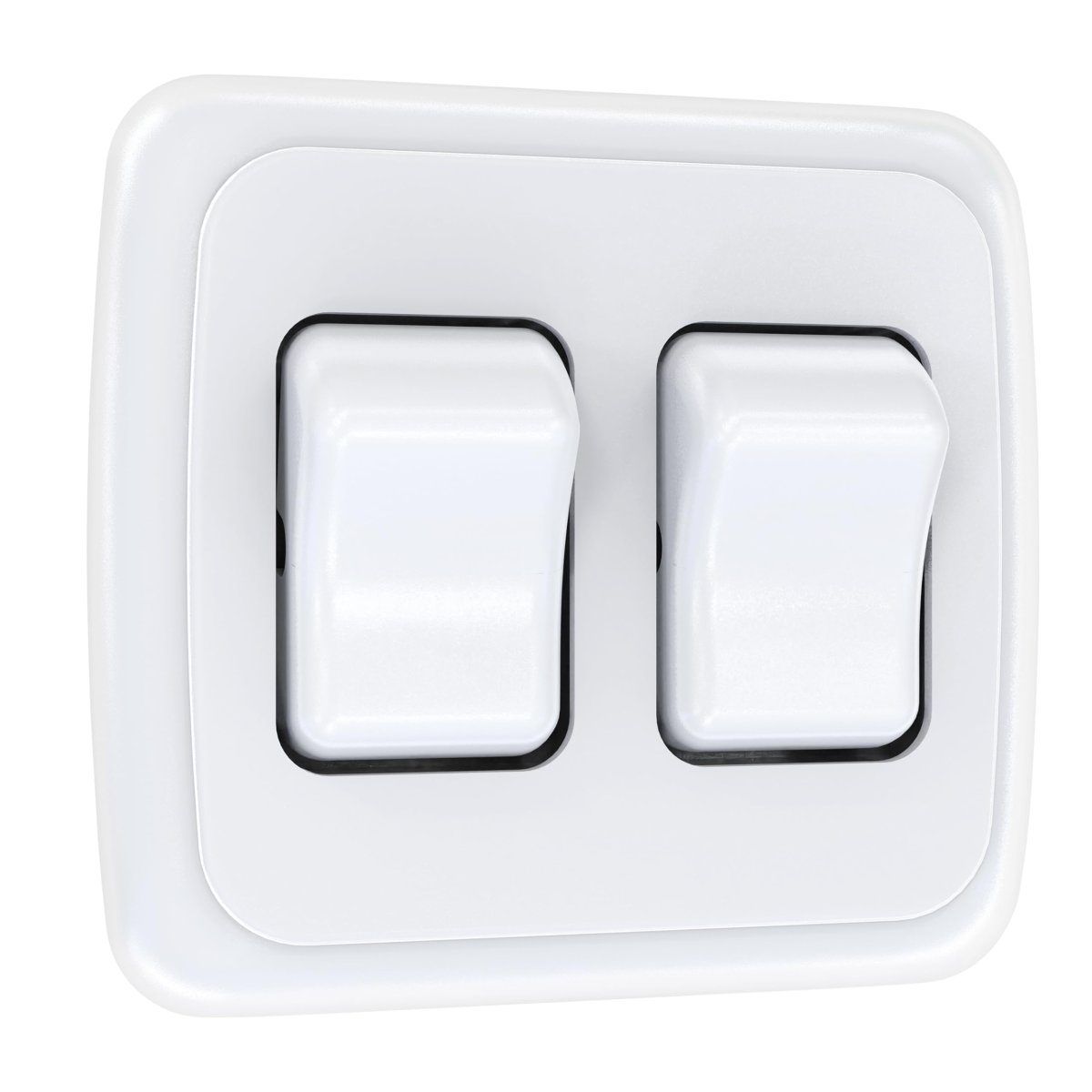

The Contemporary Double SPST On Off Switch with Bezel is a 12 Volt power solution designed for easy installation and a clean look in RVs, trailers, and boats. This white toggle switch provides reliable control for essential onboard electronics like lights, pumps, and fans.

• Switch Type: Toggle
• Operation Mode: ON OFF
• Circuit Type: Single Pole Single Throw SPST 1 way
• Electrical Ratings: 6 Amp at 12 V, 10 Amp at 125 VAC, 6 Amp at 250 VAC
• Maximum Power: 3/4 H.P. at 125 to 250 VAC
• Operating Voltage: 12 Volts DC

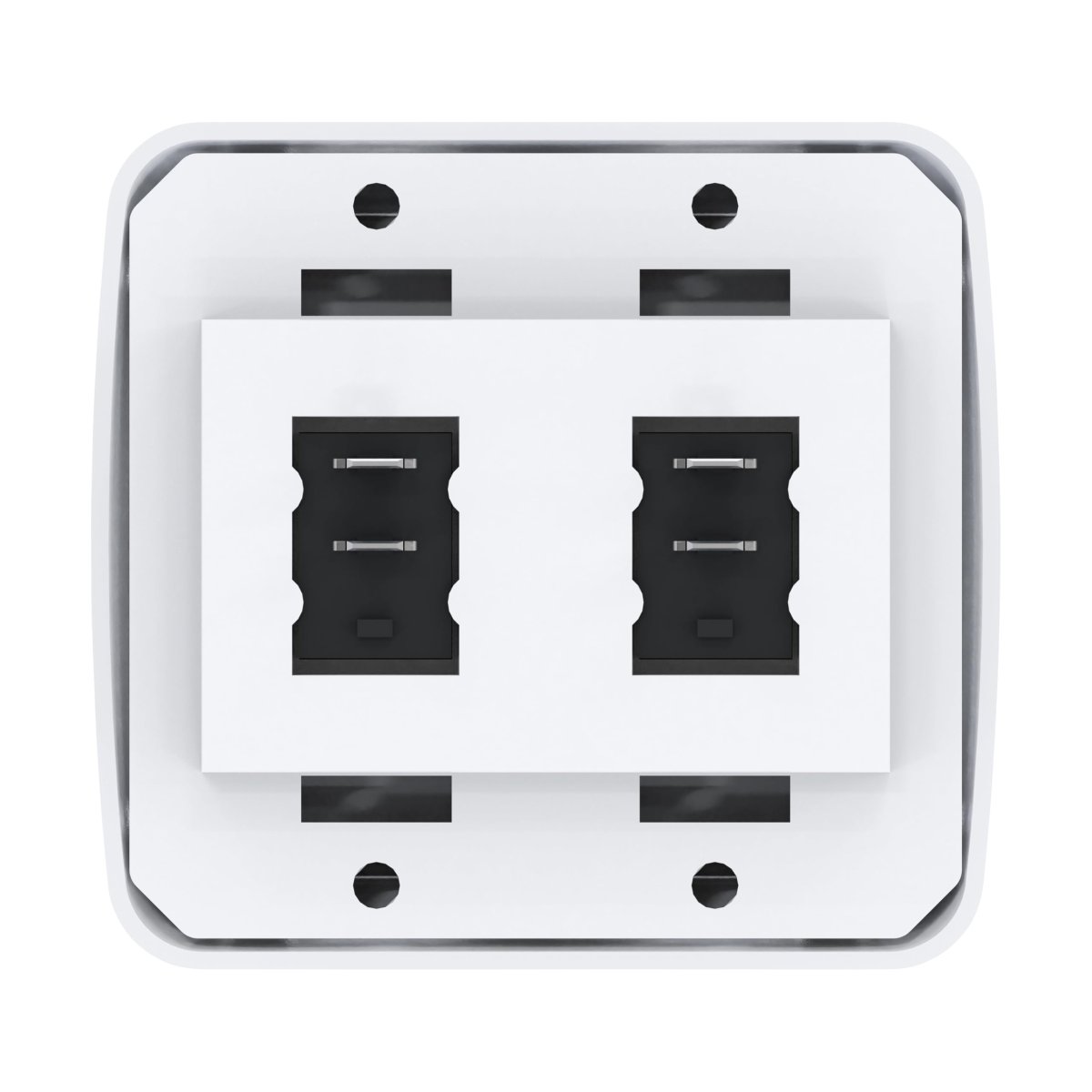

• Connector Type: Quick Connect
• Terminal Type: Spade
• Contact Material: Copper
• Housing Material: Plastic
• Color: White

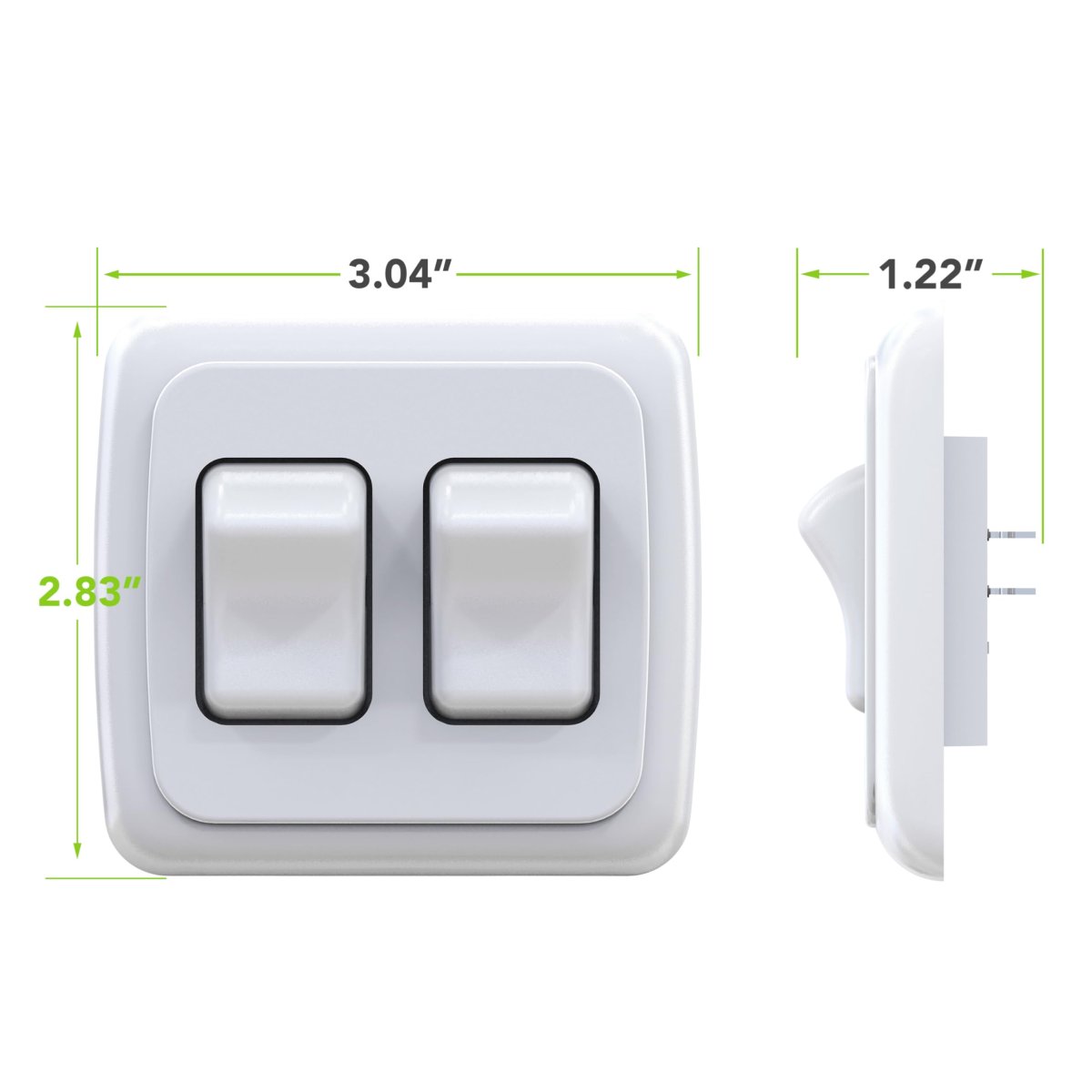

• Overall Dimensions: 3.04 inches Length by 2.83 inches Width by 1.22 inches Height

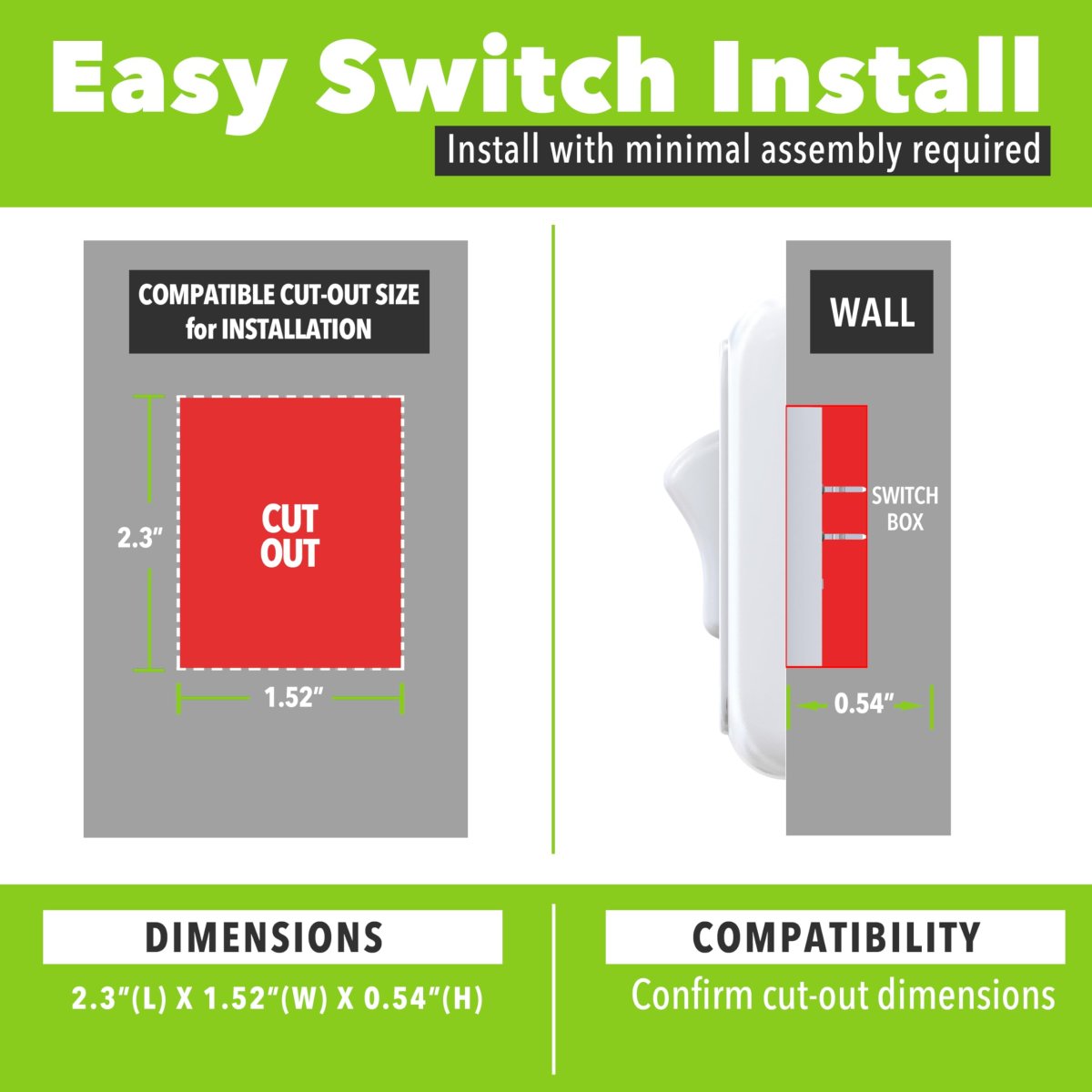

• Minimum Cutout Dimensions: 2.3 inches Length by 1.52 inches Width by 0.54 inches Height

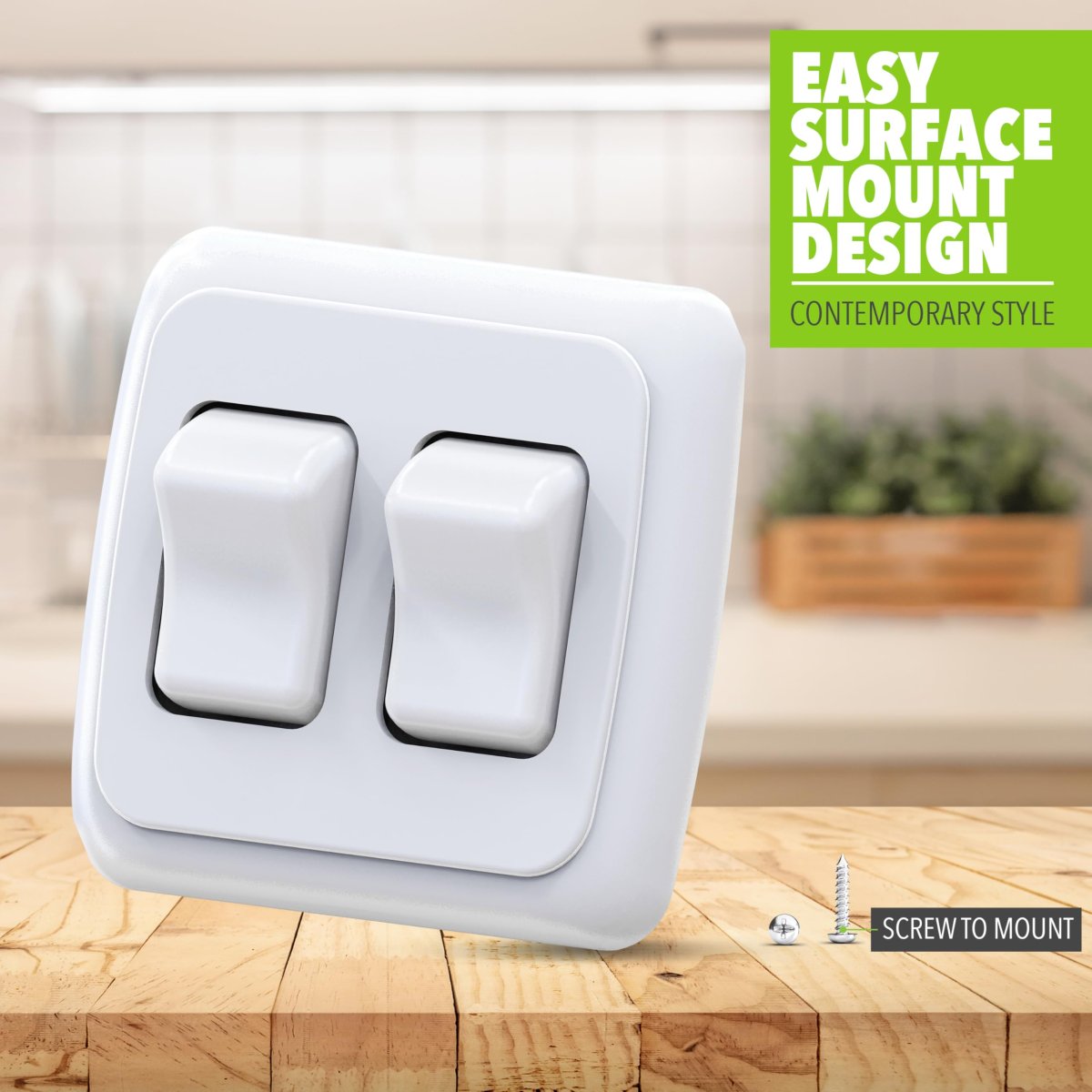

• Mounting Type: Wall Mount
• Protection Rating: IP30
• Compliance: CE and RoHS
• Compatible Vehicles: RV, Bus, Horse Trailer, Travel Trailer, Boat
• Compatible Devices: Lights, Pumps, Fans, Vents
• Included Components: 1 switch plate and cover, mounting screws
