Description:

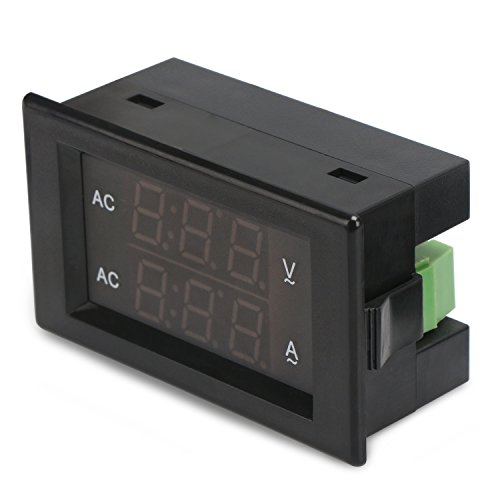

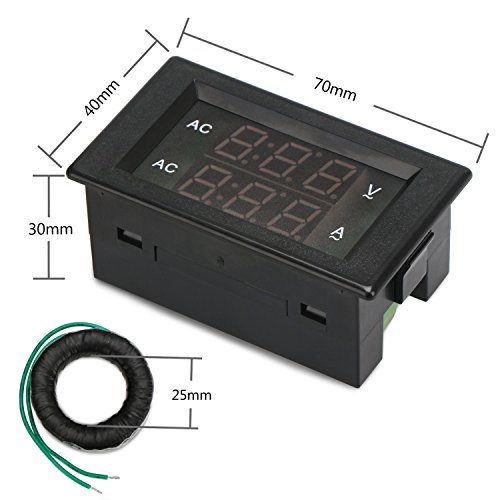

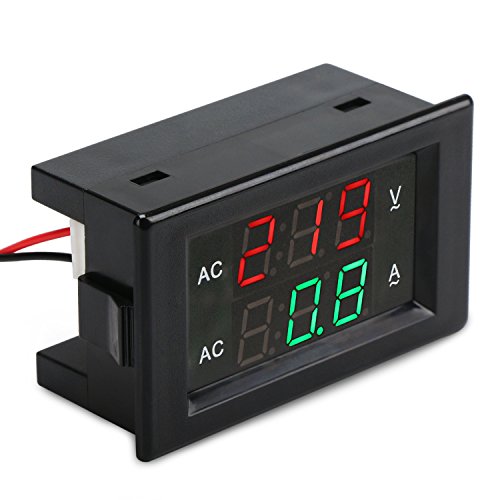

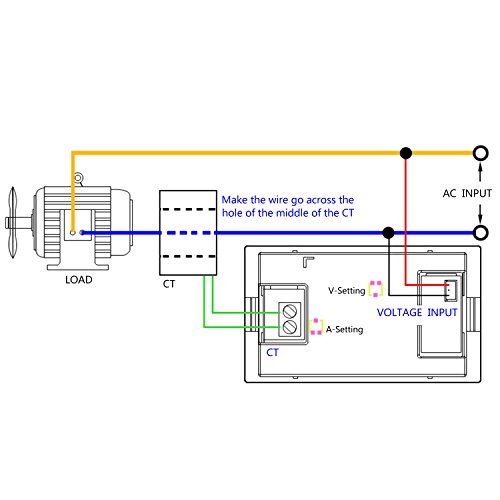

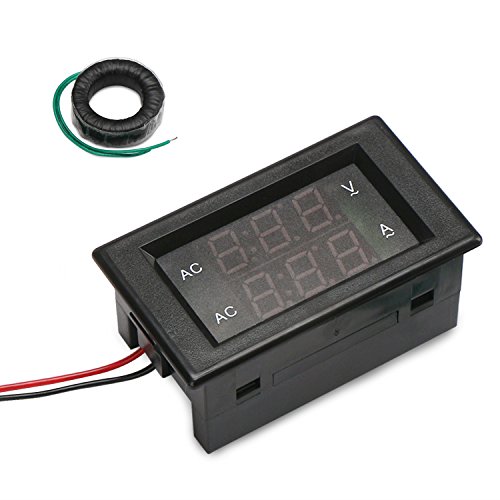

Description: Display voltage and current on the same screen with different color (red for voltage, green for current). Green terminal should be connected to the CT; the red line and black line should be connected to the circuit being tested. Wrong connection will burn the meter. Note: 1. Do not touch the circuit and any parts on the back of this product after connecting with power supply to avoid electric shock. 2. Not suitable for high frequency electronic speed control, non city electric sine wave frequency or other occasions with high frequency components, because the product adopts the theory of capacitor step-down. Parameters: Voltage measuring range: AC130-500V Current measurement range: AC0. 0-200A Resolution: 1V 1A CT inner hole: 25mm Measurement accuracy: 1% + 2 digits Display: 0. 39 inch LED digital tube display Measuring speed: about 2times per second Exterior dimension: 70 * 40 * 30 Installation dimension: 68 * 38mm The power supply line, measuring length: about 150mm Transformer lead length: about 100mm Operating temperature: -10 +50 Working humidity: 10 80% (no condensation) Working pressure: 80 106kPa Sun exposure: no direct exposure Package includes: 1x Digital Volt Ampere Meter + 1x Current Transfer (CT) Features: Measuring range -- DROK voltmeter ammeter voltage range is AC 130-500V, current range is 0. 0-200A. Clear color display -- the multimeter can clearly display voltage and current at the same time, red for voltage, green for current. With precise CT -- DROK volt amperage meter is equipped with CT, no need to buy another. Can be installed on anywhere flexibly. Simple connection -- the voltage ampere monitor gauge is powered by the circuit being measured, no need to connect extra power source. Special design -- DROK volts amp tester is designed with built-in trimmer potentiometer, enable you to calibrate the meter easily. Back cover made it more safer to be used. Item Dimensions: 2. 76" L x 1. 57" W x 1. 18" H.
