Description:

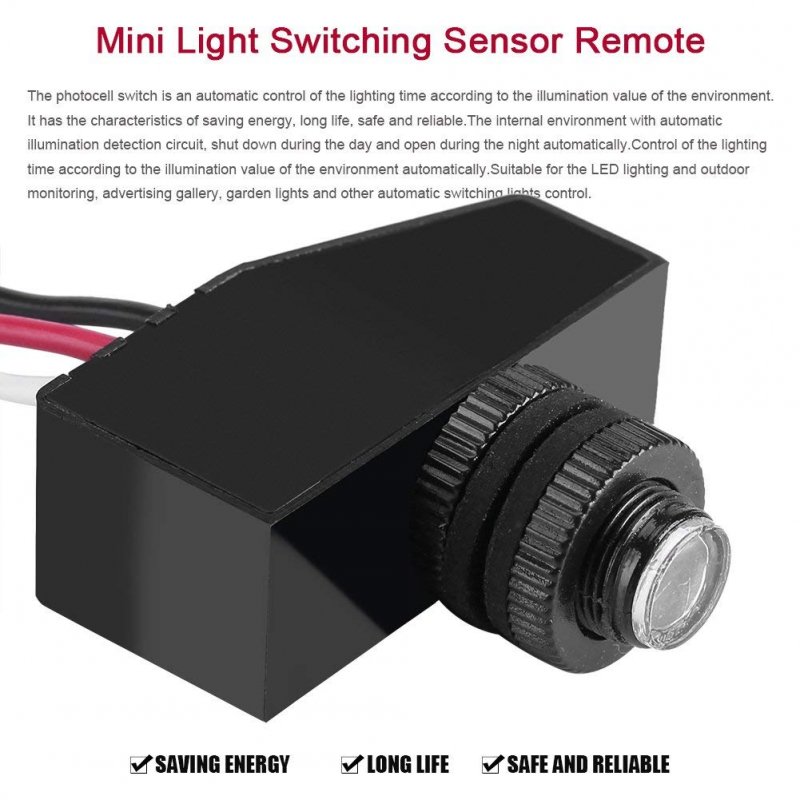

This pack of 2 dusk to dawn photocell light control sensors provides automatic lighting management for 12V, 24V, 36V, and 48V systems. These sensors automatically activate lights at night and shut them down during the day to save energy and improve convenience.

• Voltage Range: 12V 24V 36V 48V
• Supply Voltage: 8V to 50VDC
• Operation Mode: Automatic illumination detection

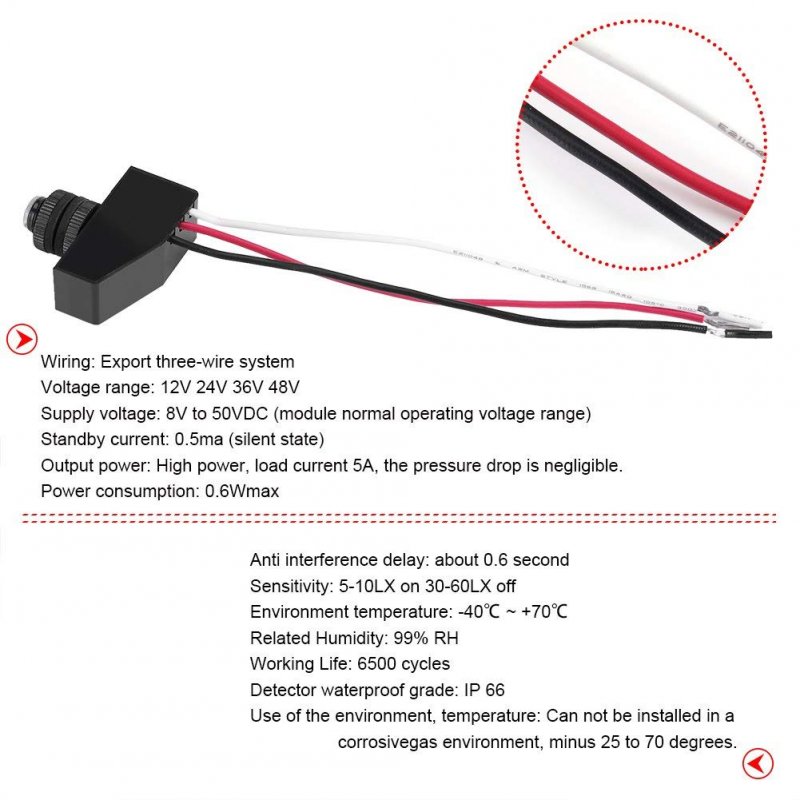

• Wiring: Three wire system
• Current Rating: 5A load current
• Power Consumption: 0.6W max
• Standby Current: 0.5ma
• Sensitivity: 5 to 10LX on and 30 to 60LX off
• Protection Rating: IP66
• Environmental Temperature: minus 40 to 70 degrees
• Installation Temperature: minus 25 to 70 degrees
• Anti Interference Delay: approximately 0.6 second
• Working Life: 6500 cycles
• Lead Length: 150mm

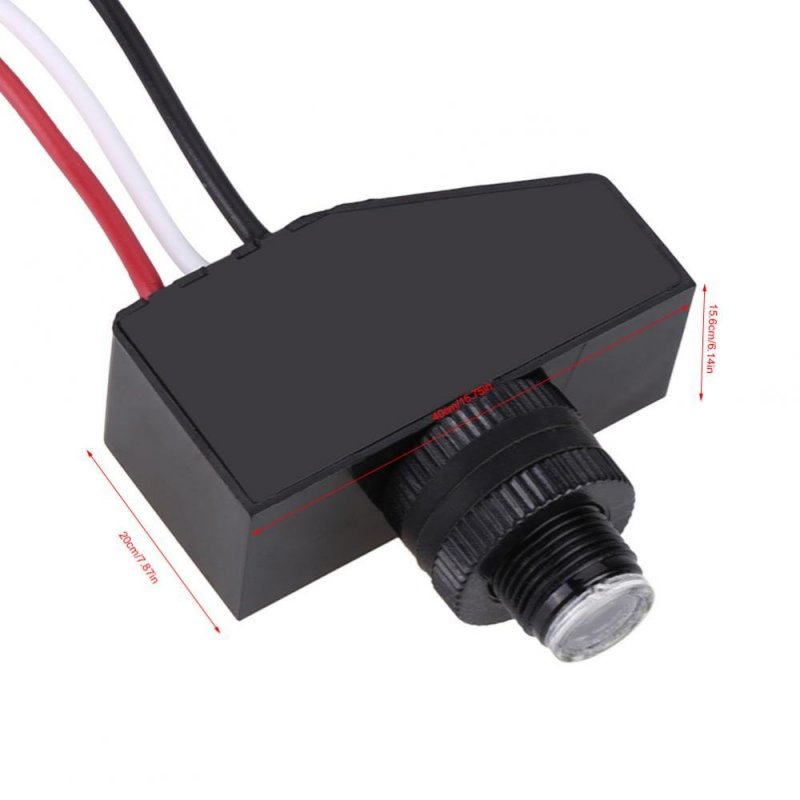

• Product Dimensions: 40 x 15.6 x 20 mm
• Mounting Type: Panel Mount
• Applications: LED lighting, outdoor monitoring, and advertising galleries
• Case Material: Heavy duty case for commercial or residential outdoor fixtures
