Description:

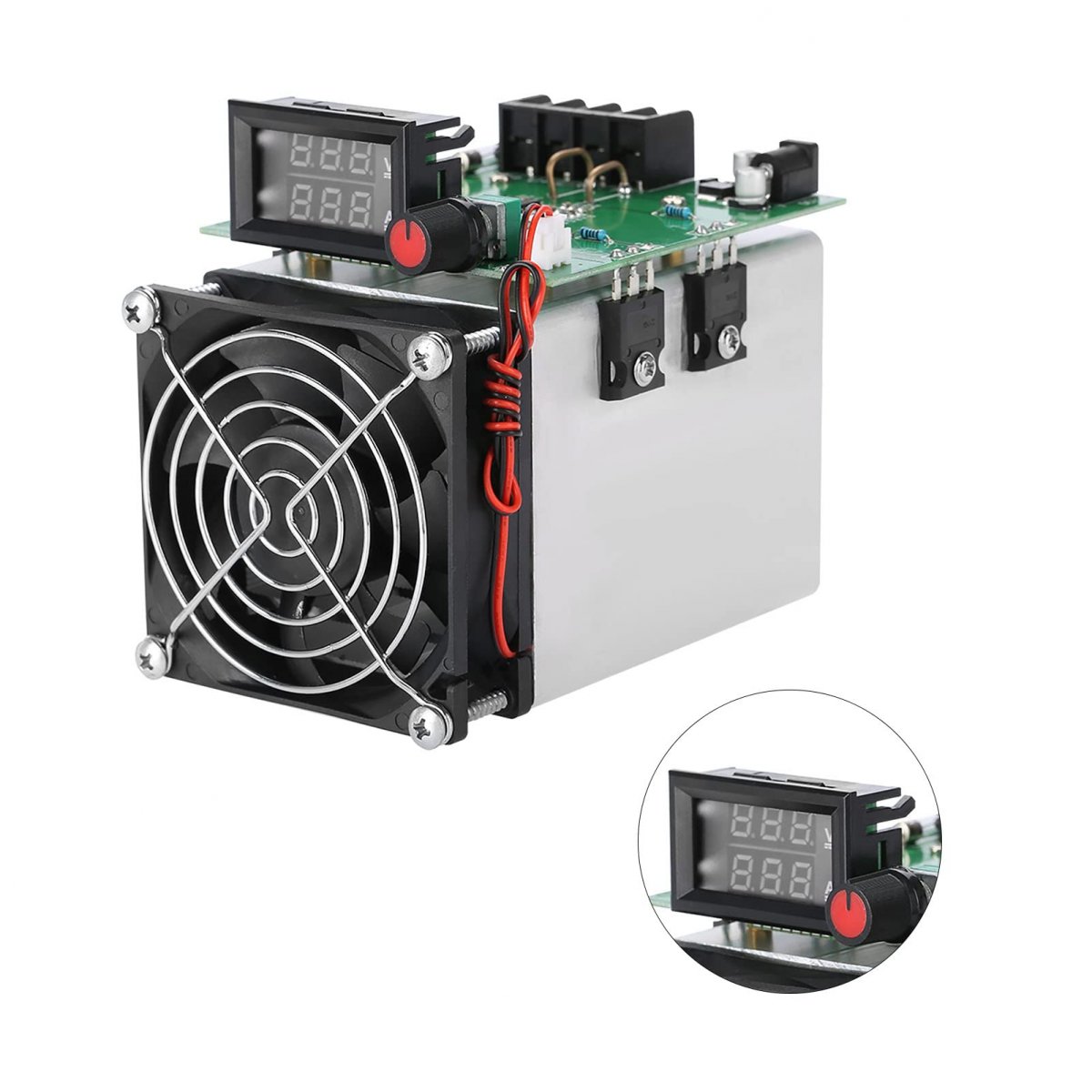

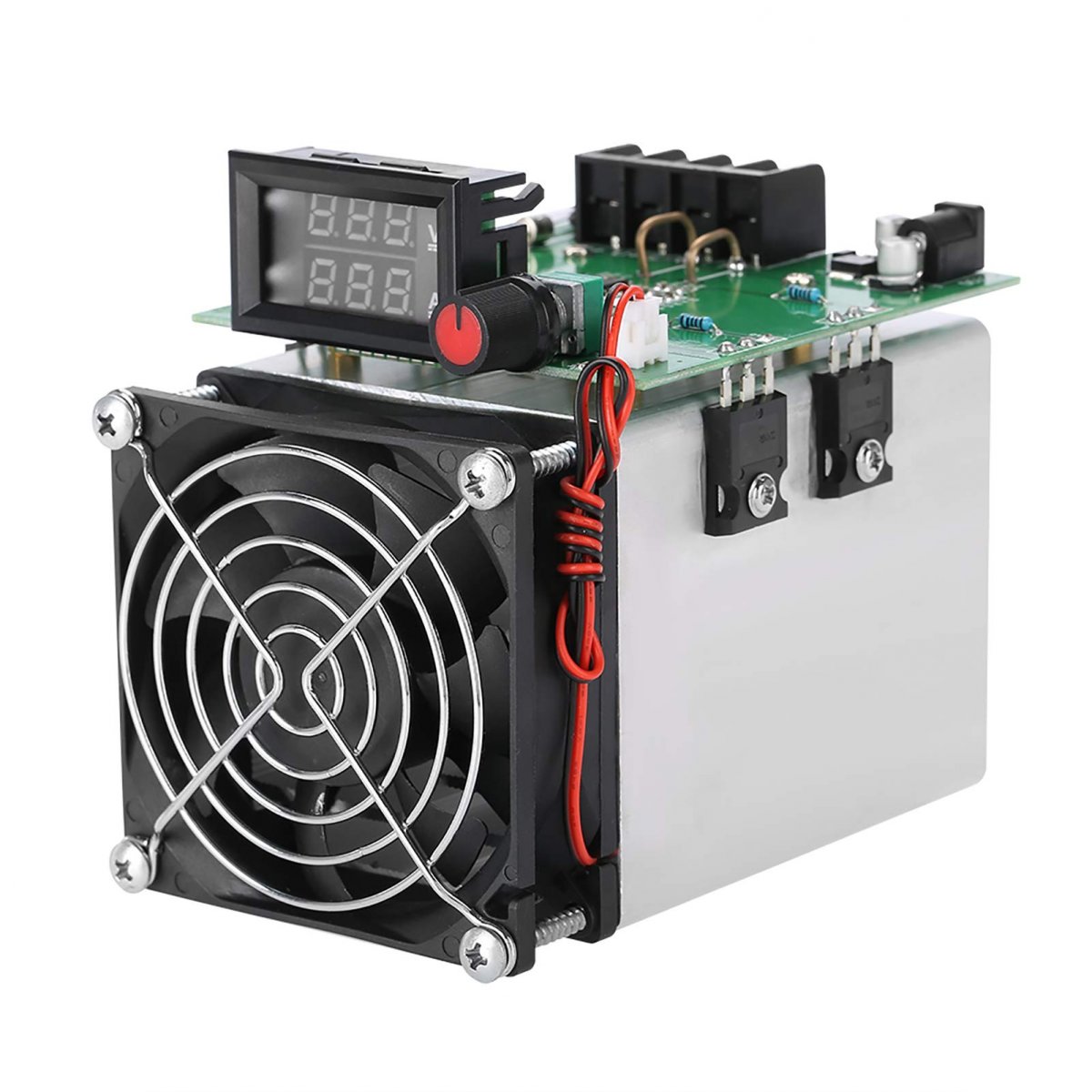

The Electric Discharge Monitor Electronic Load is a high performance burn in module designed for constant current discharge and voltage monitoring. This tool provides a visual reflection of discharge conditions to ensure stability and accuracy during power supply testing.

• Maximum Discharge Power: 250W
• Maximum Load Voltage: 100V
• Constant Current Discharge Range: 0 to 20A
• Equipment Supply Voltage: DC 12V
• Work Mode: Constant current mode CC
• Maximum Discharge Current Error: 0.7 percent to 0.01A

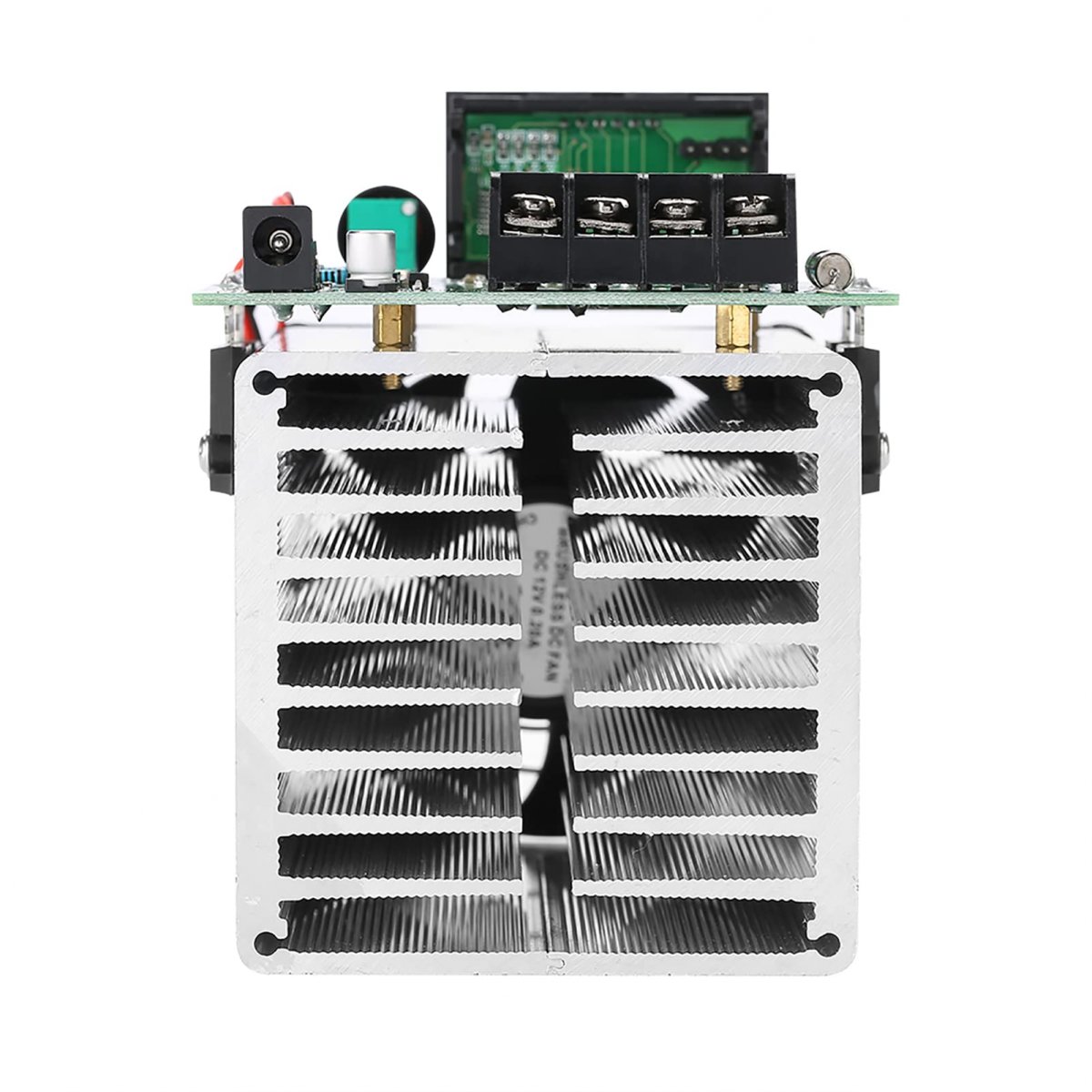

• Cooling System: Double high speed ball bearing fans with large fin heat sink

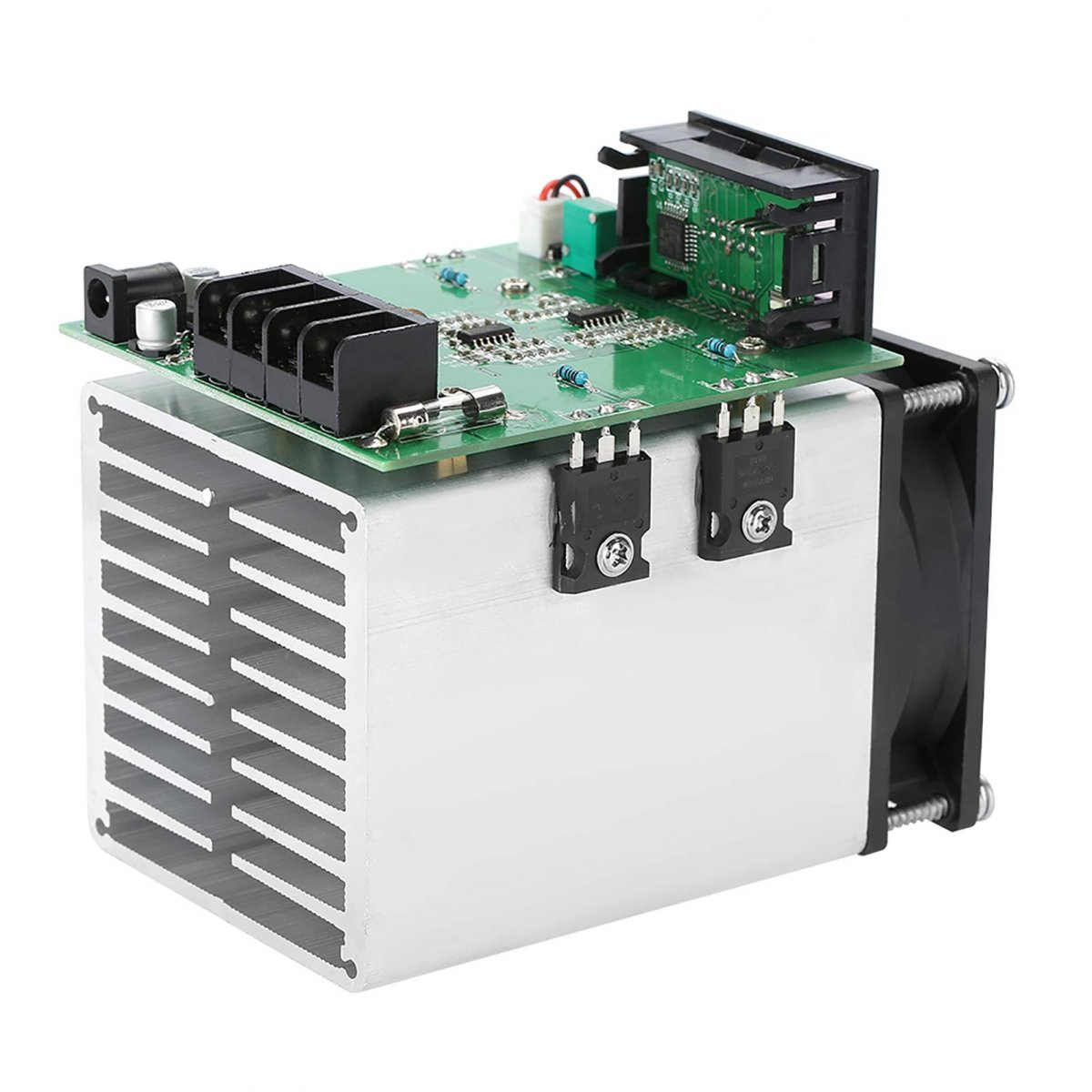

• Components: Original IR power tubes for long term stability
• Wiring: Separated voltage and current connectors to eliminate wire influence on voltage
• Dimensions: Approximately 13 by 9 by 11.5 centimeters

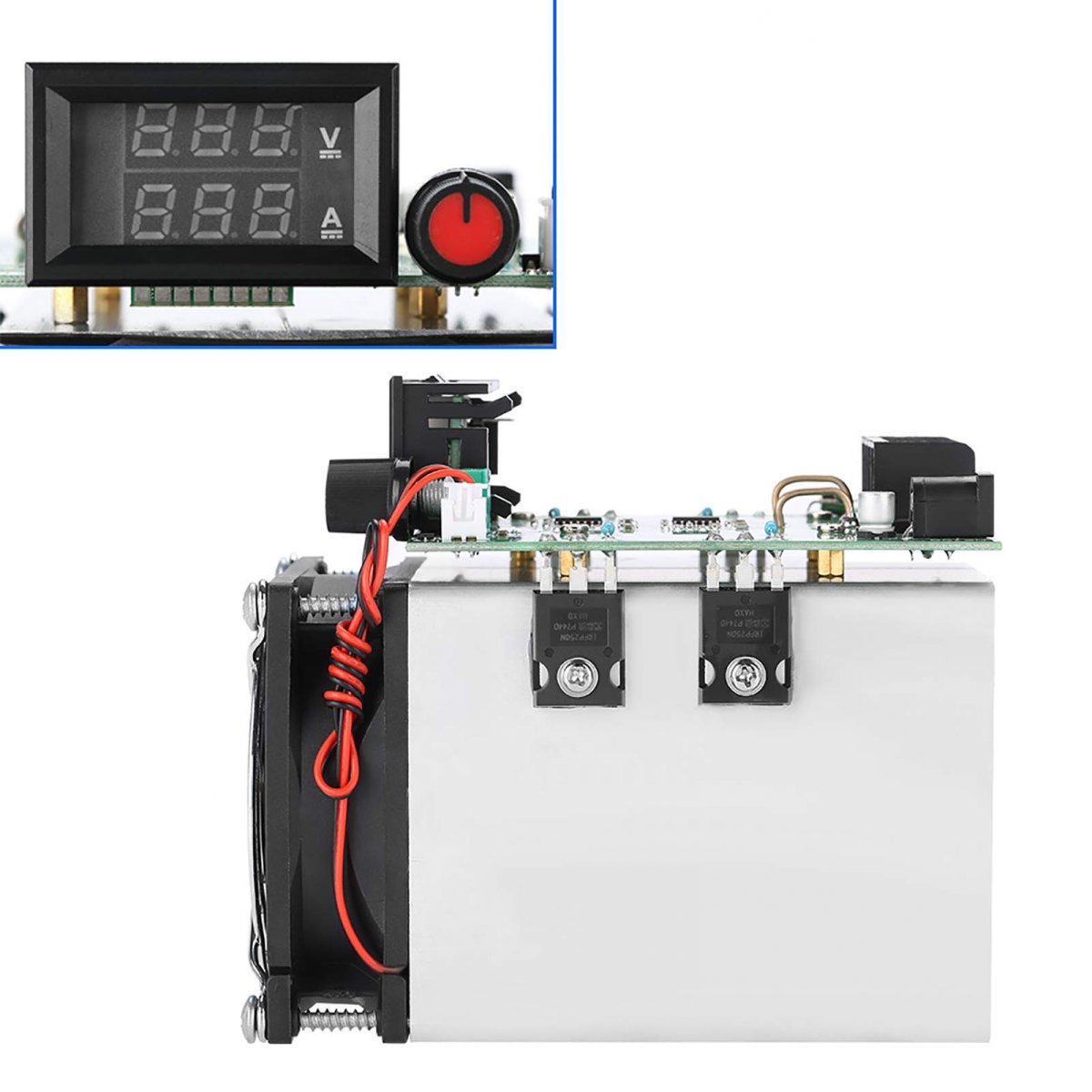

• Visuals: Integrated display for voltage and current monitoring
