Description:

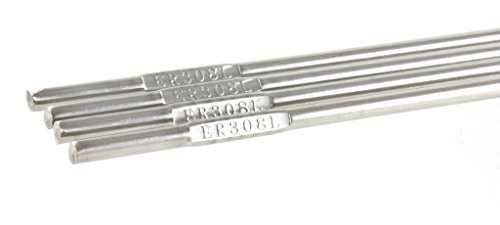

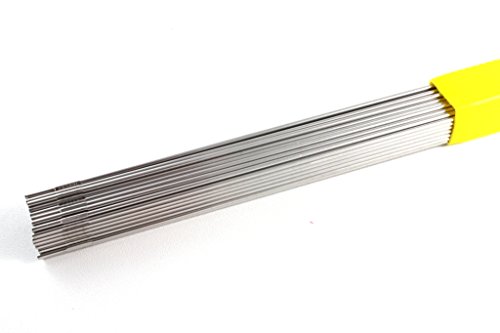

ER308L - TIG (GTAW) - STAINLESS STEEL AWS A5. 9 Welding Positions: All INTRODUCTION: The main component of ER308L is ultra-low carbon 18Cr-8Ni; it is ultra-low C Stainless steel TIG welding rod. The intergranular corrosion resistance of the weld metal is more excellent. Welding smoothly, weld bead smoothly, excellent corrosion-resistance, crack-resistance for acetic acid, sulfuric acid, phosphoric acid and salt corrosion because it contains Molybdenum. USES: Sheet metal on the corresponding stainless steel base metals. High pressure piping and tubing. It is widely used in petrochemical, food machinery, medical equipment, chemical fertilizer equipment, textile machinery such as 022Cr19Ni10 (SUS 304L) and other materials of welding. CHEMICAL COMPOSITION (%): Chemical Composition C Mn Si Cr Ni Requirement ?0. 03 1. 0-2. 5 0. 300. 65 19. 5022. 00 9. 0011. 00 Typical test result 0. 024 1. 72 0. 48 19. 76 9. 83 Chemical Composition Mo P S Cu Requirement ?0. 75 ?0. 030 ?0. 030 ?0. 75 Typical test result 0. 006 0. 018 0. 010 0. 06 WELDING PARAMETERS (AC OR DC): Diameter (mm) ?1. 6 ?2. 0 ?2. 5 ?3. 2 Welding Current (Amps) 50100 100200 200300 300400 NOTES: 1. Shielding gas: Adopt pure Argon gas. Recommendation flow rate: 9-14L/min (AMP 100-200A), 14-18L/min (AMP 200-300A). 2. Tungsten extension: 3-5mm, Arc length: 1-3mm. 3. Wind speed limited: ?1. 0m/s. 4. Use longer backflow of argon shield gas to get better welding result. 5. Mechanic property and metal anti-cracking ability of the welded metal relative by energy pass value on the wire. 6. The welding should be operated in clean surfwithout rust, moist, oil contamination and dust. The above parameters are for reference purpose and depend on diverse factors. Run tests, evaluate and set your welding parameters before starting the welding job. Features: General purpose Stainless Stell TIG Rod Every Package comes with Material Certification The main component of 308L is C-18Cr-8Ni USES: Petrochemical, pressure vessels, food processing machinery, medical equipment, etc Package of 2 Lb.
