Description:

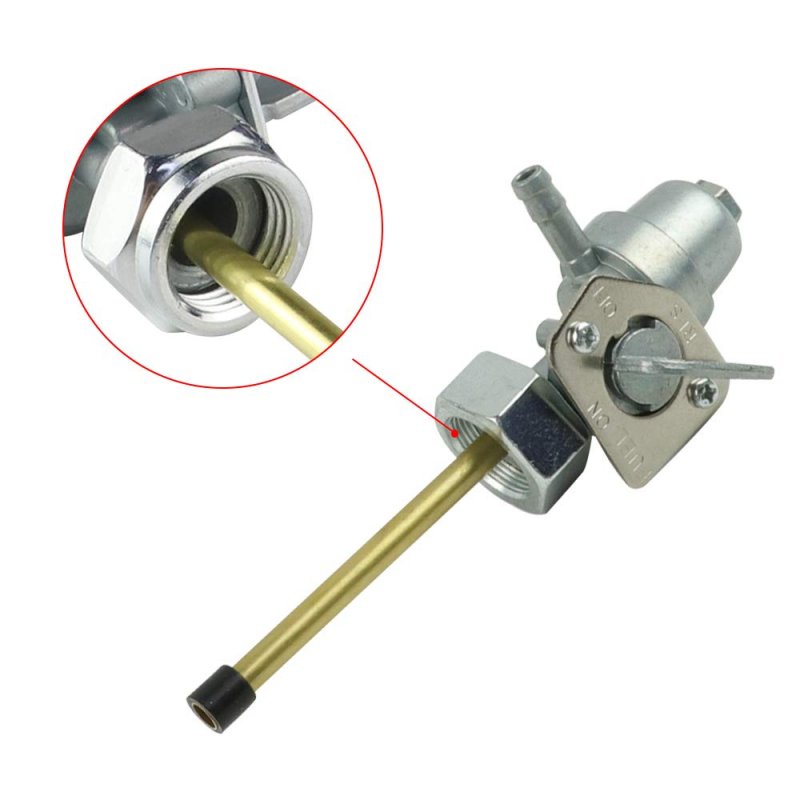

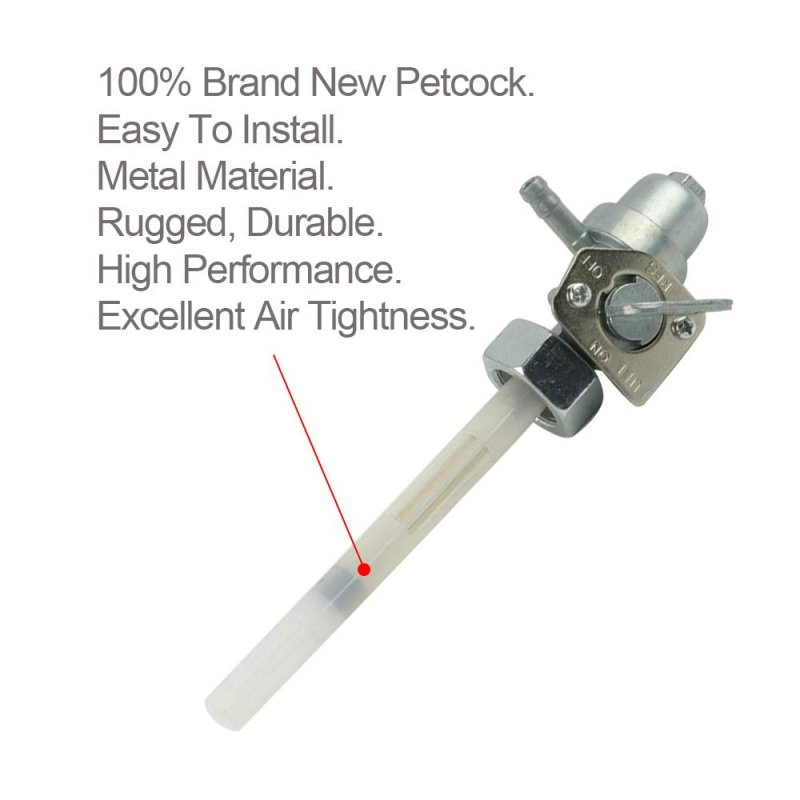

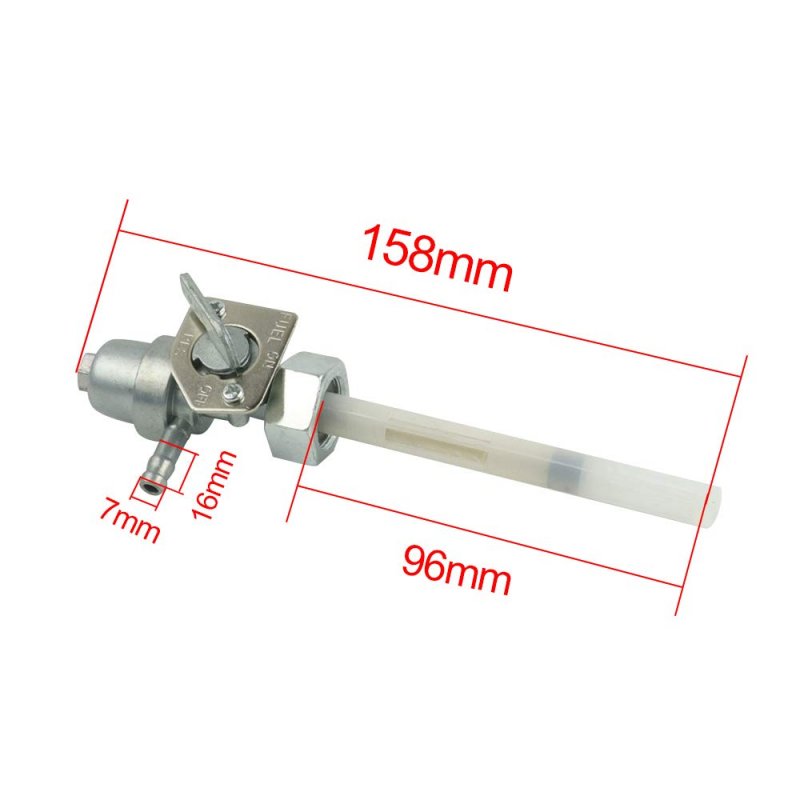

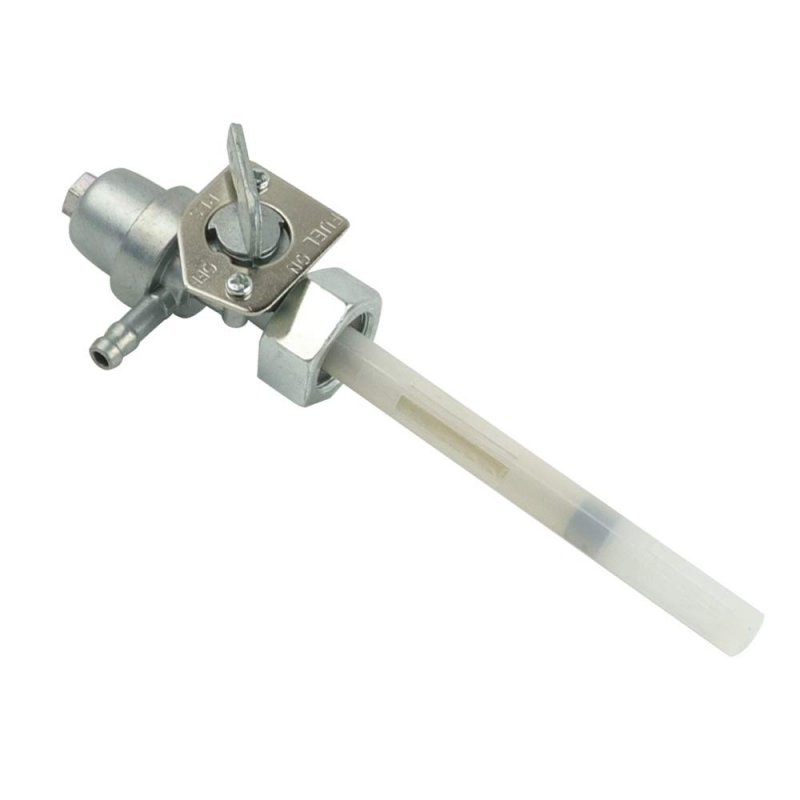

Mount Nut Diameter: 18 x 1.0 mmNut's inside diameter 16.9mm) Fuel Outlet Diameter: 6mm(right side outlet) Fuel Outlet Length: 14mm Straw Length: 105mm Straw Diameter: 10mm Total Body Length: 155mm Hex Nut : 24mm Petcock Outlet OD is 7mm. Positions Switch: ON OFF RESERVE O-ring seal to prevent leaking ON: Allow you to operate with normal fill-ups OFF: Turn it to OFF position when done riding to prevent overflows RESERVE: Allow you to access the lower portion of the gas tank when gas level is low.. Fit Honda TRX and ATC Series Bikes Rebel 250 CMX250 1985-2014 TRX200SX FourTrax 1986-1988 TRX250 FourTrax 1985-1988 TRX250X FourTrax 1985-1992 TRX300 FourTrax 1988-2000 TRX300EX 1993-2008 ATC250ES Big Red 1985-1987 ATC250SX 1985-1987 ATC350X 1985-1986 VT500C SHADOW 1983-1986 VT500FT ASCOT 1983-1984 VF500F INTERCEPTOR 1984-1985 VT1100C SHADOW 1987-1996 1982-1983 FT500 1981-1982 GL500 Silver Wing 1981-1982 GL500I Silver Wing Interstate. Part Number: 16950-MM8-020 16950-MC9-830 16950-MA4-671 16950-KBR-000 16950-HC4-840 16950-HA0-005 16950-MY6-791 16950-KB7-910. Package Includes: 1*Fuel Valve Petcock 1* seal ring.
