Description:

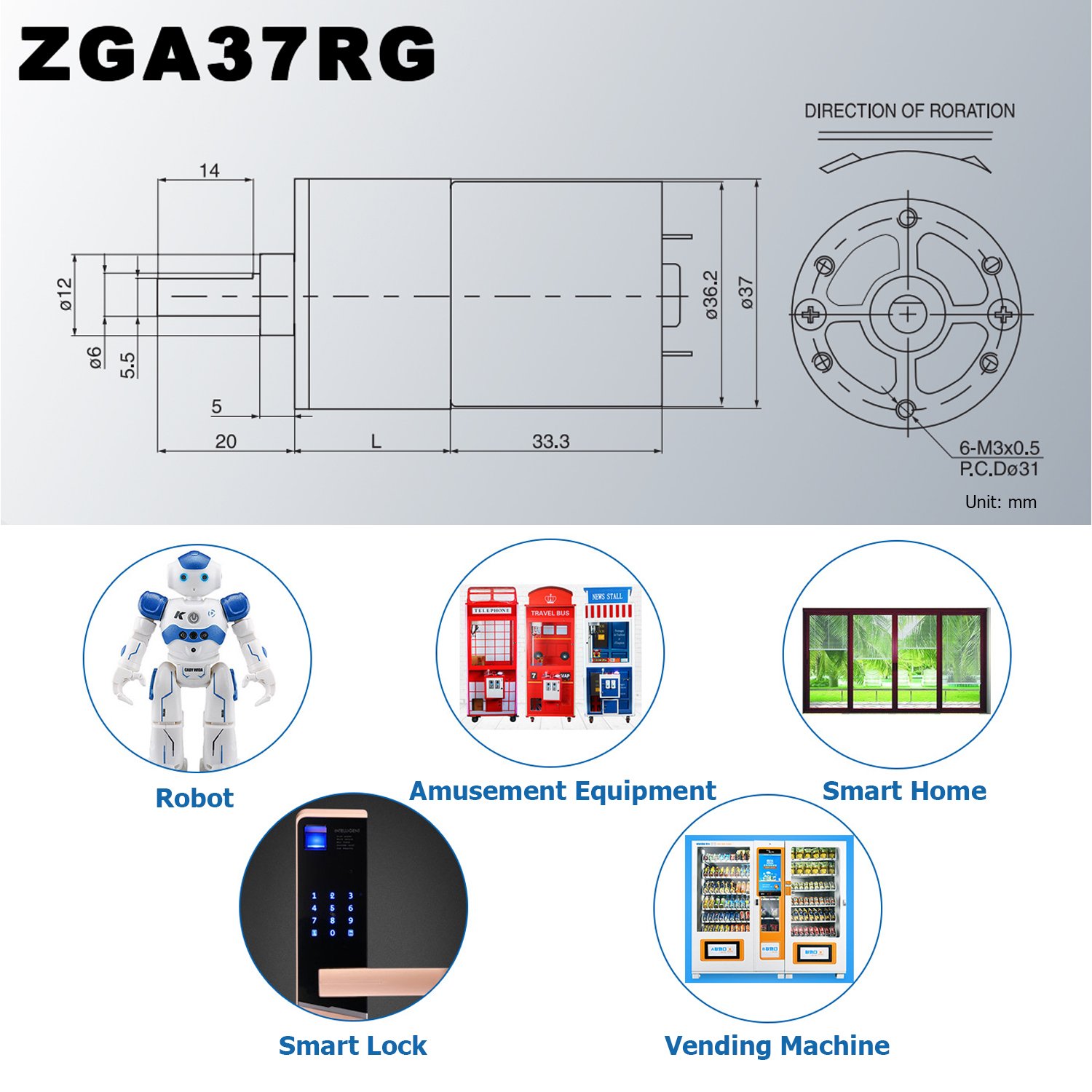

Specifications: Rated Voltage: DC 12V Reduction Ratio: 1: 31. 6 No-Load Speed: 100RPM Rated Torque: 4. 5Kg. cm Rated Current: 1. 1Amp D Shaped Output Shaft Size: 6*14mm (0. 24" x 0. 55") (D*L) Gearbox Size: 37 x 24. 5mm (1. 46" x 0. 96") (D*L) Motor Size: 36. 2 x 33. 3mm (1. 43" x 1. 31") (D*L) Mounting Hole Size: M3 (not included) Application: Vending equipments, pan camera, slot machine, money detector, coin refund devices, automatic doors, peritoneal machine, toys motor etc. Use tolerance: Pay attention to the use of voltage and current range, otherwise the motor performance and motor life will decline. 2. Handling motors: Gently, as far as possible the use of motor shell part. 3. Motor wiring: Red lead to the positive electrode, black lead to the negative pole, if reversed, the motor rotation in the opposite direction. 4. Overload: As far as possible within the specified load range, prohibit motor blocking or close to the stall state for too long time to runs. Otherwise, the motor will burn out. 5. Motor storage: -- Storage temperature: 0 - 40; -- Storage humidity: 15% -90% RH; -- Avoid placing in high temperature, high humidity and corrosive gases. 6. Motor use temperature: 0 - 70 ALL-METAL GEARSHigh-temperature resistance, high abrasion resistance, strong load capacity, sturdy and durable, effectively protect the gear box motor body. PURE COPPER WIRE CORE ROTORWith precision winding technology, the geared motor power instant increased by 30%. D SHAPED OUTPUT SHAFTUsing high hardness steel, good toughness, impact resistance, the quality of the bearing and the service life of the gear motor are improved, extremely durable. POSITIVE-NEGATIVE ROTATIONYou also can adjust the speed, but the motor speed can only be reduced, can not be raised. Low noise and high torque, such as 10rpm can drive 15 kilograms.
