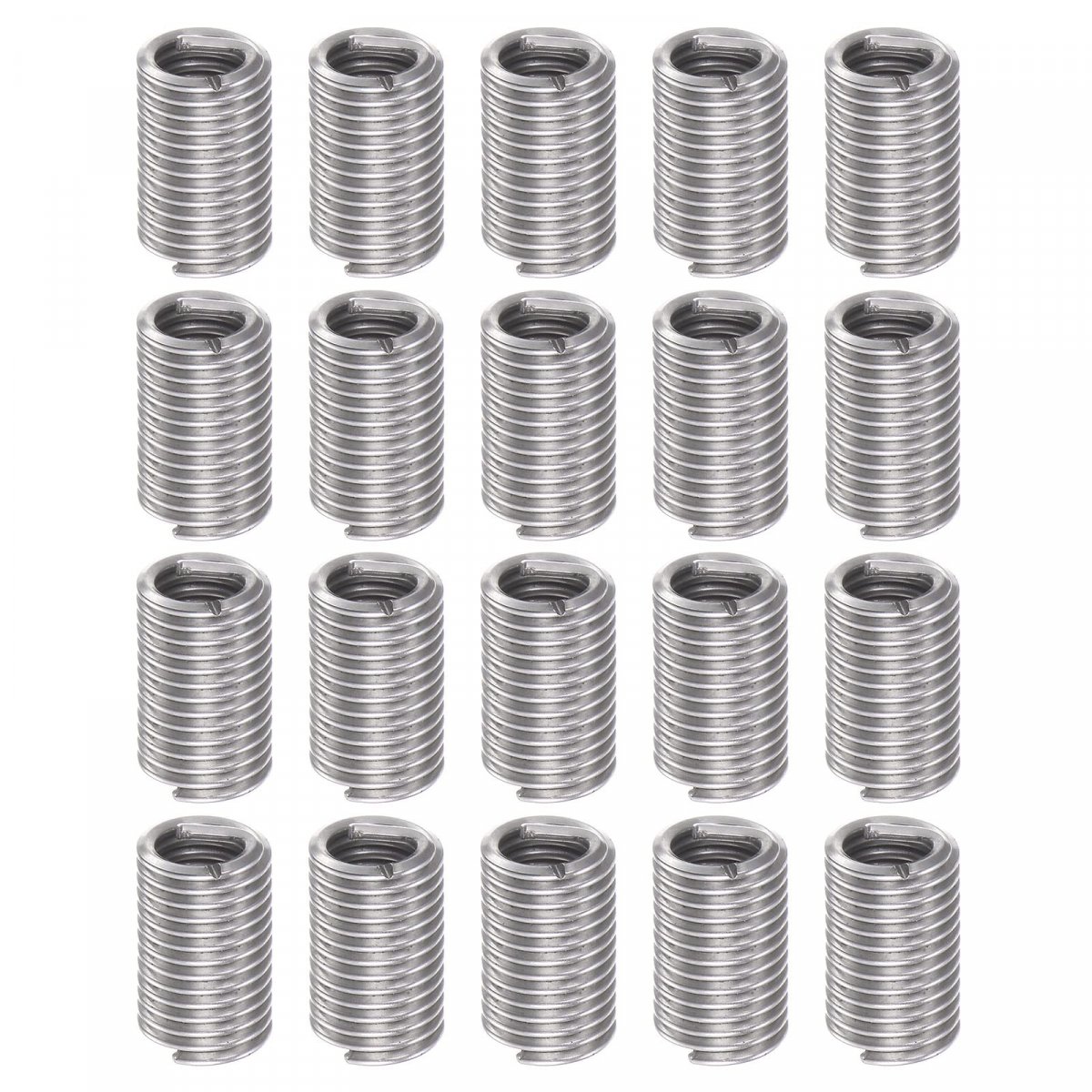

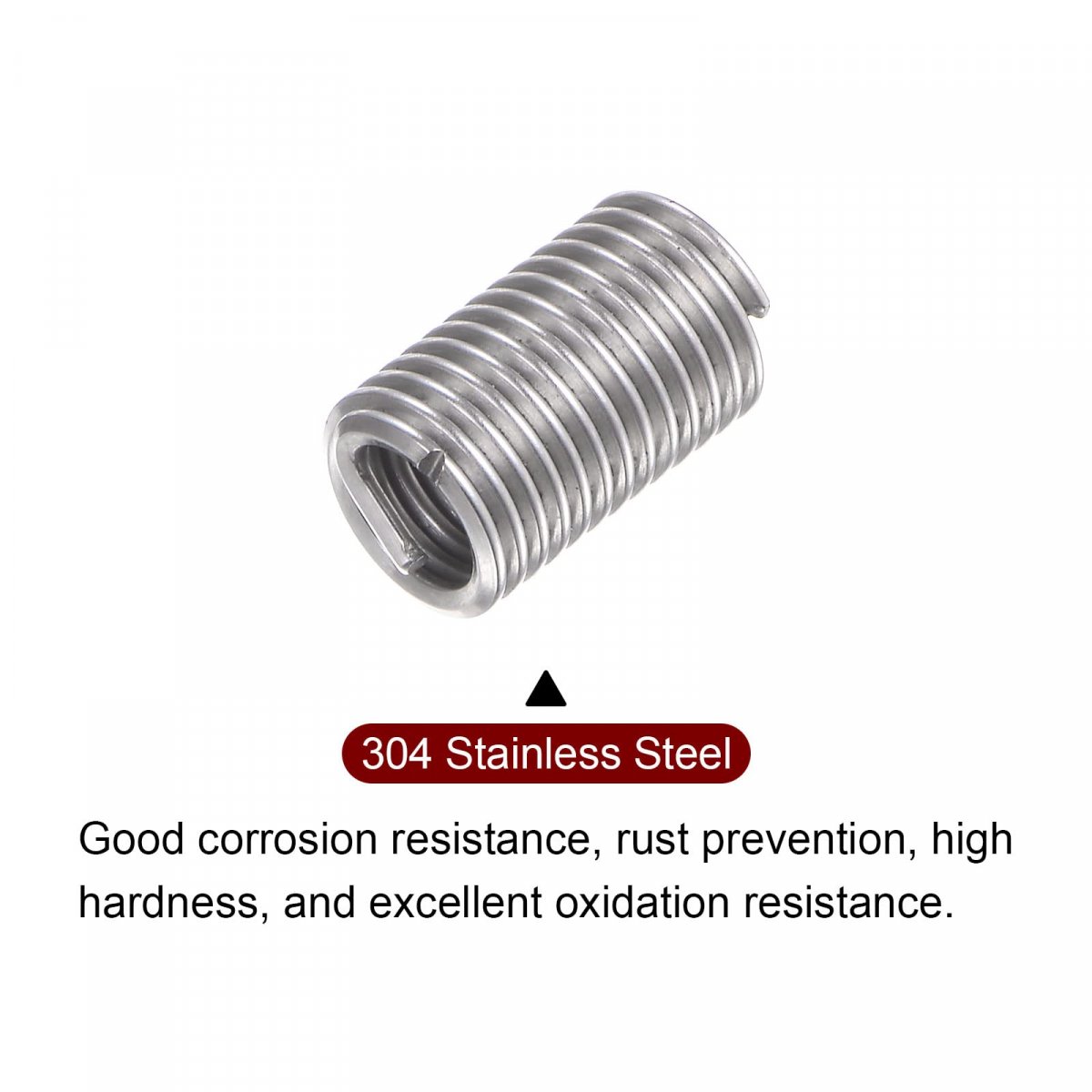

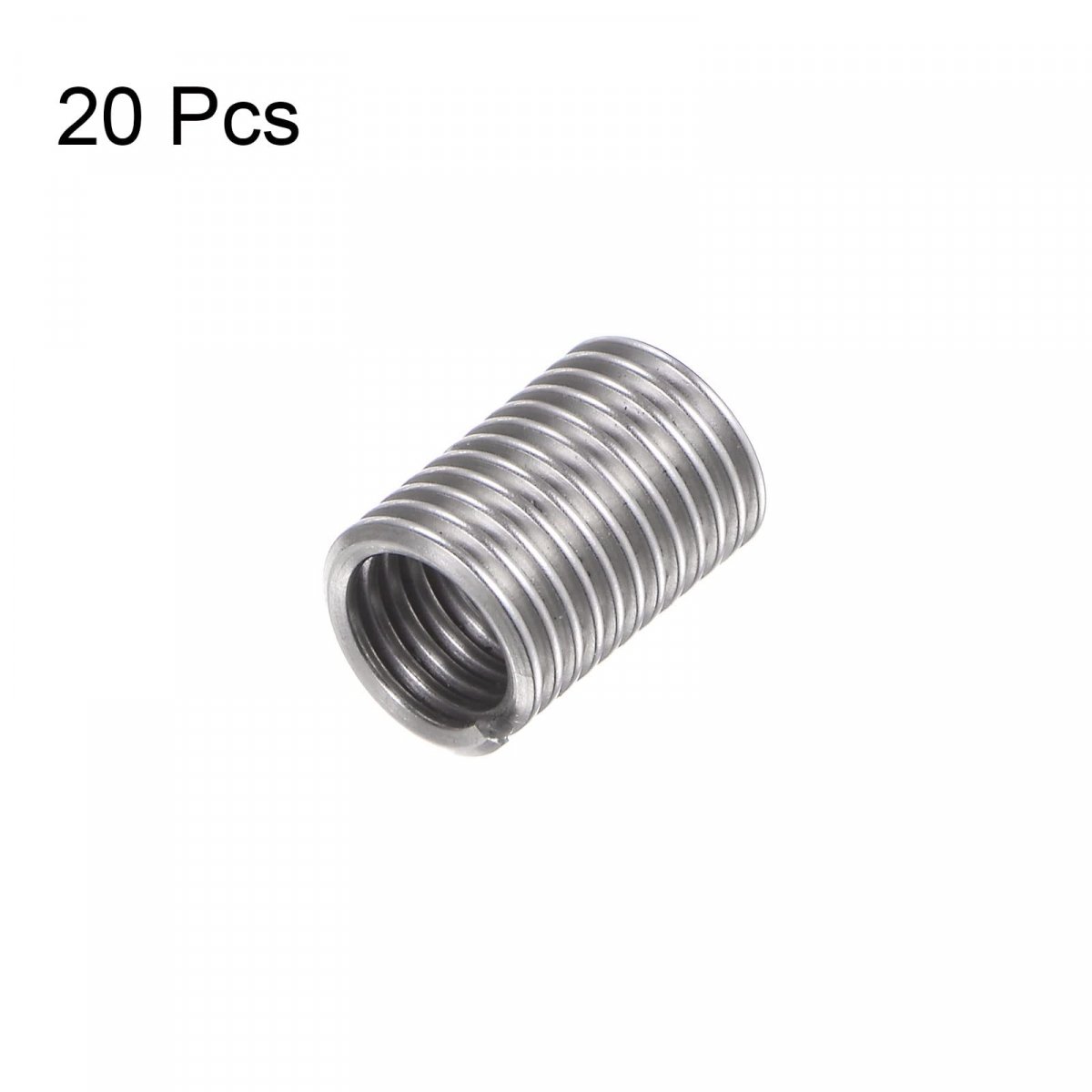

Size - Thread size: 10#-24 UNC; effective length (after Installation): 3D = 14.4mm / 0.57"; free state length: 12mm / 0.47"; free state outer diameter: 6.2mm / 0.24"; type: helical; surface treatment: white washing.. Material - 304 stainless steel has good corrosion resistance, rust prevention, high hardness, and excellent oxidation resistance. It is austenitic stainless steel, which is non-magnetic or slightly magnetic.. Features - Designed with a certain of elastic, and provides an even load. Wire thread inserts have self-tapping capability without pre-tapping the base metal. Large contact surface with finished products, strong tensile force. Strong resistance to vibration, no deformation.. Applications - Mainly used for various low-strength metal and non-metal materials, such as aluminum, magnesium, cast iron, plastic, rubber, MDF, ceramics, fiberglass, wood. Improve the strength and wear resistance of threaded connections, prevent thread loosening and slippage. Note - When the installation amount is small, take the corresponding bolts + nuts, fix the thread insert on the screw and fix it with the same type of nut to make the three in one. Use a wrench to screw the threaded insert into the bottom hole and remove the screw..
