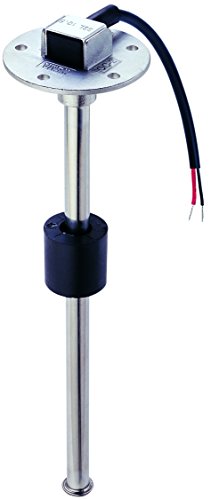

The electric liquid level sending units are widely used in marine, on-road, off-road, generator set, and industrial applications. The electric liquid level sending unit utilizes Reed switch and magnetic field technology. The advantage of Reed switch type level sender over thick-film swing arm type level sender is the Reed switchs durability and reliability. Additionally, in Reed switch level senders the float is the only moving part of the sender, thereby minimizing potential Mechanical failures. Model # 151325 Features: Signal Output: 240 ohms-33 ohms Mounting Method: SAE 5 hole mounting pattern Operating Voltage: 12Vdc/24Vdc Material: Type 316 stainless steel NBR mounting gasket (1Pcs) and screw (5Pcs) included.
