Description:

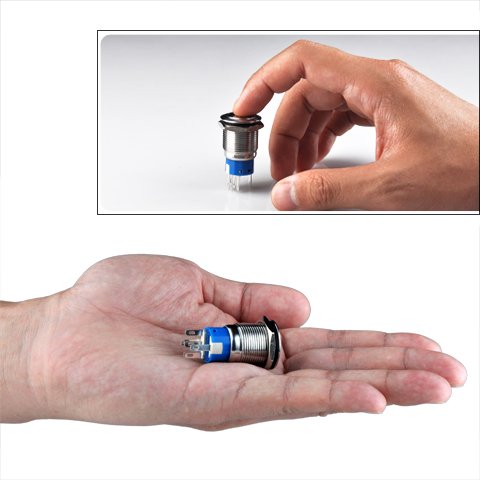

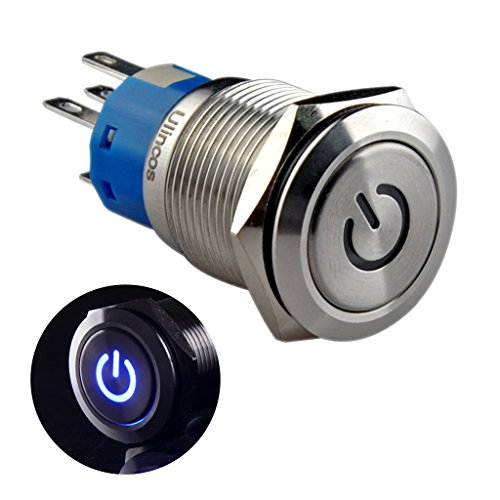

The Latching Pushbutton Switch U19C1 is a rugged SPDT panel mount switch featuring an illuminated blue LED and stainless steel construction for durable on off control of electrical equipment.

• Switch Type: Latching push button
• Circuit Configuration: SPDT 1NO1NC
• Operation Mode: ON OFF
• Material: Stainless Steel enclosure
• LED Color: Blue
• Voltage Rating: LED rated for 5 to 12V
• Current Rating: Up to 5A at 250VAC or 30VDC
• Protection Level: IP67 and IK10 splash resistant
• Mounting Hole Size: 19mm or 3/4 inch
• Head Diameter: 22mm or 7/8 inch
• Thread Depth: 16mm or 5/8 inch
• Total Depth including contacts: 38mm or 1.5 inches
• Mechanical Life: 500,000 cycles
• Connector Type: Plug In
• Compatible Applications: Car lights, chassis lamps, fog lamps, and dome lights
