Description:

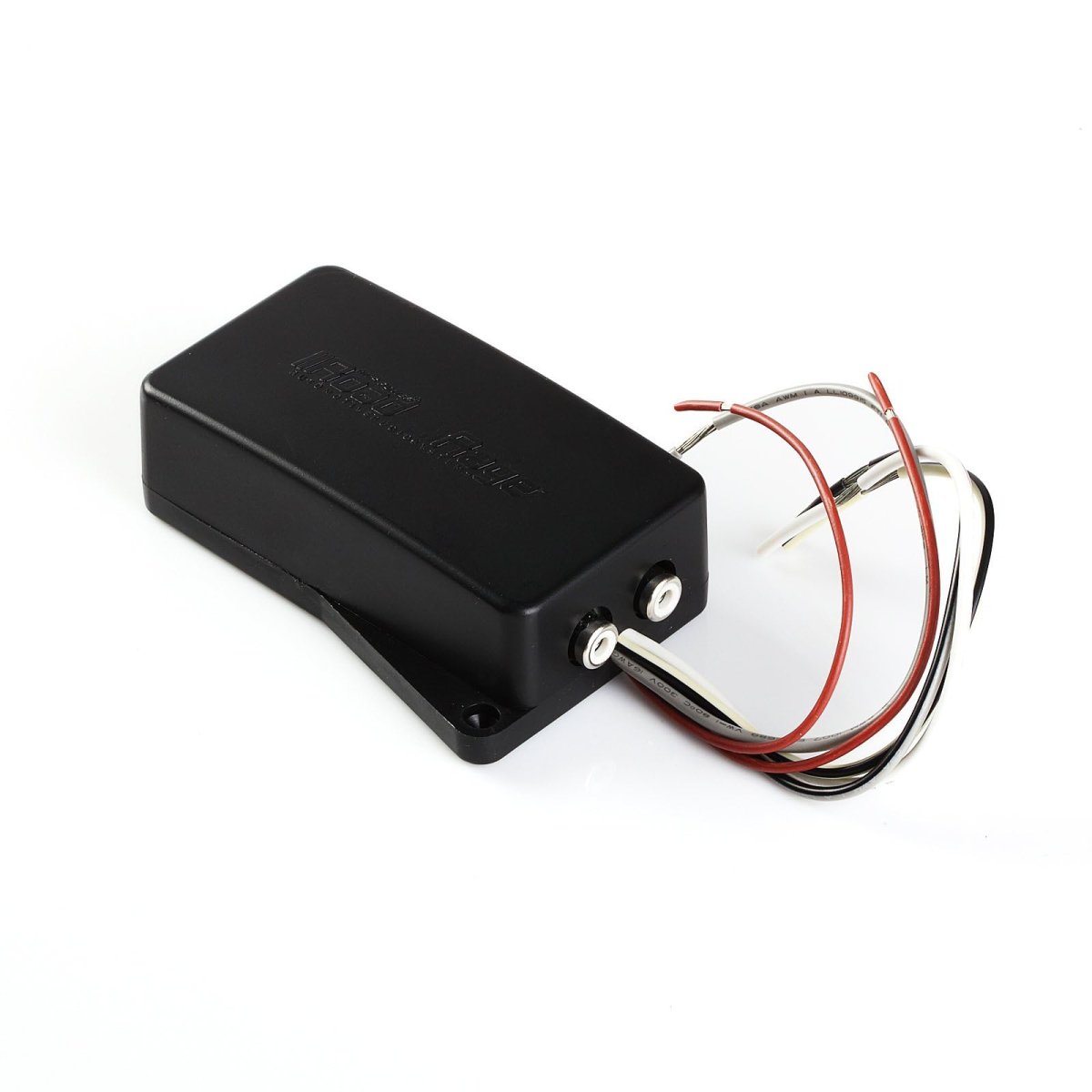

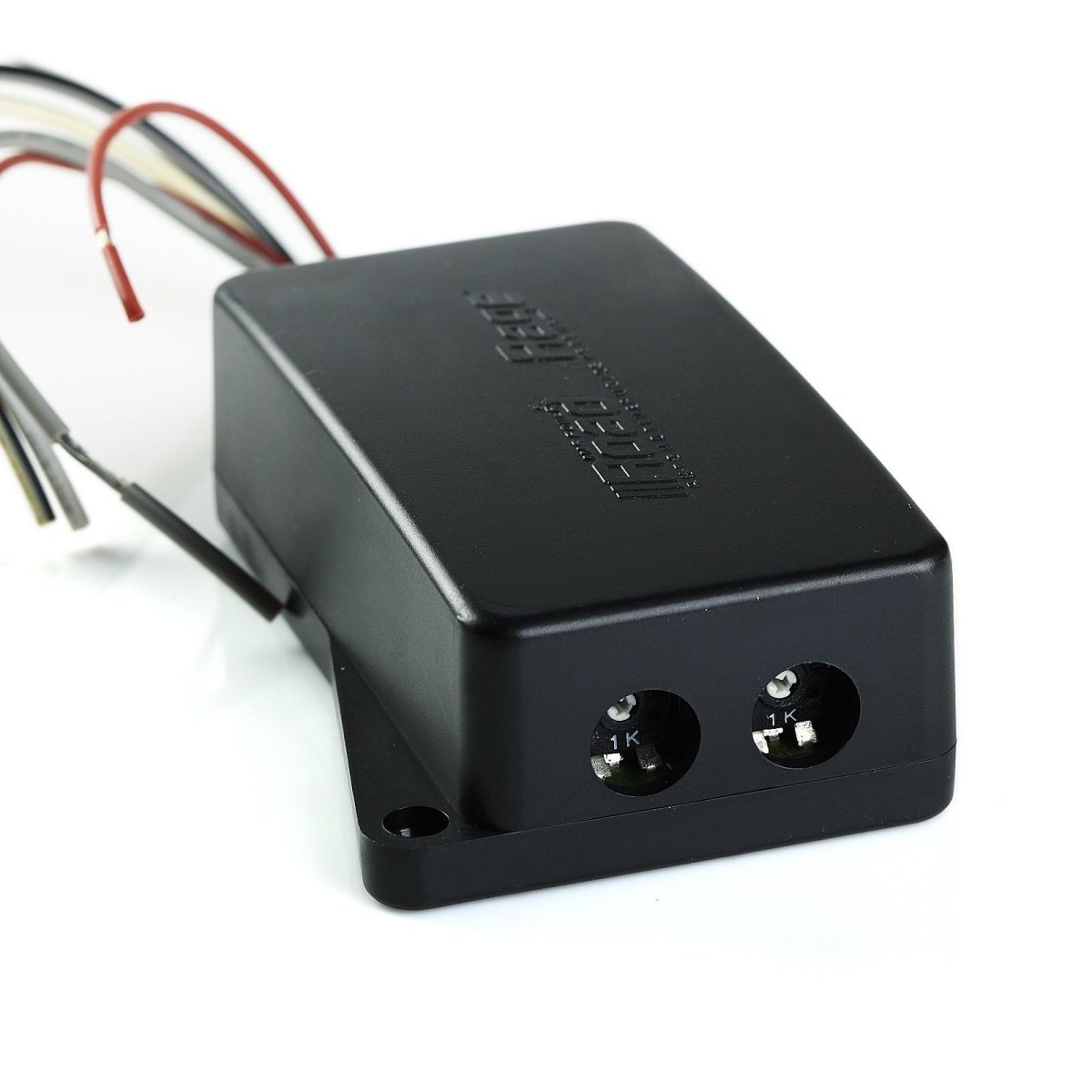

The Line Out High Low Output OutAmp Adjustable RCA Converter Adapter allows you to add an amplifier to a factory radio by converting speaker level output to a lower level RCA input.

• Compatible Radio Output: 2 to 40 watts RMS
• Frequency Response: 0.5 dB linearity from 20 to 20,000 Hz
• Noise Isolation: Integrated audio transformers
• Subsonic Reduction: Rolls off below 20 Hz
• Adjustability: Phase adjusted with adjustable pots for both channels
• Installation: Connect gray and gray black wires to right speaker and white and white black stripe wires to left speaker
• Grounding: Brown wires for ground connection if no sound is present
