Description:

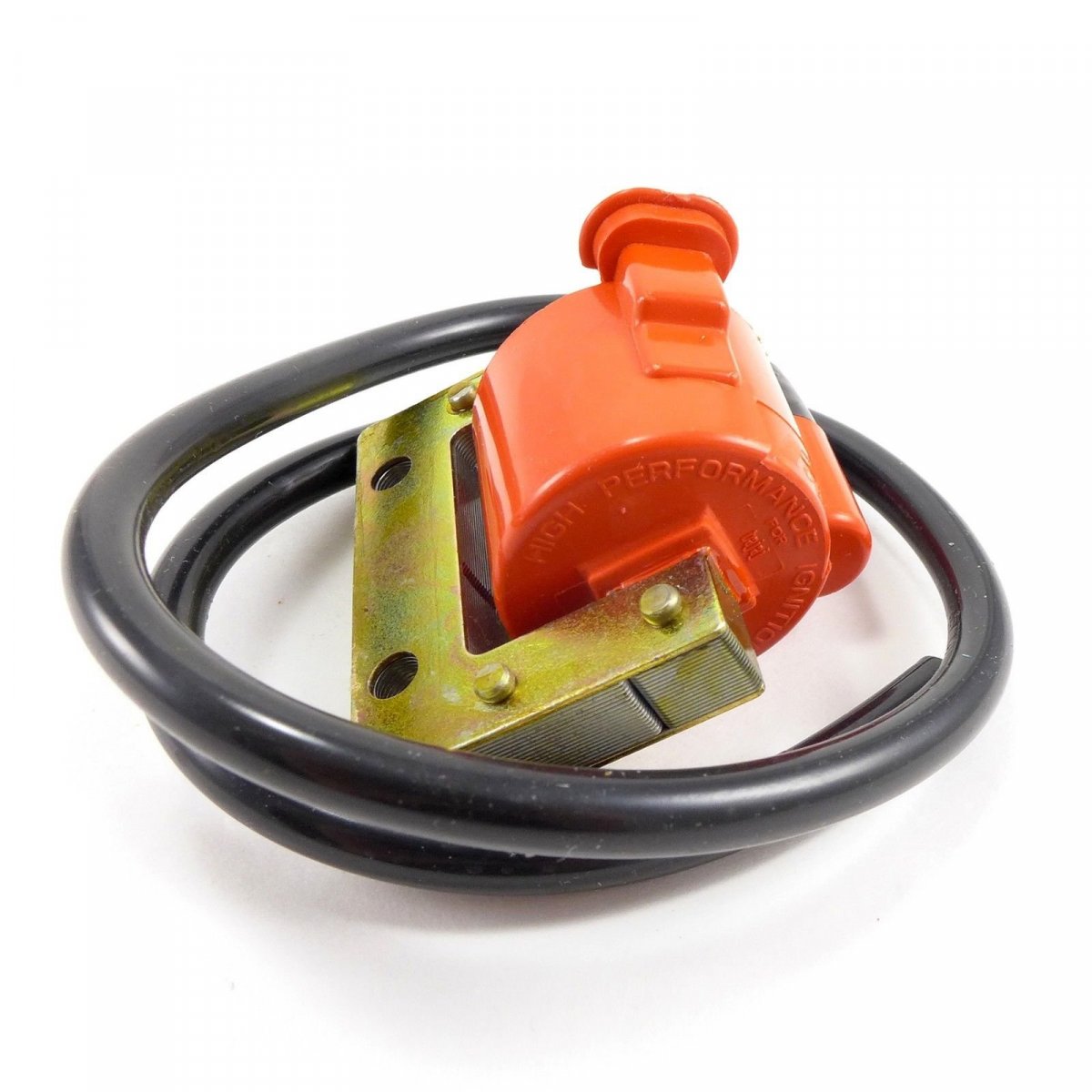

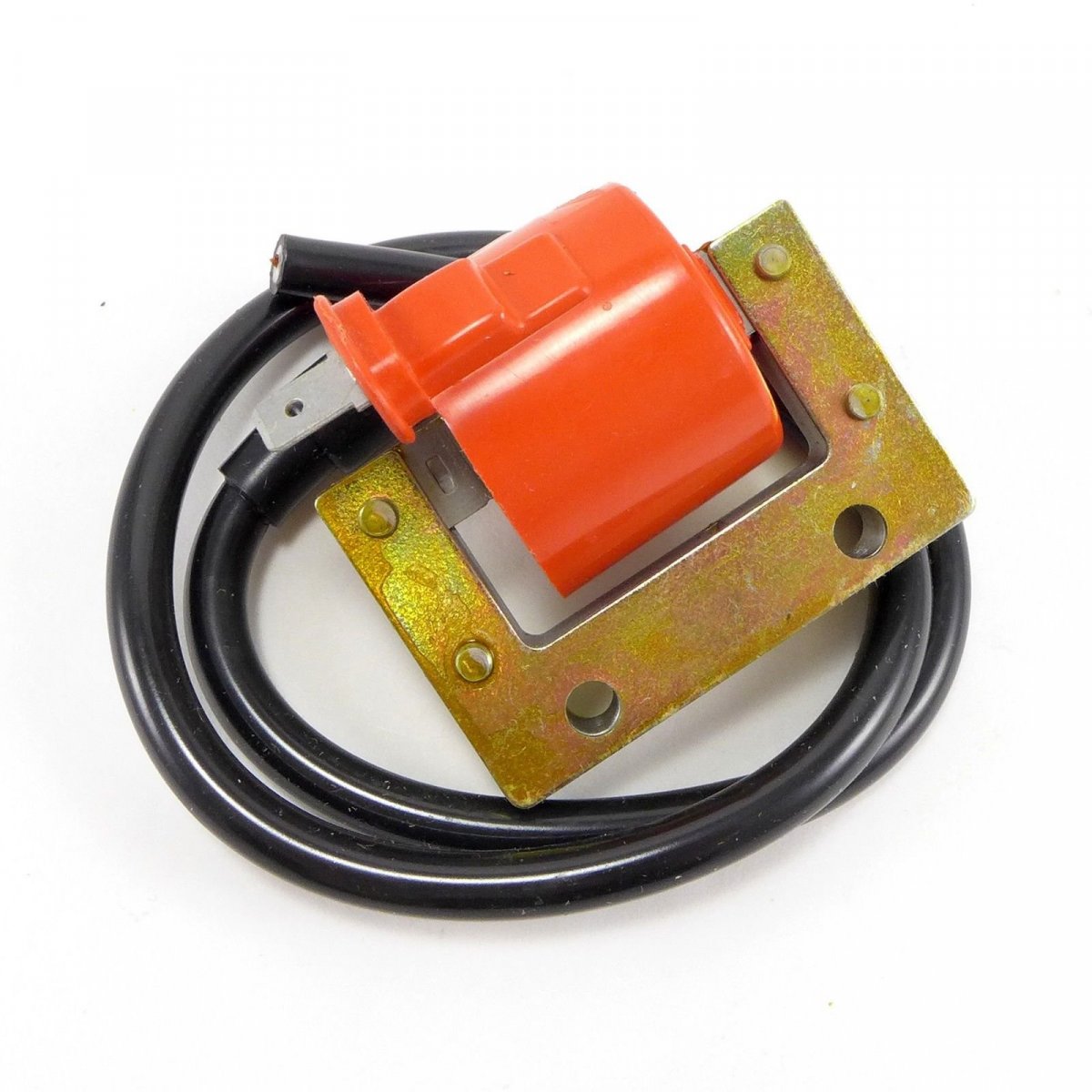

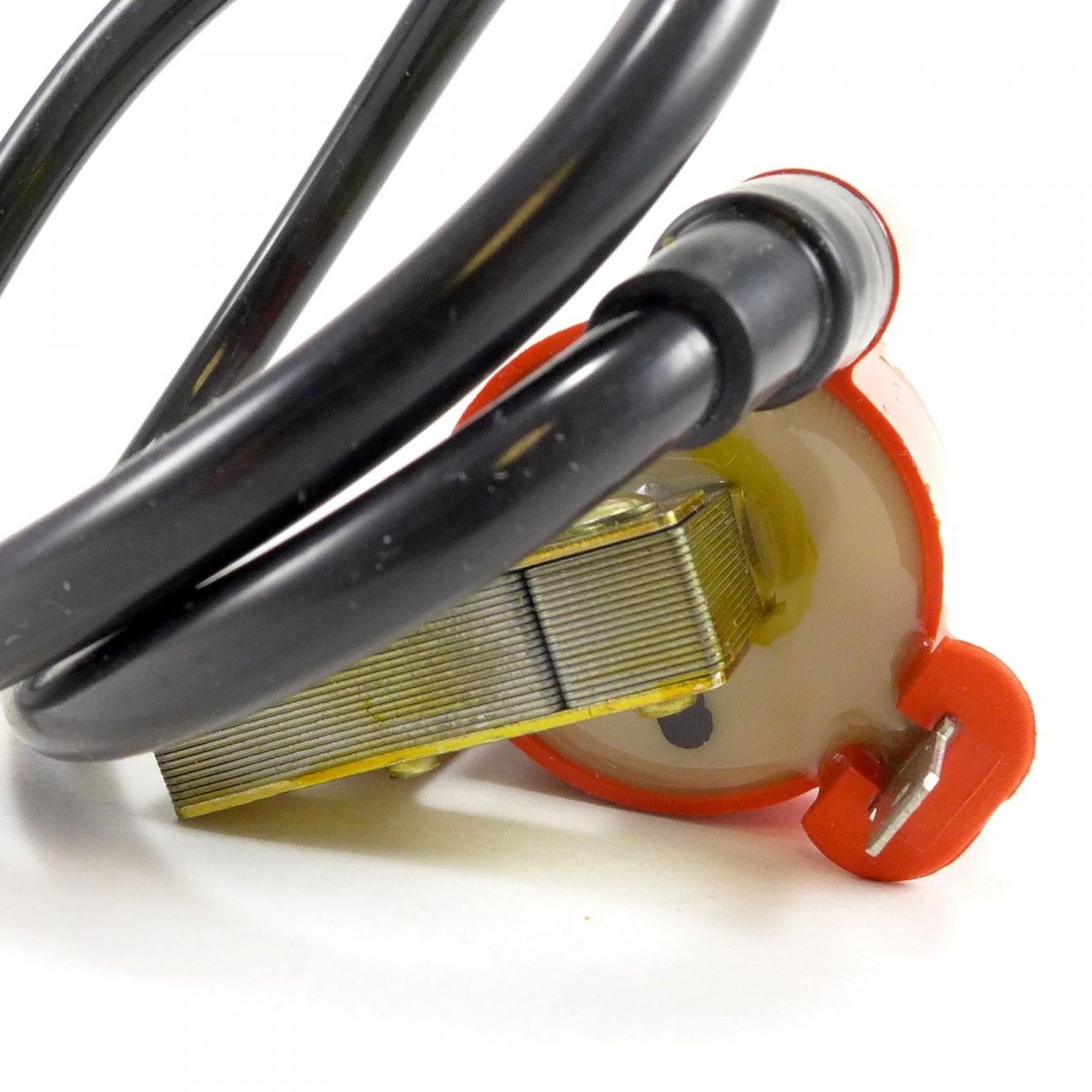

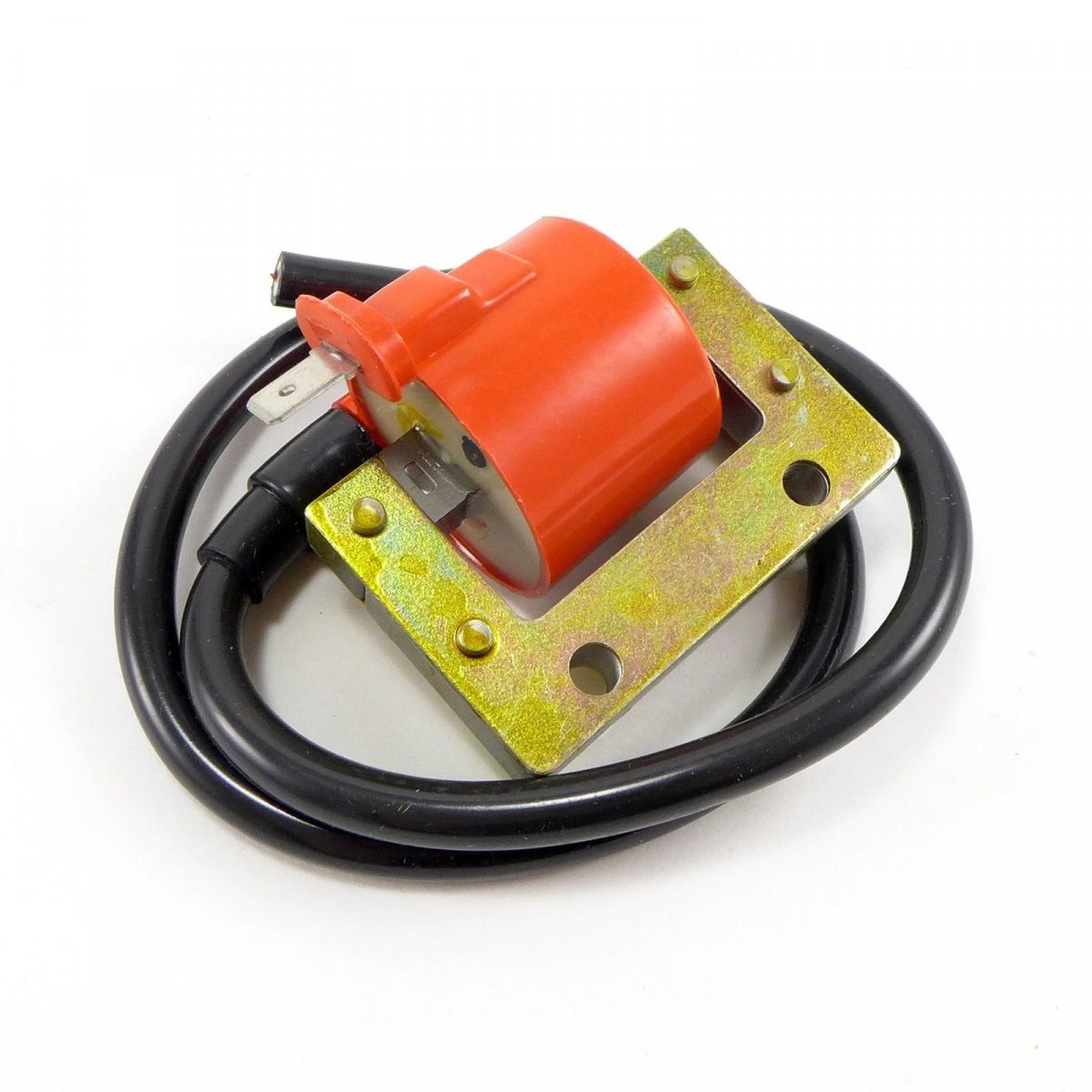

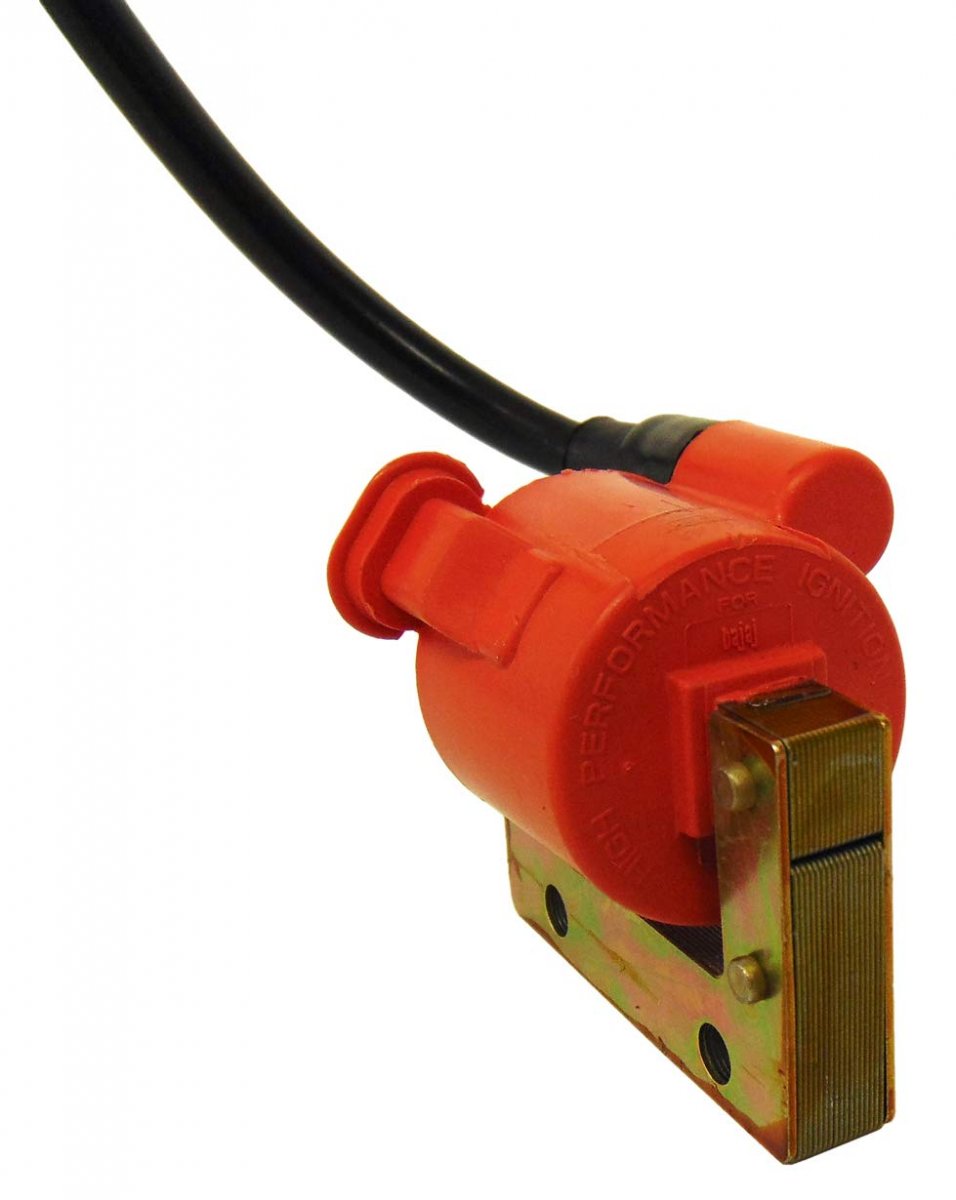

High Performance 6 volt or 12 volt / single Output Ignition Coil.. Manufacturer states that it will work with cdi or points.. Male connection is for the wire coming from your ignition switch. Then connect the wire from the points to one of the mounting bolts of the coil. That mount needs to be grounded to the bike. Mounting position of this coil may be different than your original. Some modification may be needed to properly mount this coil on your bike.. Mounting points (center to center) 32mm. Overall length end to end 56mm. Overall width of main body 35mm. Overall height of main body 52mm. Spark plug wire length 469.9mm or 18.5in. Primary Resistance 1.0 ohms +/- 10%Secondary Resistance 6.1 kohm +/- 10%..
