Description:

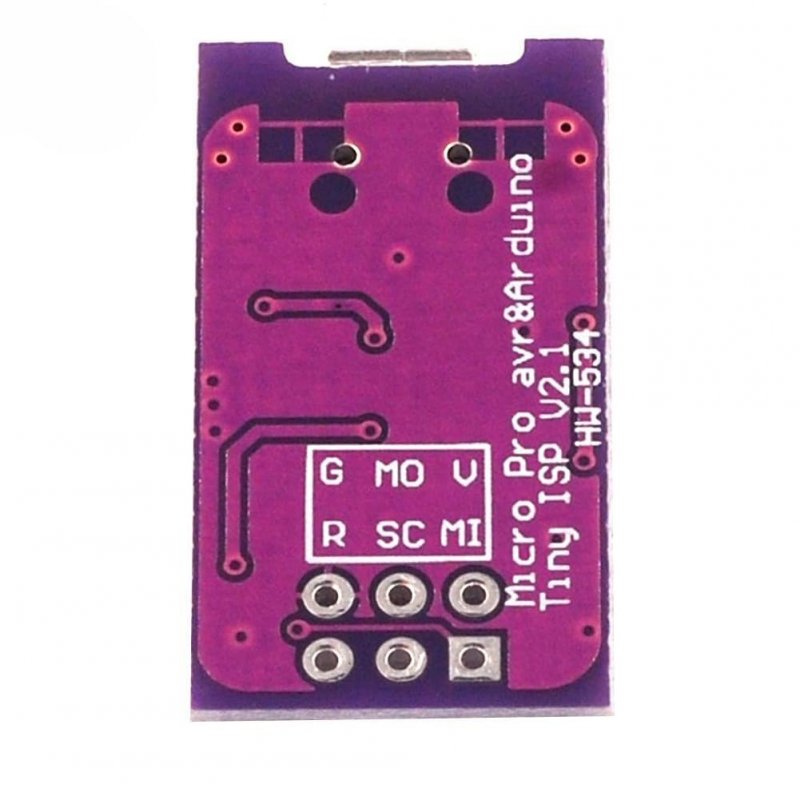

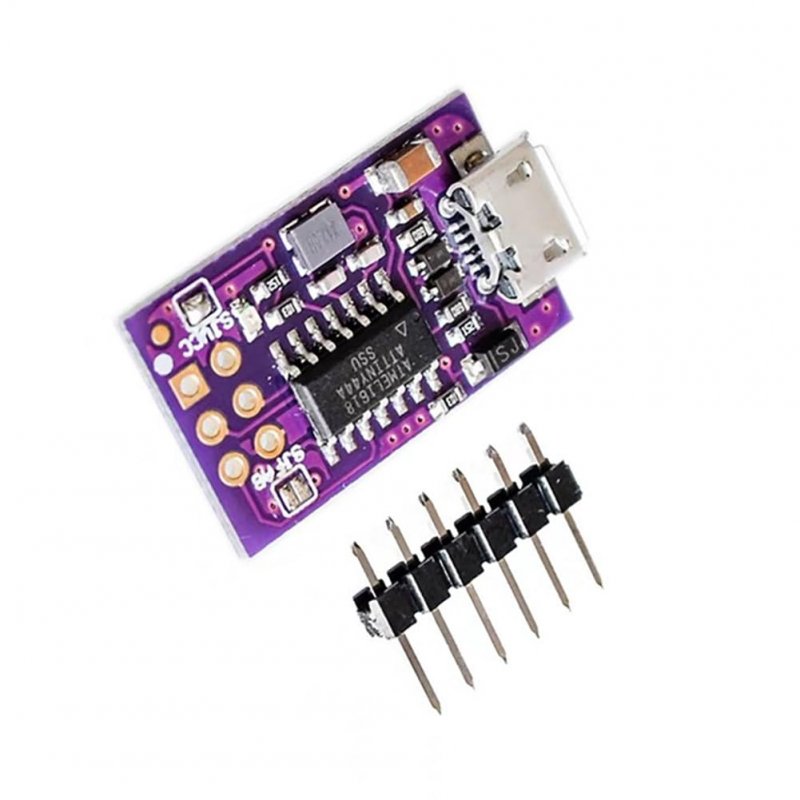

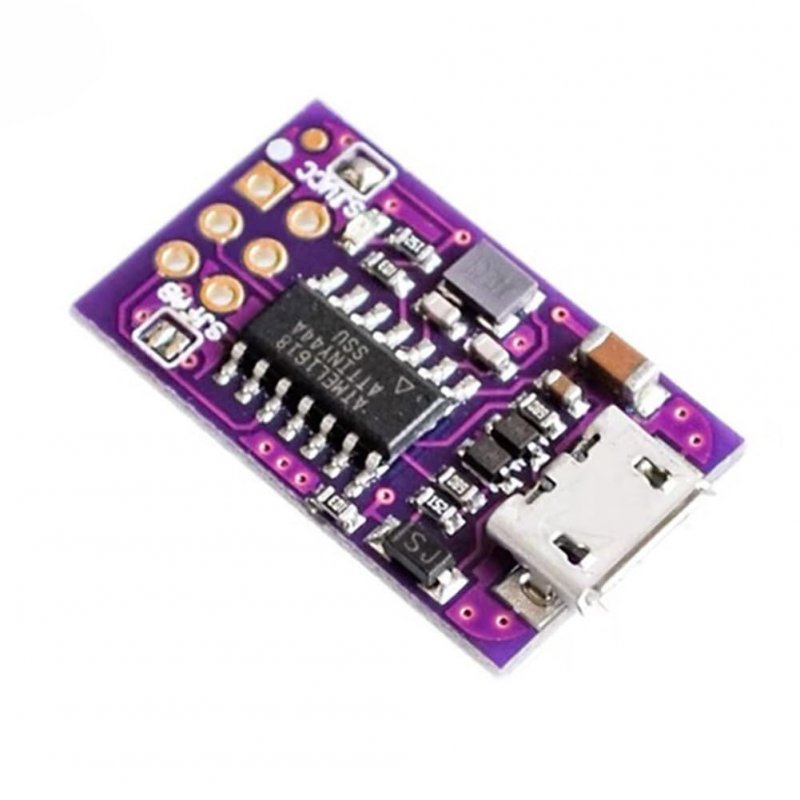

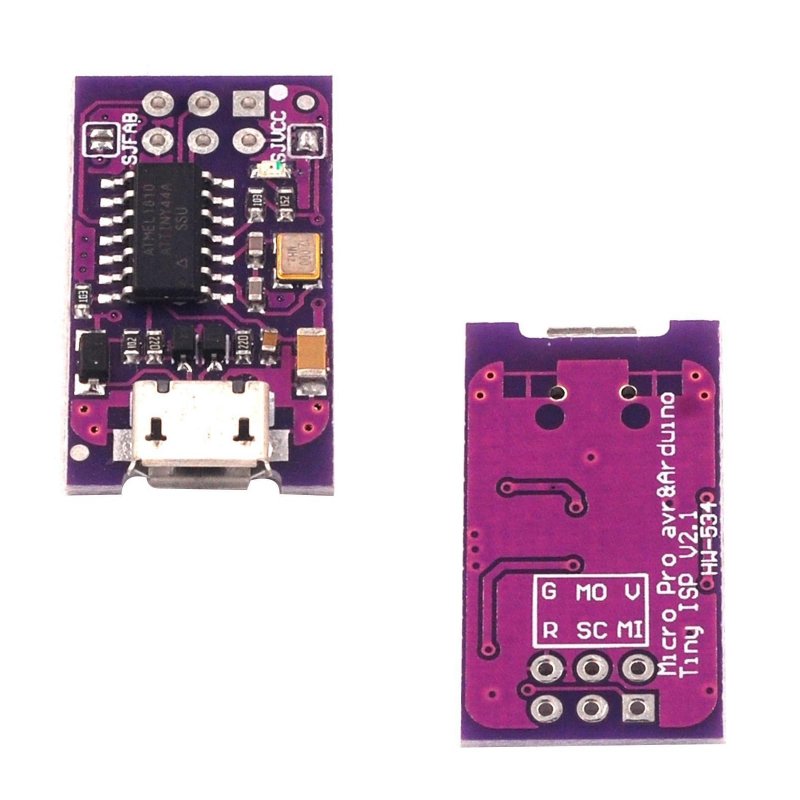

Supply voltage: 5 V; Microcontroller: ATtiny44 (datasheet); Connection to PC: micro USB; Connection to target board: ICSP. By IDE and compatible usbtinyisp, we can burn bootloaders onto the chip and actually program any Atmel AVR microcontroller with the powerful AVR ISP programmer.. The tiny ISP programmer is capable of providing a 5V supply voltage to the board being programmed. To power the board through the ISP, the SJVCC jumper on the board must be turned off.. Using this programmer you can upload sketches and burn a Bootloader on any AVR based board. by uploading sketches using an external programmer you can remove the bootloader and use the extra space for the sketches. For the ISP can also be used to burn the bootloader, so you can recover the chip if the bootloader is accidentally corrupted. Burning a bootloader is also required when you are using a new ATmega microcontroller and you want to use the bootloader to upload sketches over a USB serial c. USBtinyISP is designed for AVR, based on the USB connector ISP download.Board size: 23x14mm (approx.).
