Description:

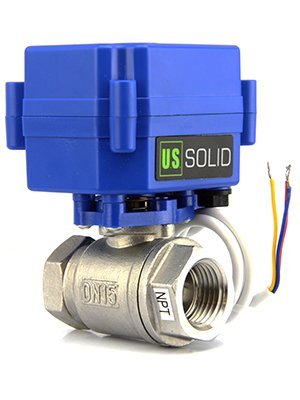

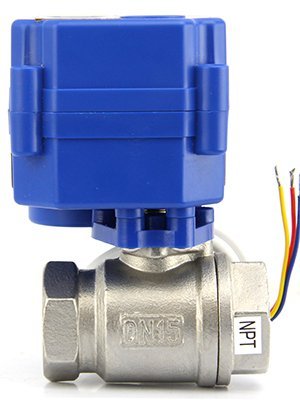

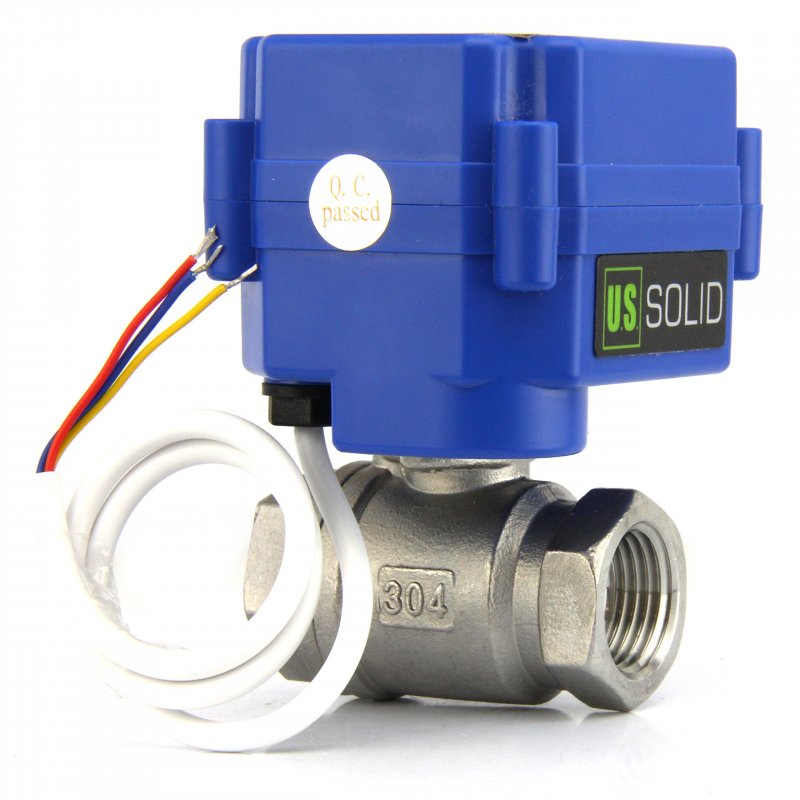

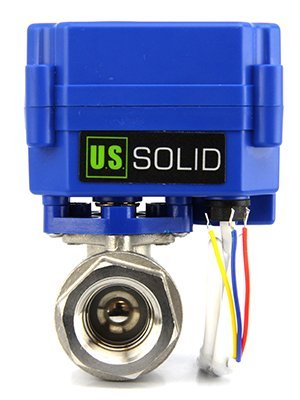

This 0.5 inch motorized ball valve is an NSF certified 304SS electrical valve designed for safe drinking water and industrial applications. It provides a reliable, energy efficient alternative to solenoid valves with a long lifespan of 80,000 to 100,000 cycles.

• Material: SS304 Stainless Steel
• Certification: NSF Certified
• Voltage: 9V to 24V AC DC compatible
• Operation Time: Opens or closes in 3 to 5 seconds
• Power Consumption: Zero power consumption once fully open or closed
• Control Setup: Simple 3 wire, 2 point control
• Threading: 0.5 inch NPT threading
• Bore Type: Full Port
• Seal Material: PTFE
• Enclosure Rating: IP65 dust and water spray protection
• Max Pressure: 1.0 MPa
• Max Torque: 2 Nm
• Max Power: 2W
• Flow Medium Temperature Range: 0 degrees C to 90 degrees C
• Ambient Temperature Range: -10 degrees C to 40 degrees C
• Compatibility: Compatible with Arduino automation systems
