Description:

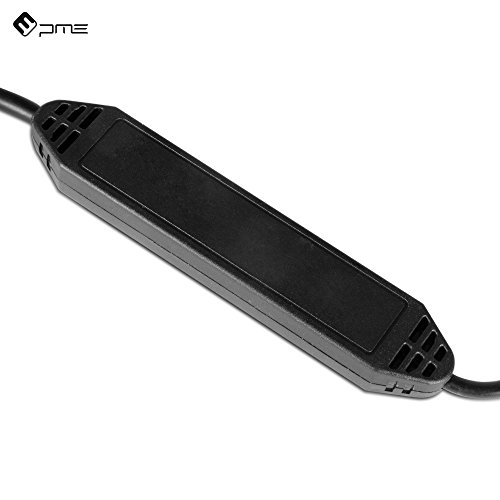

How to set up the wires: 5 wires for simple set-up: Yellow- Sync, White - Flashing, Red - VDC(fuse @3A), Black - Chassis Ground, Blue - Wig Wag Specification: Voltage: DC 12-24V Flashing Patterns: 16 Patterns Type: Hide A Way light Power: 24W Numbers of LED: 8 LEDs Led type: High Power Leds Cable length:10ft (3m) Applications: police/ambulance/fire/truck Dimension:38. 5mm L x 38. 5mm W x 18. 16 flash patterns, wig wag allowed,sync-able between multiple units, last flash pattern memory recall. Completely Waterproofed, Strong fog penetrability, Dust-proof, and Corrosion resistant. Can be mounted almost anywhere, into a housing reflector, bumper, or onto any exterior surface. Fit all automobiles and devices equipped with a 12 to 24 Volt DC power source Self-contained, external flasher not needed, easy operation; Any inquiry and technical service be available for any time.
