Description:

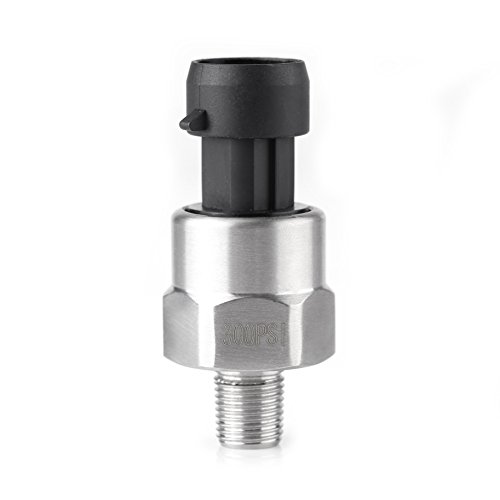

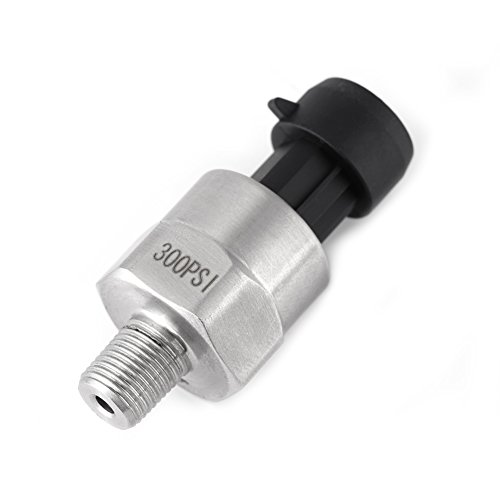

Specifications: Material: Stainless steel Voltage: DC 5V Pressure: 30 psi, 100 psi, 150 psi, 200 psi, 300 psi, 500 psi (Optional) Thread Type: 1/8" NPT 300 PSI Input: 0-300 psi Output: 0. 5-4. 5V linear voltage output. 0 psi outputs 0. 5V, 150 psi outputs 2. 5V, 300 psi outputs 4. 5V Accuracy: +/-0. 5%FS Wiring: Red: +5V; Black: ground; Green: signal output Overload Capacity: 2-4 times of rated pressure Working Temperature: -40+120 Compensation Temperature: 0+80 Protection Class: IP67 Pressure Medium: Oil, gas and water which is compatible with 316L stainless steel Load Resistance: (supply power-6. 5V/0. 02A) Long-term stability: Less than 0. 1%FS/year Temperature Effect on Zero: Typical: 0. 02%FS/; Maximum: 0. 05%FS/ Temperature Effect on Sensitivity: Typical:0. 02%FS/; Maximum:0. 05%FS/ Shock Resistance: 1000g Anti-Shock: +/-0. 01%FS(X,Y,Z axes, 200Hz/g) Response Time: 1ms Insulation Resistance: > 100m 500VDC Explosion-proof Class: ExiaTTCT6 Electromagnetism Compatibility: EN50051-1. Package Includes: 1 x Pressure Transducer (With cable) Model # LEPAZA60116 Features: Its an advance pressure transducer than traditional mechanical pressure transducer 2%FS small output error, including nonlinear, hysteresis error and repeatability, full temperature range 1/8"NPT Thread. Light weight and small size, convenient to install and operate It has complete surge voltage protection function Works for oil, fuel, diesel, gas, water, air pressure, can be used in oil tank, gas tank, diesel tank etc.
