Description:

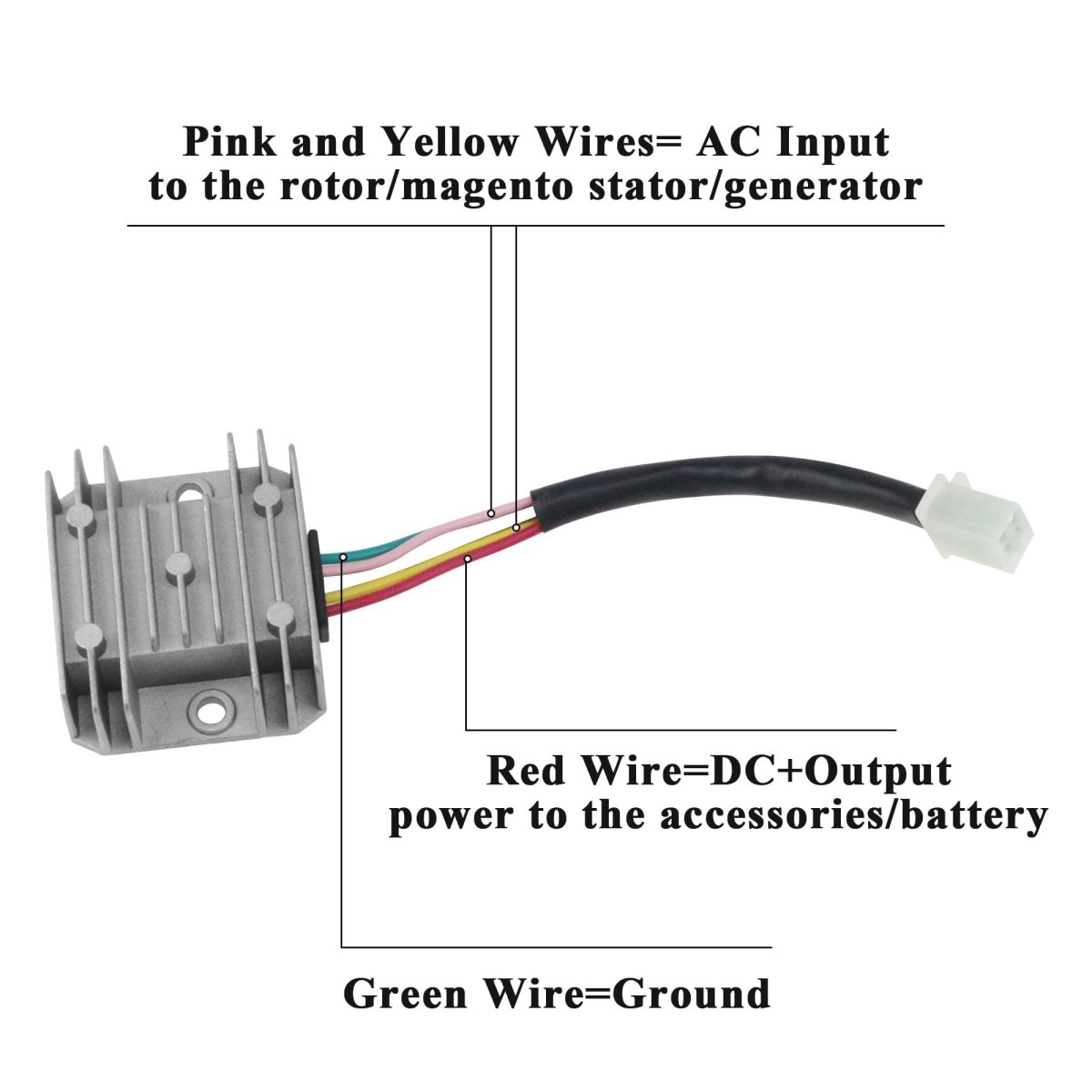

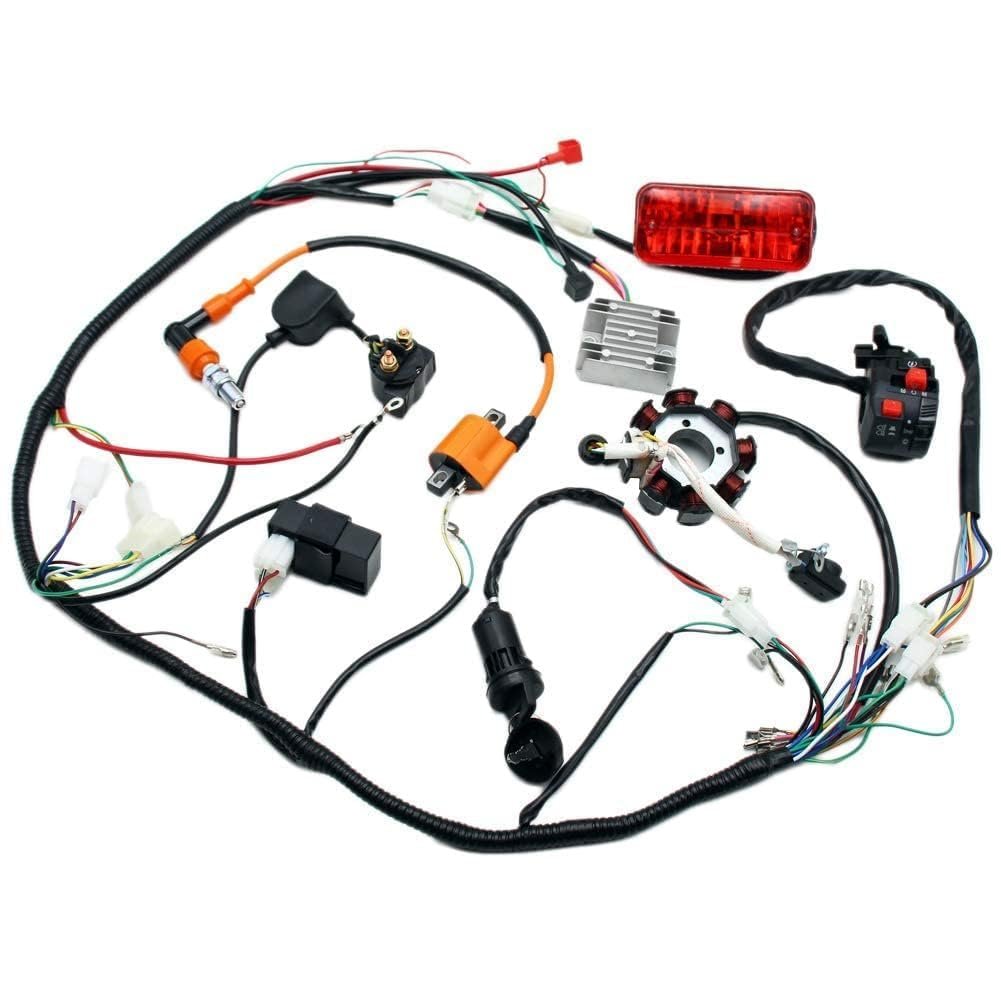

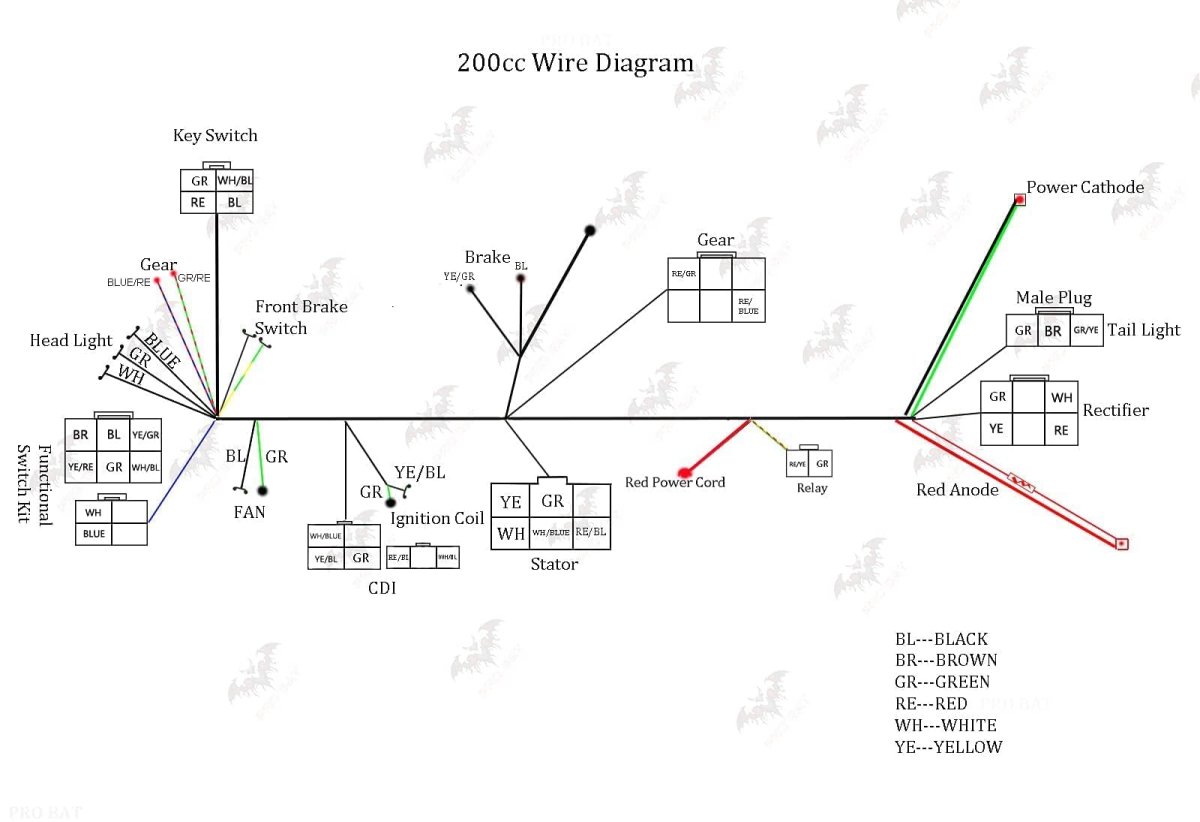

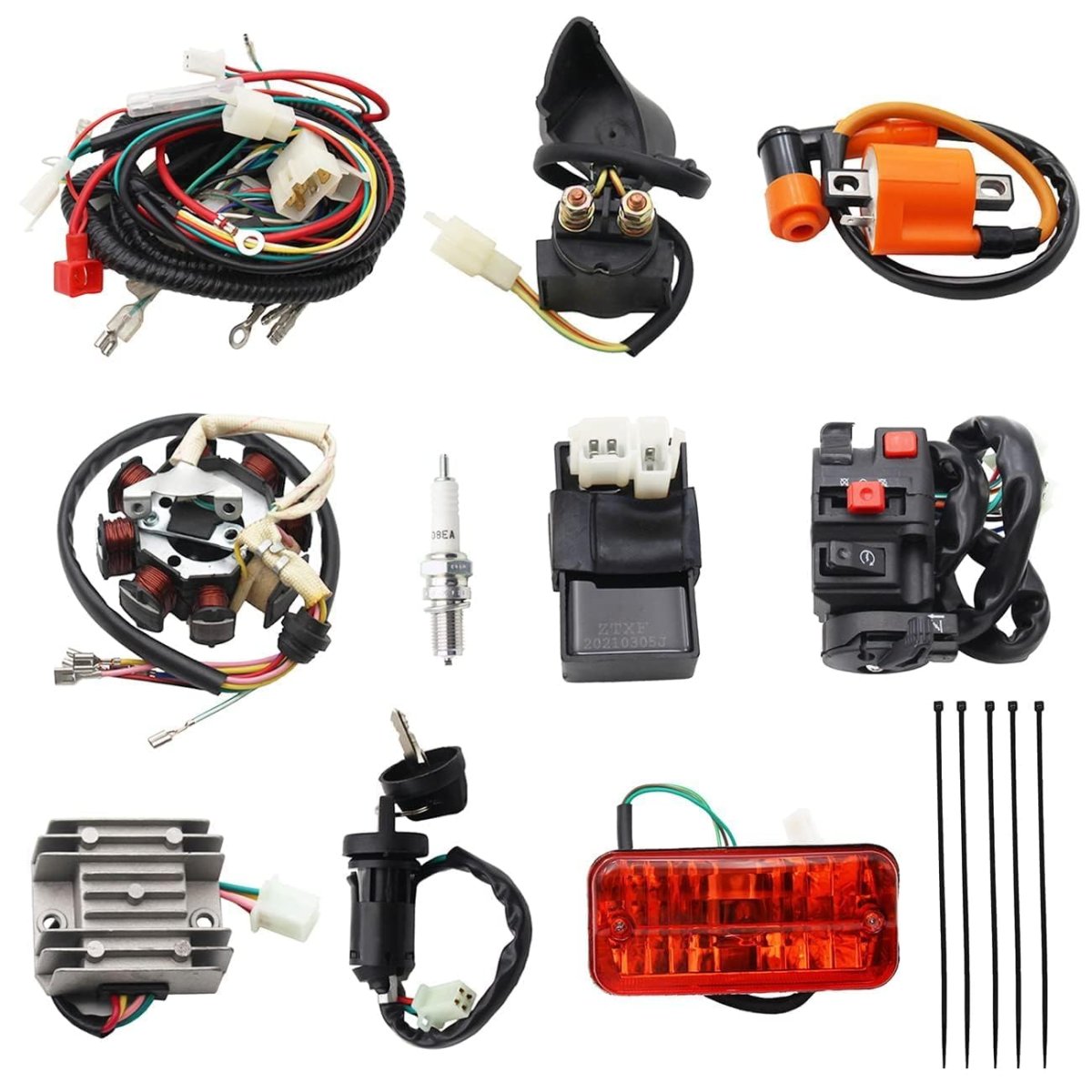

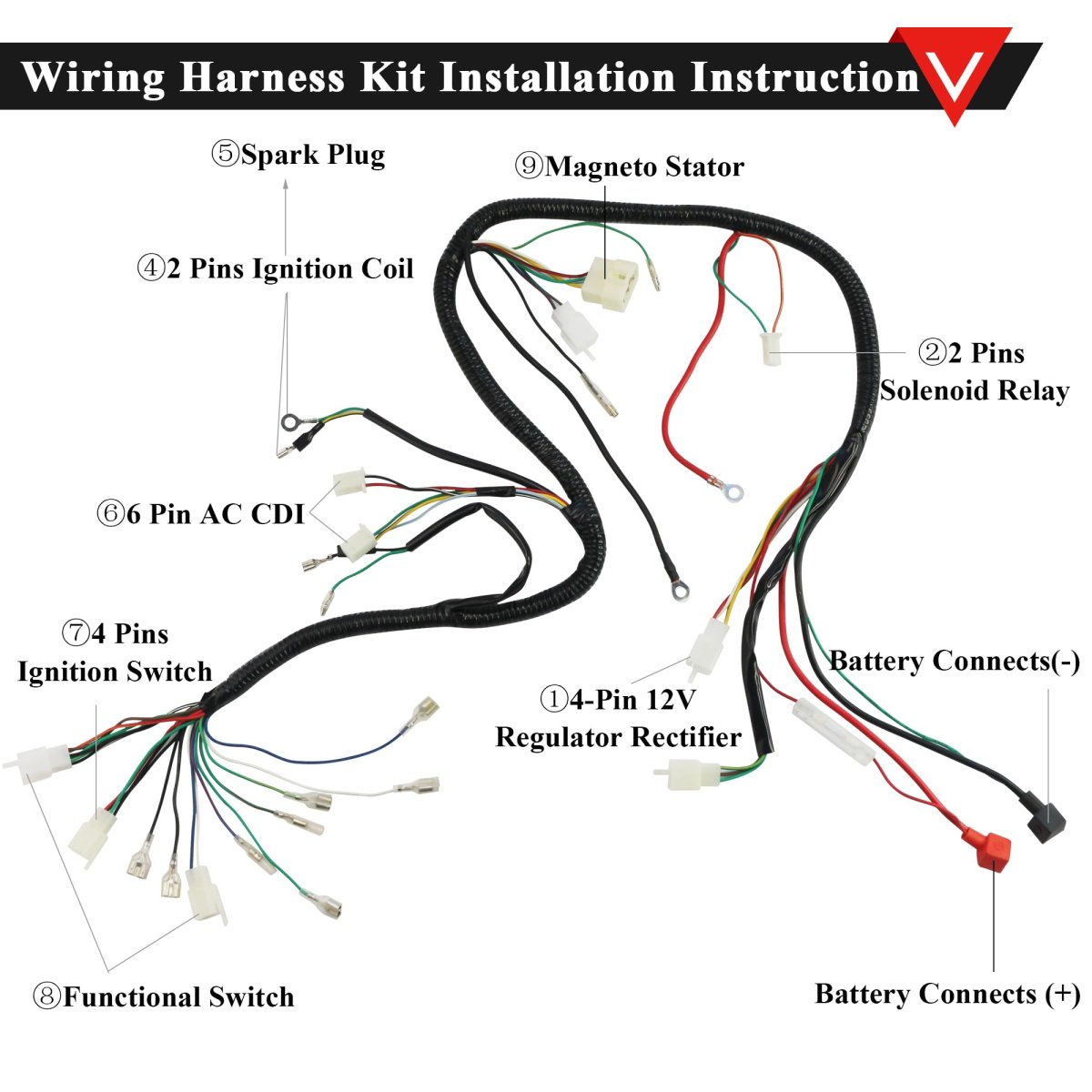

This complete electrics wire harness stator coil CDI solenoid relay D8EA spark plug tail light kit designed specifically for 200cc and 250cc electric 4-stroke engines, this wiring harness kit ensures complete electrical compatibility with 150cc 200cc 250cc 300cc ATVs quads and dirt bikes. 8 Coil Magneto Stator Plate Diameter Of Centre Hole Around 32mm/1.26'' , Distance Between Mounting Holes ( Centre Hole To Centre Hole ) Around 40mm/1.57''. Package included: 1 x 200cc wiring harness, 1 x CDI, 1 x D8EA spark plug, 1 x ignition coil with lead, 1 x solenoid relay, 1 x rectifier, 1 x ignition switch, 1 x multi-functional ATV switch, 1 x CG-8 stator, 1 x tail light, 1 x wiring diagram. NOTE: Comes with an easy to read wiring diagram.Professional installation is highly recommended. Better take it to a shop, as false assembly may cause trouble starting or even cause a fire on the harness, and we are not responsible for that. Maybe some plugs of the harness are different with your original parts , need you make a change , thanks.
