Description:

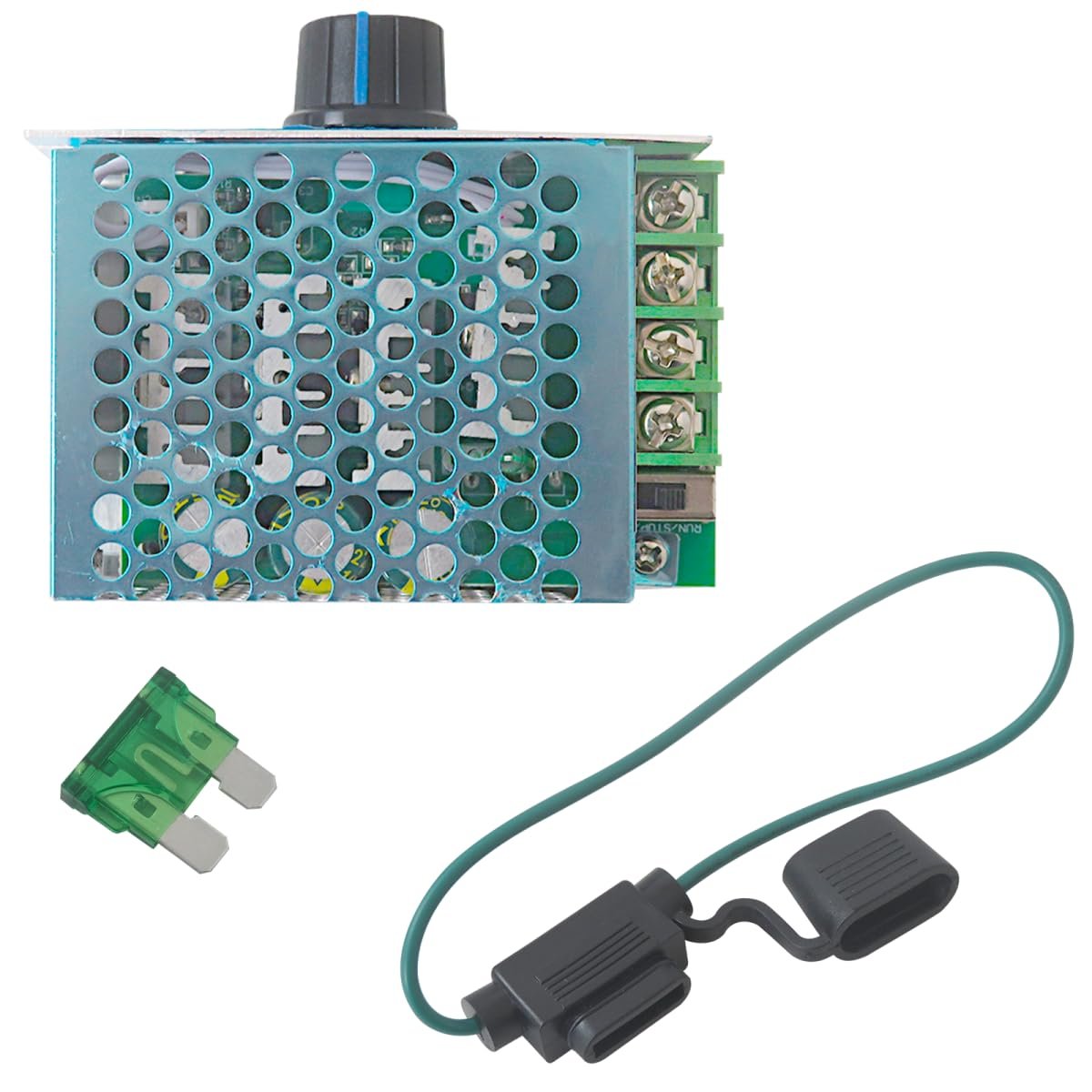

The PWM DC Motor Speed Controller provides precise control for DC brush motors with a wide voltage range from 7 to 70V and 30A capacity. This device ensures smooth speed regulation and stable operation without vibration or noise for various power systems.

• Voltage Range: DC 7 to 70V
• Maximum Current: 30A
• Output Power: 500W maximum
• Power Ratings: 250W at 12V, 350W at 24V, 450W at 48V, and 400W at 60V
• PWM Frequency: 12kHz
• Duty Cycle Adjustment: 1 percent to 100 percent

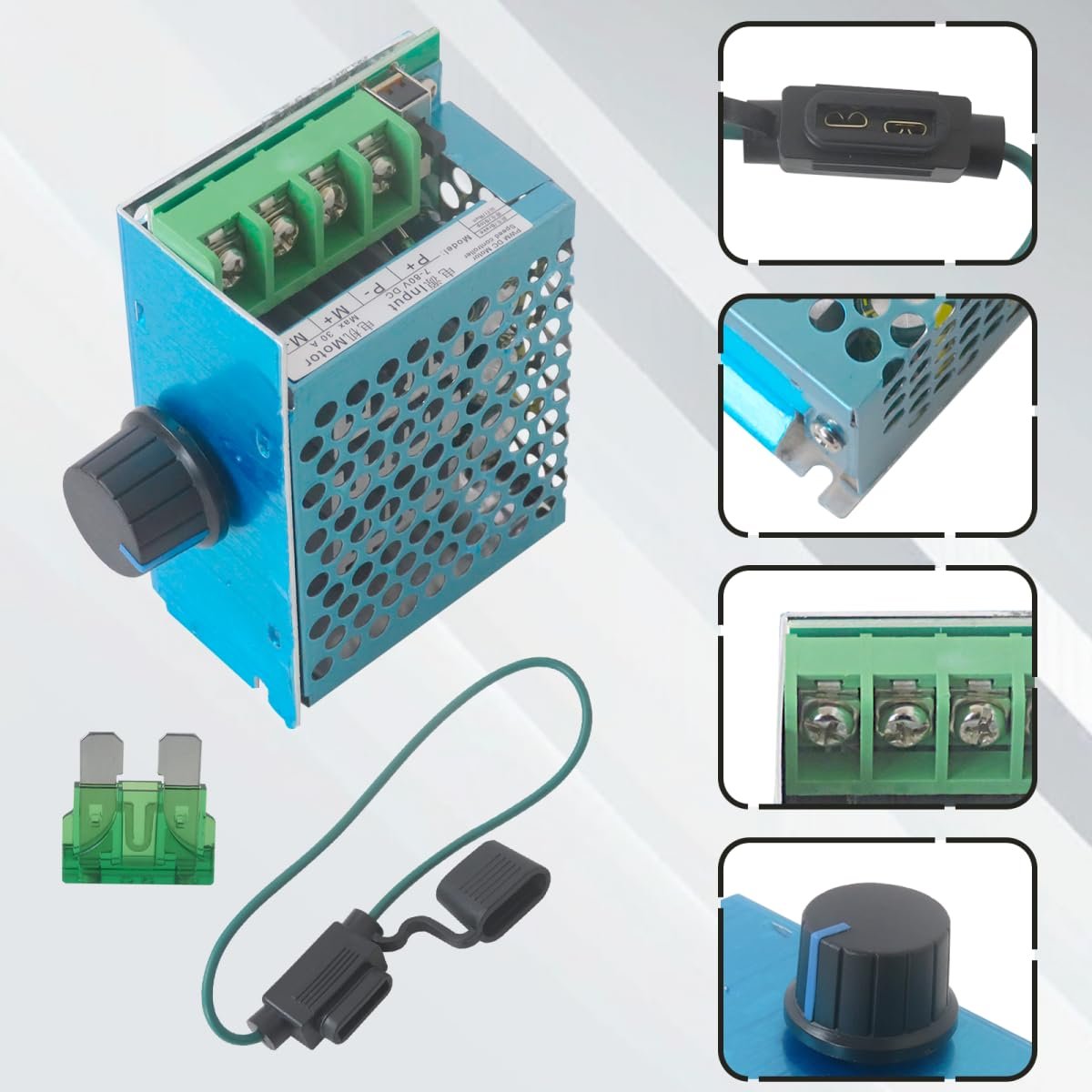

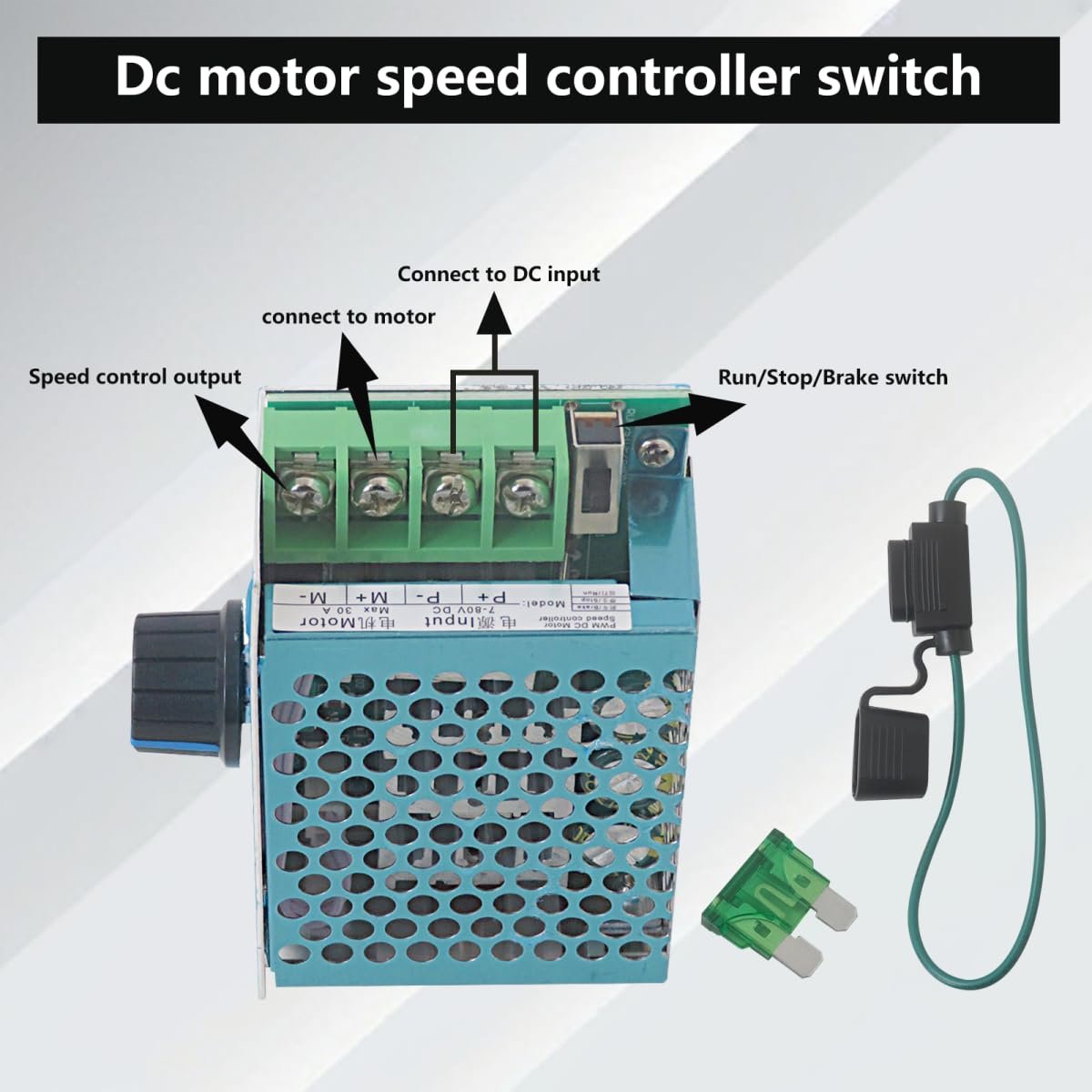

• Control Functions: Integrated run, stop, and brake functions
• Adjustment: Separate potentiometer for flexible speed control
• Installation: 15cm wire length
• Components: High voltage MOSFETs and 3 high voltage low impedance 100V rated capacitors

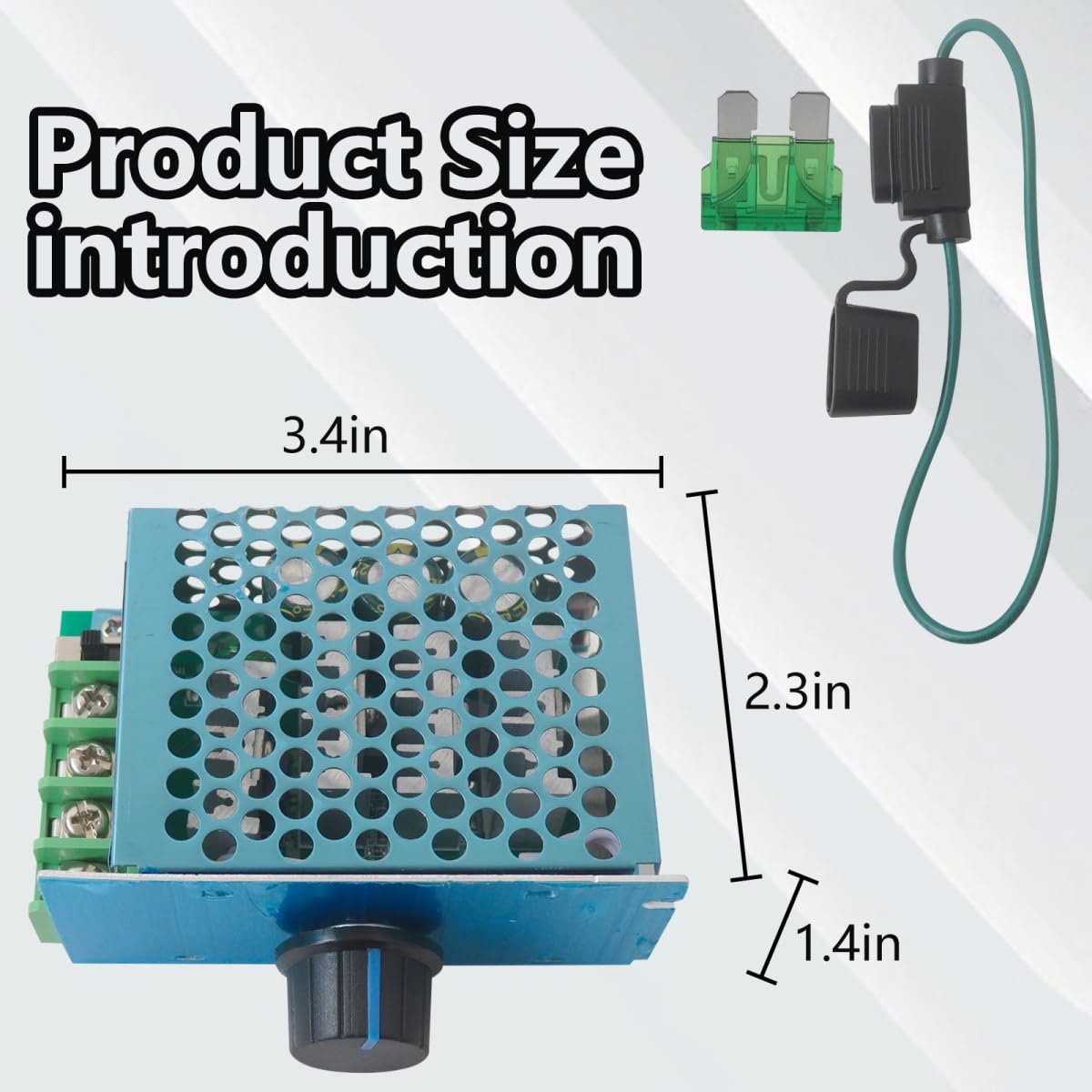

• Housing: Standard aluminum housing for circuit protection
• Performance: Low heat generation and optimized circuit design
