Description:

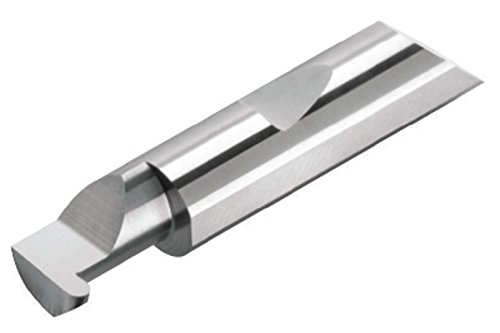

The QFR 059 12 Grooving Tool is a professional grade quick change boring bar designed for generating full radius grooves in bores 0.198 inches and larger. This tool maximizes productivity through reliable accuracy and locational repeatability.

• Material: Solid Carbide
• Width: 0.059 inches
• Projection: 0.100 inches
• Minimum Bore Diameter: 0.392 inches
• Maximum Bore Depth: 0.75 inches
• Offset: 0.1825 inches
• Shank Diameter: 0.375 inches
• Overall Length: 2 inches
• Coating: Uncoated
• Profile: Full radius profile
• Face Design: Polished split face for improved edge retention and chip evacuation while reducing galling
• Coolant Compatibility: Coolant fed enabled shank design
• Change System: Proprietary Micro Quik quick change system
