Description:

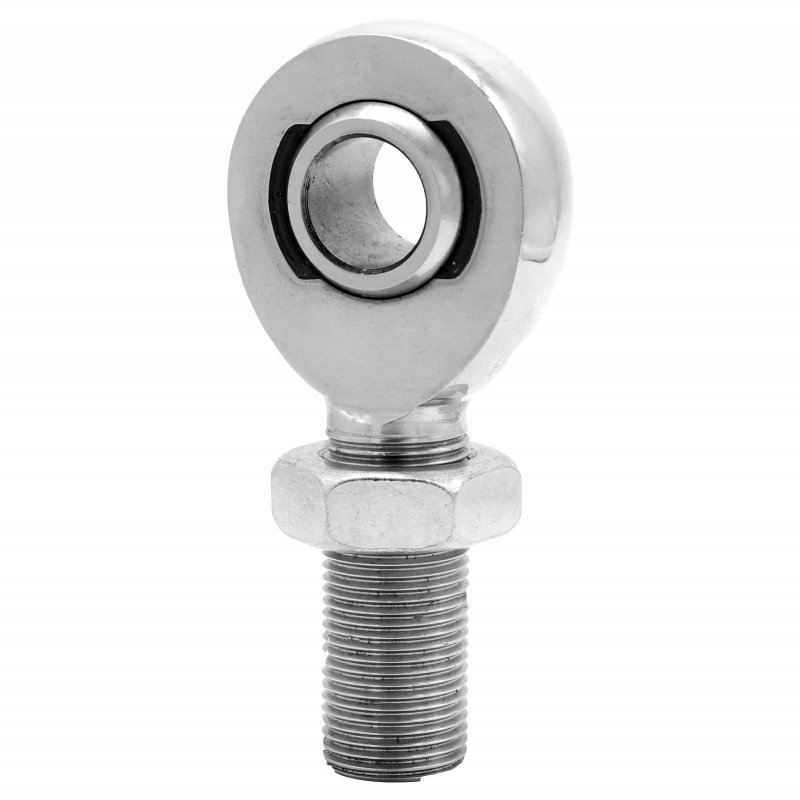

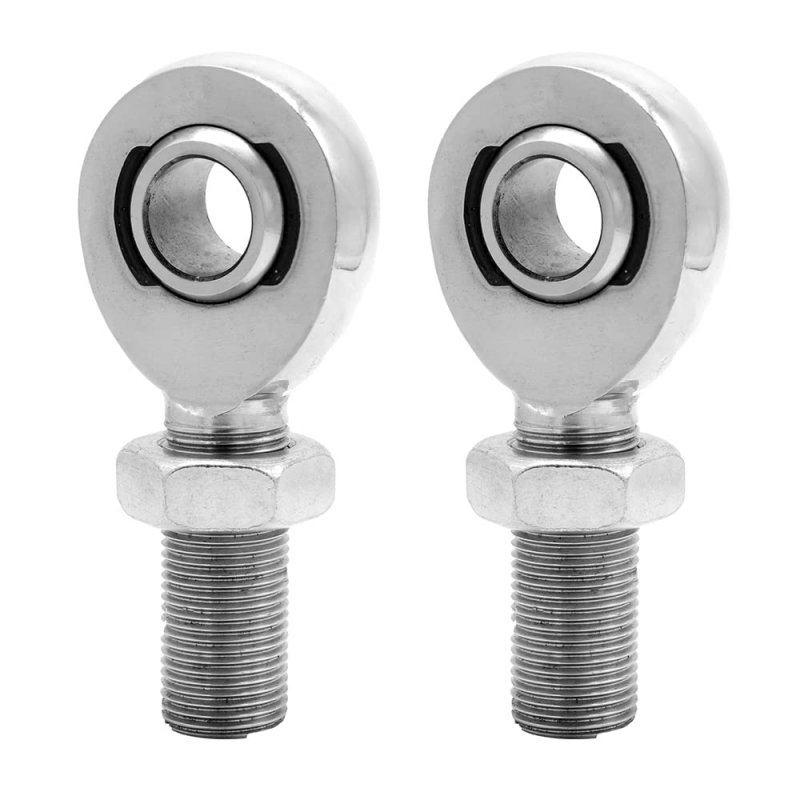

The Hex Autoparts 3/4-16x3/4 Bore RH and LH Chromoly Heim Joints provide high strength and consistent performance for mechanisms, linkages, and control rods.

• Package Contents 1 RH 3/4-16 Thread x 3/4 Bore Rod End, 1 LH 3/4-16 Thread x 3/4 Bore Rod End, 1 RH 3/4-16 Thread Jam Nut, and 1 LH 3/4-16 Thread Jam Nut
• Rod End Material Heat Treated Chromoly with Hard Chrome Plating
• Jam Nut Material Zinc Plated Carbon Steel
• Bore Size 3/4 inch
• Thread Size 3/4-16
• Thread Length 1.75 inches
• Ball Width 7/8 inch
• Width 1.75 inches
• Center Line Length 2.88 inches
• Static Radial Load 28081 lbs
• Jam Nut Width 1.125 inches
• Jam Nut Height 27/64 inch
• Features Loader slot design for easier mounting and position adjustment
