Description:

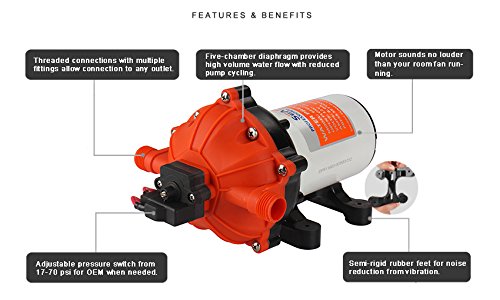

Product Description Features & Benefits Positive displacement pump Can run dry Quiet operation Demand Pump Easy connect fittings Industry standard mount pattern Built-in thermal protection Typical Applications Agricultural Spraying General Industrial Automotive Marine/RV WATER PUMP Type 5 chamber positive displacement diaphragm pump, self priming, capable of being run dry Mode Demand Liquid Temperature 140F (60C) Max. Priming Capabilities 6 feet (1. 8 m) suction lift Max Pressure 60 PSI (4. 1 bar) Inlet/Outlet Ports 1/2-14 MNPT Weight 7 lbs (3. 17 kg) MOTOR Duty Cycle Continuous Leads 16 AWG, 4. 5 long with/Leads 2-Pin connector Voltage 12v/24v Heavy-Duty automatic demand water system pump Built-in pressure switch automatically starts and stops pump when faucet is opened and closed Capable of supplying up to 5 fixtures! Self-priming so pump can be located in a location higher than the water tank Run-dry safe Built-in thermal protection Specifications VOLTAGE: 12 VDC DIMENSIONS: 8. 25" X 5. 30" X 6. 0" INLET/ OUTLET: 1/2" Threaded NPT (1/2" Barbed Hose Adaptors Also Included) FLOW RATE: 5. 5 GPM/ 20. 0 LPM AMPS: 8. 0 (17. 0 Max. Amps) SHUT-OFF PRESSURE: 50 PSI APPROVALS: CE RV AUTOMATIC DEMAND PUMP QUIET PERFORMANCE SELF PRIMING EASY INSTALLATION RUNS DRY WITHOUT DAMAGE BUILT-IN CHECK VALVE FITTINGS INCLUDED FOR 1/2 HOSE Applications -Yacht/RV/caravan pressurized water system -Sprayer fixtures (vehicle-mounted and electric sprayer) -Clean machine, humidifier, water purification and medical apparatus -Food beverage filling and liquid transfer -Any other pressurization system Model # SFDP1-055-060-51 Features: (1) Set of Instructions, (2) 1/2" Barbed Hose Adaptors, (1) 50 Mesh Inlet Strainer 5. 5 Gallons Per Minute (20. 0 LPM) capacity flow, and 60 PSI pressure Priming Capabilities: 6 feet (1. 8 m) suction lift, Inlet/Outlet Ports: 1/2-14 MNPT Typical Applications: Agricultural Spraying, General Industrial, Automotive Marine/RV Leads 16 AWG, 4. 5 long with/Leads 2-Pin connector, 5 chamber positive displacement diaphragm pump, self priming, capable of being run dry.
