Description:

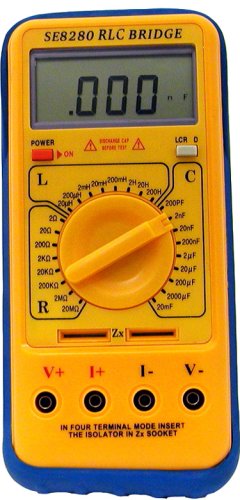

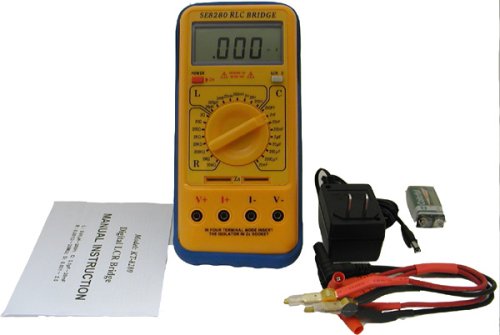

The SM8280 is a hand-held digital LCR bridge that measures capacitance, inductance, resistance, and dissipation factor. Its VECTOR MEASUREMENT technology separates the reactance from the resistance in the device under test, thereby enabling measurement of true L, C, R, and D parameters. The 4-wire measurement technique enables accurate measurement of both low and high impedances. This advanced, high-end meter will provide years of reliable operation. Specifications: 1. Capacitance: Cp (Parallel equivalent capacitance) 200p/2nF/20nF/200nF/2uF 0. 50%- 2. 0%, Cs (Series equivalent capacitance) 20uF/200nF/2000nF/20mF 0. 50%- 2. 0%, Capacitance Dissipation Factor: 01. 999, Accuracy: 1%+10+2000/Cx(2nF.
