Description:

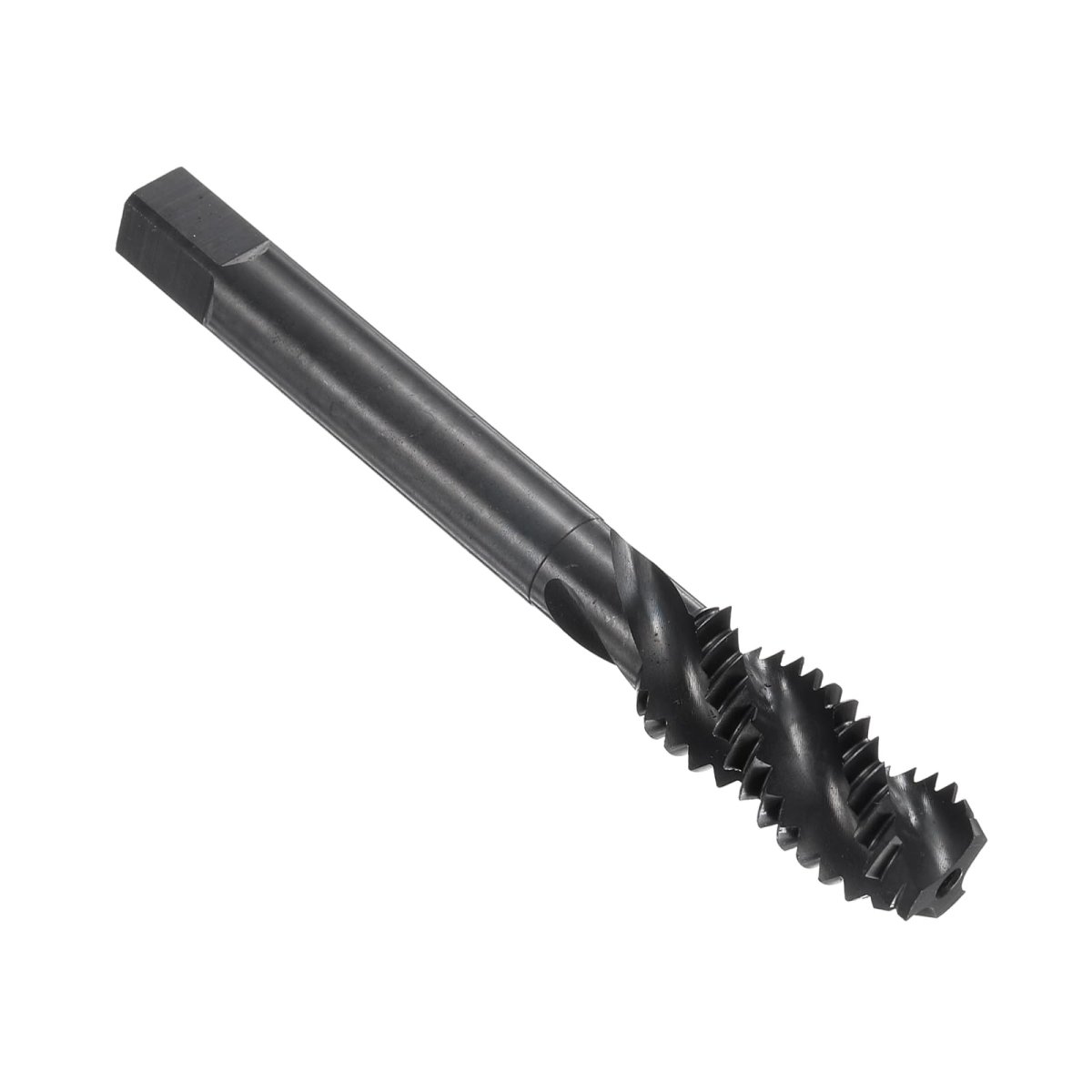

The Spiral Flute Thread Tap 7/16 14 UNC 2B is a professional machine threading tool designed for fast and accurate tapping in blind or deep holes. Made from M2 high speed steel with a nitrided coating, it ensures high hardness and efficient chip removal for a precise finish.

• Thread Size 7/16 14 UNC
• Tolerance 2B
• Material M2 High Speed Steel HSS6542
• Finish Nitrided Coated
• Cutting Direction Right Hand
• Thread Length 26mm or 1.02 inches
• Overall Length 80mm or 3.15 inches
• Square Shank Side Width 6mm or 0.24 inches
• Round Shank Diameter 8mm or 0.31 inches
• Design Spiral flute prevents breakage and reduces torque while guiding the tool into the hole
• Compatibility Suitable for stainless steel, aluminum, cast iron, alloy steel, ordinary steel, non ferrous metals, and hard plastics
• Machine Use Ideal for drilling machines, tapping machines, CNC machine tools, and milling machines
• Performance Nitrided surface improves corrosion resistance, reduces friction, and extends service life
• Application Tip Use with tapping oil for more precise threads and use a tap chuck with overload protection
• Usage Requirement Tapping angle should be 90 degrees vertical
