Description:

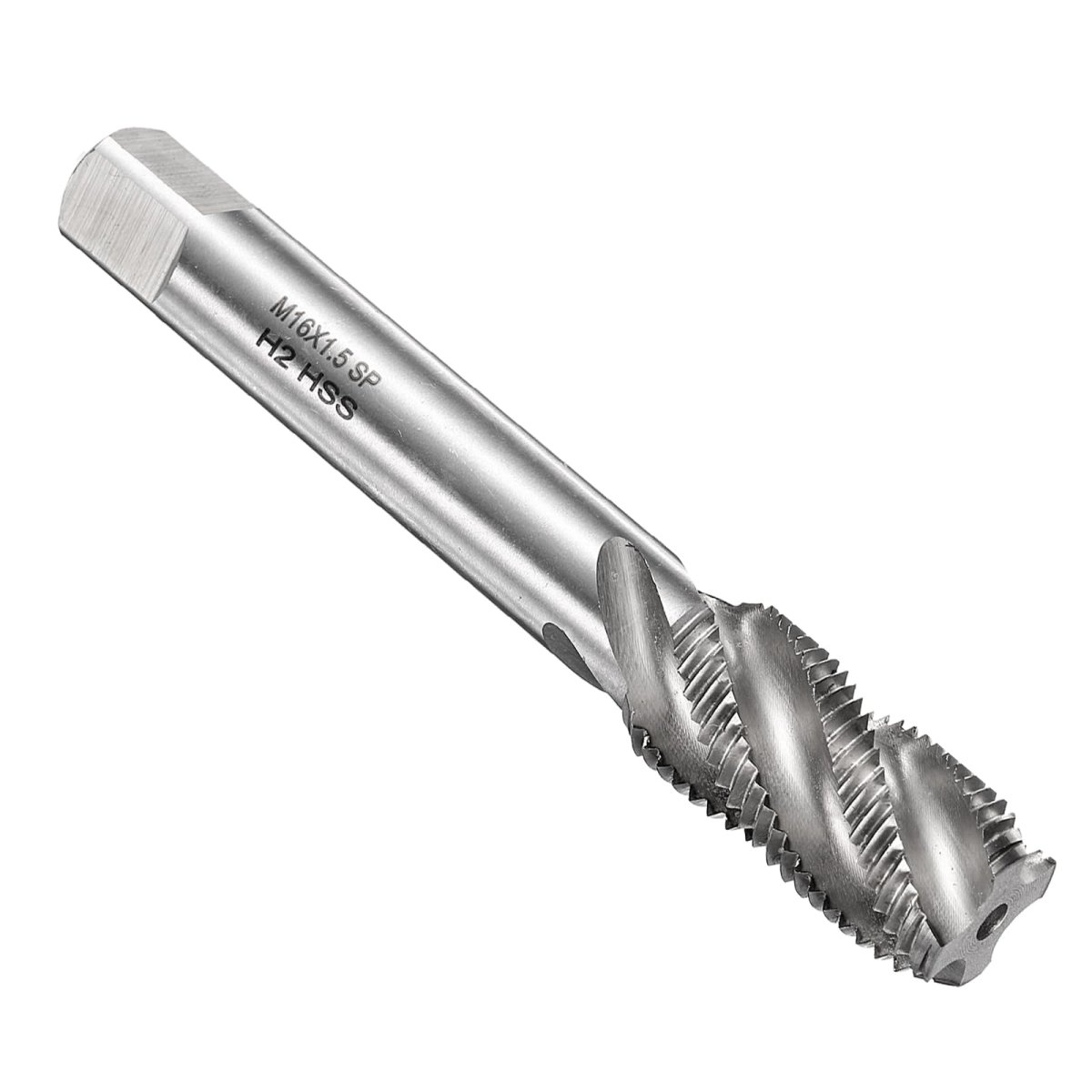

The Spiral Flute Thread Tap M16 x 1.5 H2 is a professional metric machine threading bit designed for fast and accurate tapping in blind or deep holes. Made from high speed steel, it provides clean threads and efficient chip removal to prevent breakage.

• Thread Size: M16 x 1.5
• Tolerance: H2
• Material: M2 High Speed Steel HSS6542
• Finish: Uncoated
• Cutting Direction: Right Hand
• Thread Length: 34mm 1.34 inches
• Overall Length: 102mm 4.02 inches
• Blade Length: 43mm 1.69 inches
• Round Shank Diameter: 12mm 0.47 inches
• Square Shank Side Width: 10mm 0.39 inches
• Spiral Flute Design: Reduces torque and removes debris efficiently to prevent tool breakage
• Applications: Suitable for stainless steel, aluminum, cast iron, alloy steel, ordinary steel, non ferrous metals, and hard plastics
• Compatible Machinery: Designed for drilling machines, tapping machines, CNC machine tools, and milling machines
• Performance: High hardness, toughness, and wear resistance for precise hole production
• Operational Tips: Use with tap chucks with overload protection and tapping oil for maximum durability. Tapping angle should be 90 degrees vertical. Not recommended for manual or electric drill use to avoid uneven force.
