Description:

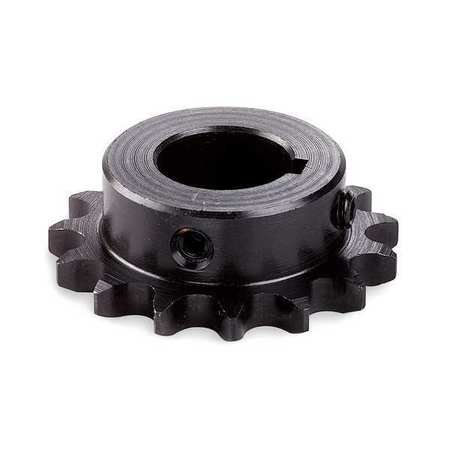

'Sprocket, OD 2. 230 Inches, Pitch Diameter 2. 041 Inches, Number of Teeth 17, ANSI #35, Steel, 3/8 Inch Pitch for 1 Inch Bore Size'Price For: Each For Use With: - Item: Single Strand Sprocket ANSI Sprocket Number: 35 Type: Fixed Bore Setscrew Location: Directly Over Keyway and 90 Degrees from Keyway ANSI Sprocket Number: 35 Outside Dia. (In. ): 2. 230 Pitch Dia. (In. ): 2. 041 Number of Teeth: 17 Bore Dia. (In. ): 1 Set Screw Dia. (In. ): 5/16 Keyseat Size (In. ): 1/4 x 1/8Includes: Standard Keyway and 2 Set Screws Country of Origin (subject to change): ChinaModel # 35B17F-1.
