Description:

This Stator Regulator Rectifier Flywheel kit provides a complete electrical charging system upgrade for compatible Arctic Cat ATVs to ensure reliable engine performance. It includes all necessary components for a full installation including the flywheel rotor and gasket.
Compatible Models

• Arctic Cat 375 2X4 4X4 2002 2003
• Arctic Cat 400 4X4 Auto 2003 2008

Included Components

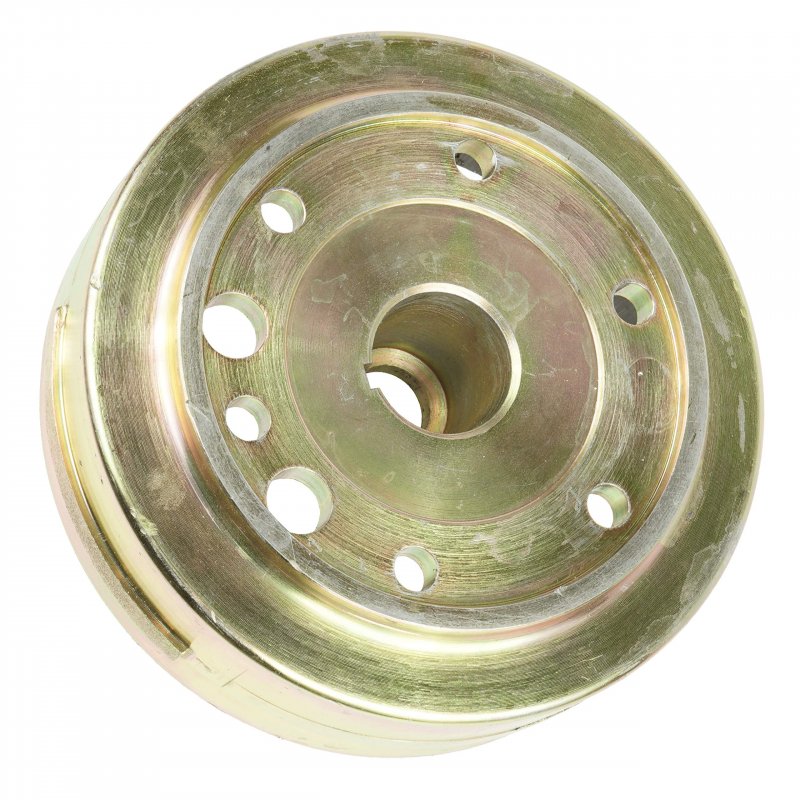

• 1 Flywheel Rotor
• 1 Stator
• 1 Regulator
• 1 Gasket

Technical Specifications

• Stator Material Iron Core and Copper Wire
• Stator Length 119 mm
• Stator Width 119 mm
• Stator Height 14 mm
• Flywheel Rotor Height 49 mm
• Flywheel Rotor Inner Diameter 50 mm
• Flywheel Rotor Outer Diameter 120 mm

Part Numbers

• Flywheel Rotor 3430 054, 3430 071
• Stator 3430 053
• Regulator 3530 059, 3530 028, 3402 682
• Gasket 3402 590, 0830 057
