Description:

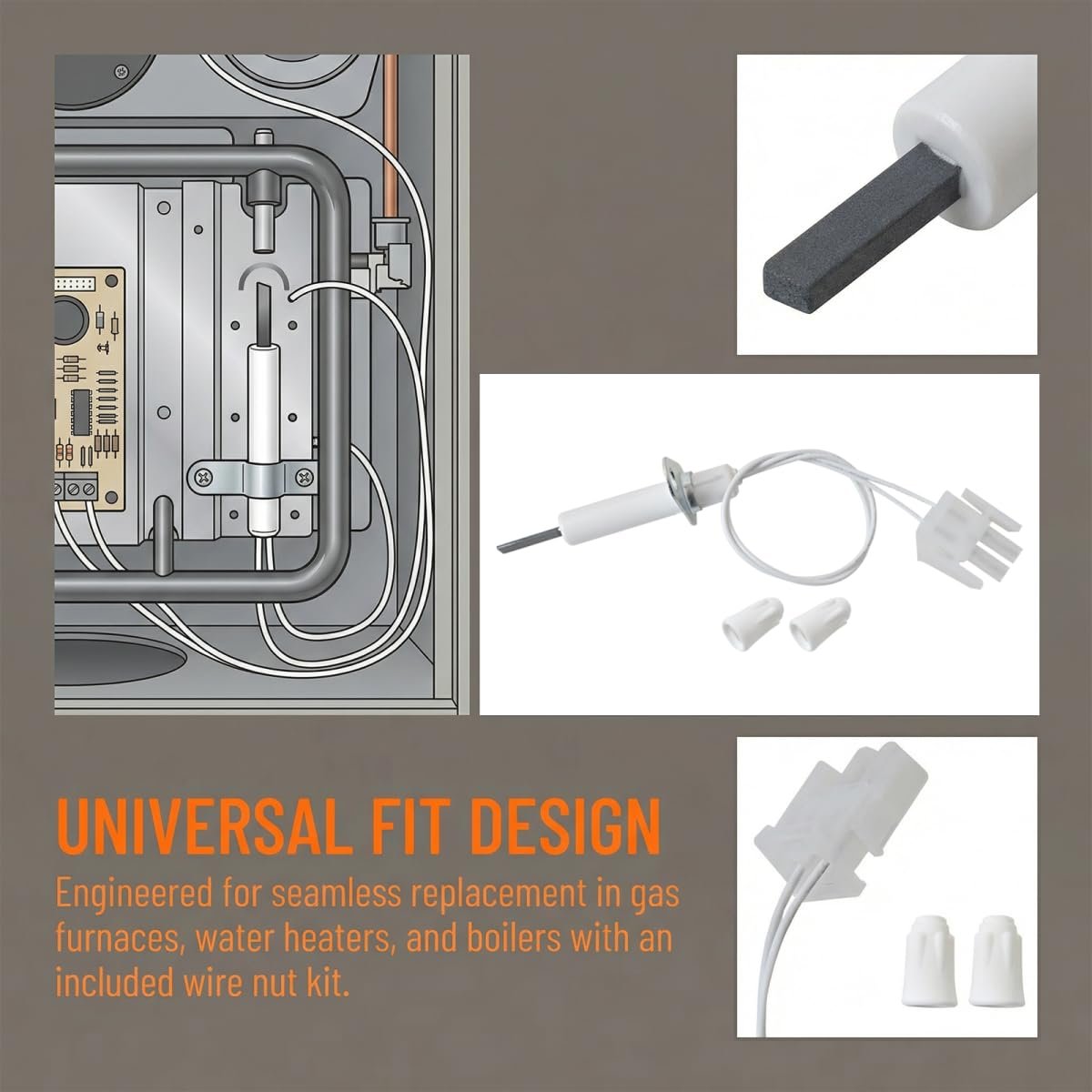

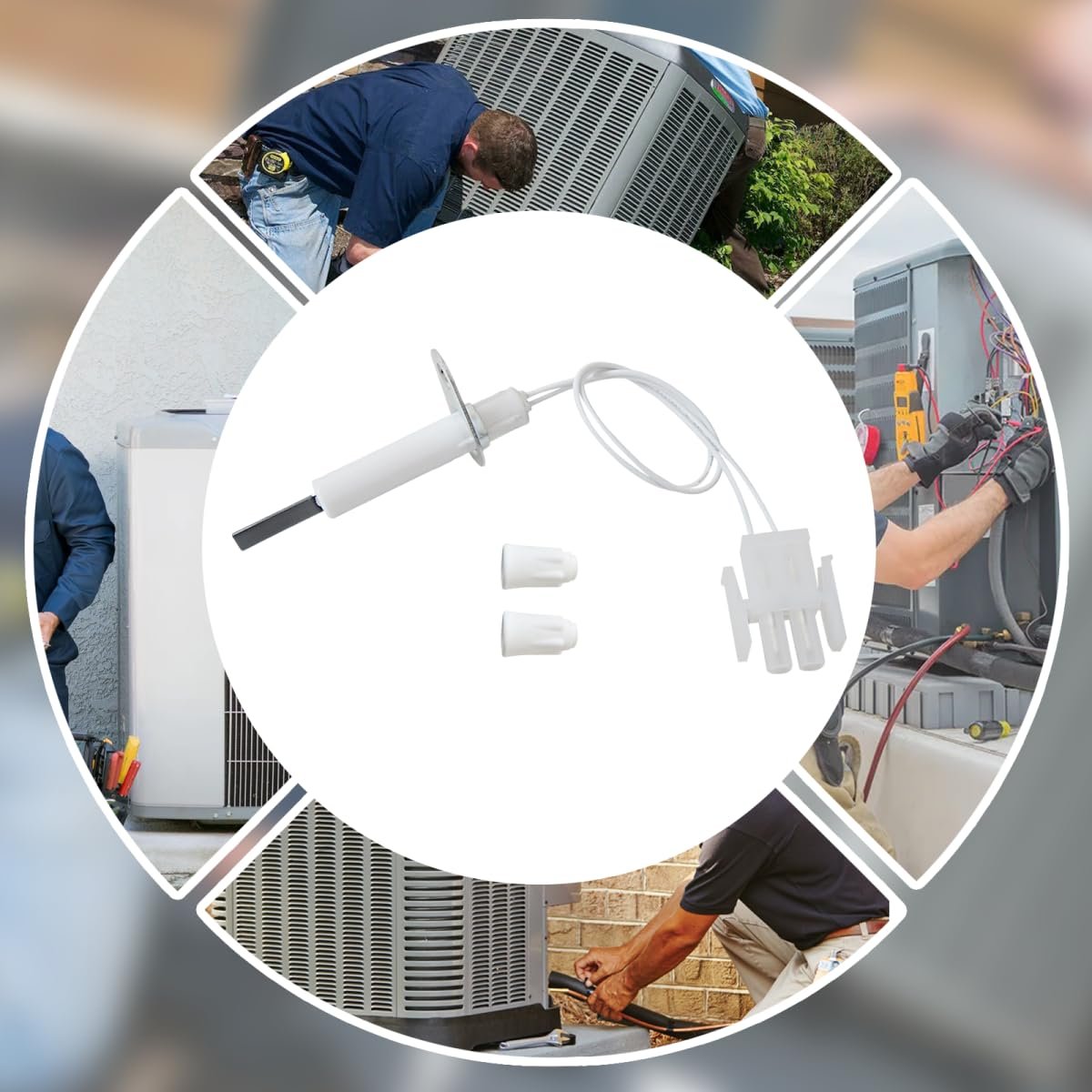

Surface Igniter Heater Furnace Ignitor compatible with Goodman, Amana, and Janitrol models. This replacement part solves common furnace issues such as misfires, cracked elements, and failure to glow for reliable heating performance.

• Compatible Brands: Goodman, Amana, Janitrol
• Replaces Part Numbers: 201657 03S, 20165703S, 20165703, 201657 03, AP4514330, AP4420263, 0130F00008S, 0230K00001, 601TB 1142, IGN02004, B1401015S, B1401018S, L41 802, 20165702, 20165702S, 594468, 201657035, 41602, 767A 378
• Compatible Models: GDT045 3, GDT045 3A, GDT070 3, GDT070 3A, GDT090 4, GDT090 4A, GDT115 5, GDT115 5A, GMN060 3, GMN080 4, GMN100 4, GMN120 5, GMNT040 3, GMNT060 3, GMNT080 4, GMNT100 4, GMNT120 5, GMP050 3, GMP075 3, GMP075 4, GMP100 3, GMP100 4, GMP100 5, GMP125 4, GMP125 5, GMP150 5
• Thermal Element: Nitride Heating Element
• Support Bracket: 304 Stainless Steel
• Insulator Material: Unglazed 95 percent Alumina Polished Ceramic
• Lead Wire: High Temperature PTFE coated with braided nylon for heat resistance
• Rated Voltage: AC 120V plus or minus 10 to 15 percent, 50 or 60HZ
• Cold Resistance: 18 to 40 ohm
• Rated Current at 17 seconds: 1.1 to 1.2 amps
• Voltage Range: 120v to 132v
• Operating Temperatures: 1100 degrees Celsius at 102V 17 seconds, 1180 degrees Celsius at 120 V 17 seconds, 1400 degrees Celsius at 132 V 17 seconds
• Installation: Plug and Play with spec lead size connector for quick mount
