Description:

Product Name : Float Switch;Max Contact Rating : Max Contact Rating;10W : 10W;Max Switching Voltage : 100V DC.
Max Switching Current : 0.5A;Max Breakdown Voltage : 220V DC;Max Carry Current : 1.0A;Max Contact Resistance : 100mohm.

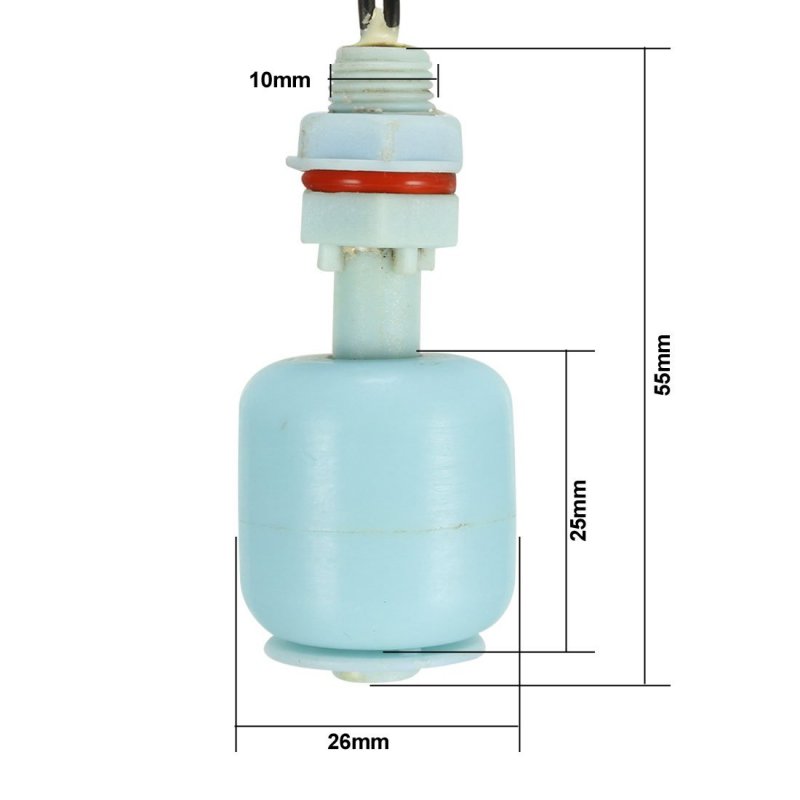

Temperature Rating : -10 ~ +60 C / +85 C;Float Ball Material : PP;Float Body Material : PP;Float Ball Size(Approx) : 25 x 26mm / 1" x 1"(L*D).
Thread Dia(Approx) : 10mm / 0.4";Hex Nut Diameter : 18mm / 0.7";Bottom Clip Dia(Approx) : 15mm / 0.6";Body Total Length : 55mm / 2.2".
Cable Length : 39cm / 15.4";Color : Blue, Black;Net Weight : 14g;Package Content : 1 x Float Switch.
