Description:

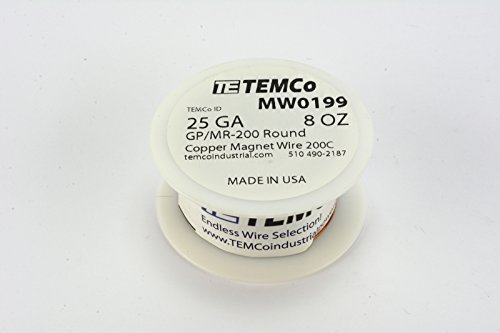

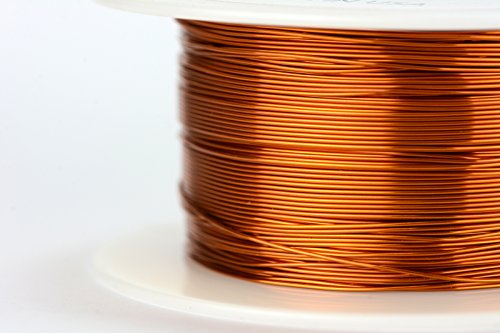

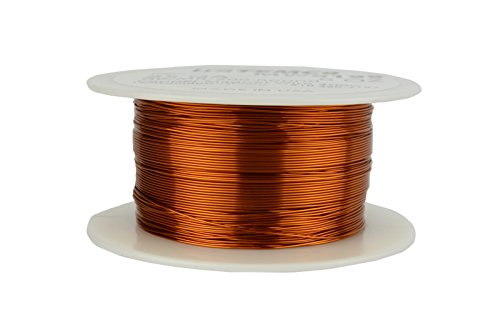

GP/MR-200 has a multi-purpose film insulation which includes a modified polyester basecoat and a polyamideimide topcoat. This combination provides moisture resistance, physical toughness, excellent dielectric properties, and superior chemical resistance to common solvents and refrigerants. Thermal properties of over 200C qualify it for severe thermal overload applications. Compared to nylon overcoated polyester, it is superior in regards to physical moisture, chemical, and thermal resistance. GP/MR-200 is suitable for many uses including: open motor, high moisture applications, and hermetic applications. / Volts @ room temp (typical):: 12200 / Volts @ room temp (required): 5700 / Volts @ rated temp (typical) 10300 / Volts @ rated temp (required): 4275 Features: Average Wire Diameter (in. ): 0. 0199 (with insulation), 0. 0179 (no insulation) Double (Heavy) Build enamel, Polyester base coat, Polyamideimide overcoat. Shape: Solid Round Copper (99. 9% pure). NOTE: Both ends of wire are accessible. Approvals: NEMA MW 35-C, IEC (60317-13, 60317-25, 60317-29), UL Recognized (File: E32638) Applications include but not limited to: Transformers, Motors, Inductors, Output Coils, Ham Radio Coils, Antennas, Generators, Tesla Coils, Solenoids, Electro-magnetics, Tattoo Machines, Hook-up Wiring, Twist Ties, Arts & Crafts.
